5.1.2 Channel Q Class
Fill your room with sound, bringing the movie theater experience into your home.
620 Watts Power
Room-filling audio sound will immerse you in your favorite movies, TV shows, and music, delivering powerful audio experience.
Dolby Atmos & DTS:X
Spatial sound from above and behind putting you in the center of movies, music, and games.
RayDanz Technology
Patented technology that dramatically widens the sound stage for an amazing acoustic experience.
Auto Room Calibration (AI Sonic)
Get optimal sound quality no matter where you are in the room with Auto Room Calibration.
Bluetooth
Stream all your favorite music and podcasts wirelessly from your Bluetooth® device.

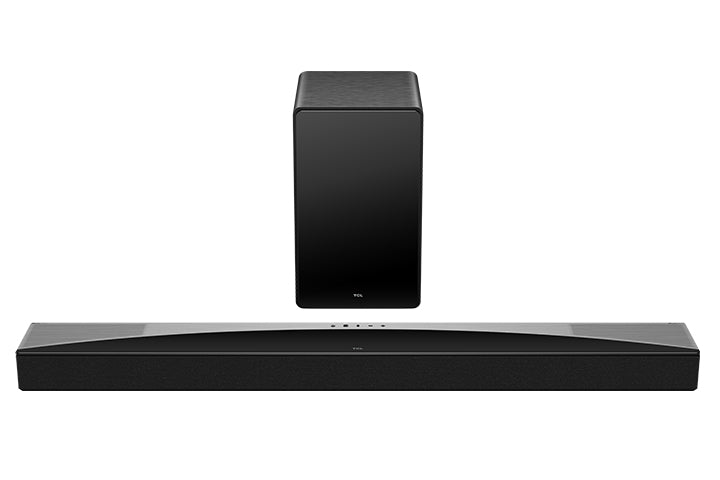

5.1.2 CHANNEL Q CLASS SOUND BAR
Fill your room with sound, bringing the movie theater experience into your home with just a single HDMI cable. It’s home theater, made simple.
DOLBY ATMOS AND DTS:X
Spatial sound from above and behind putting you in the center of movies, music, and games.
UP TO 620 WATTS TOTAL POWER
Room-filling audio sound will immerse you in your favorite movies, TV shows, and music, delivering powerful audio experience.
BLUETOOTH WIRELESS MUSIC STREAMING
Stream your favorite music wirelessly with Bluetooth connectivity that allows you to play your favorite songs from your smartphone, tablet, or other Bluetooth-enabled device.
RAY DANZ TECHNOLOGY WITH ACOUSTIC REFLECTORS
Patented technology that dramatically widens the sound stage for an amazing acoustic experience
BUILT-IN TWEETERS
Hear every detail of your favorite movies and music with the built-in tweeters that deliver precise, high-frequency sound to complement the powerful bass.
BUILT-IN CENTER CHANNEL
Enjoy clear dialogue even during action-packed scenes with the built-in center speaker that ensures voices are always heard with crystal-clear clarity.
SOUND BAR WITH UP-FIRING SPEAKERS
Up-Firing Speakers reflect audio off your ceiling to completely immerse you in movies, music, and games.
WIRELESS SUBWOOFER WITH 6.5” DRIVER AND BASS BOOST
Feel the bass with the wireless subwoofer featuring a 6.5” driver and Bass Boost technology providing deep, rich tones.
AI SONIC AUTO ROOM CALIBRATION
Get optimal sound quality with Auto Room Calibration powered by AI Sonic that tailors the sound to your unique space.
| Audio |
|---|
| Audio sample rate (24bit) |
48 kHz |
| Audio Return Channel (ARC) |
Yes |
| Enhanced Audio Return Channel (eARC) |
Yes |
| Equalizer |
Yes |
| Equalizer modes |
Game, Movie, Music, Sport, Standard, Voice |
| Audio decoders |
DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby MAT, Dolby Surround, Dolby TrueHD |
| RMS rated power |
780 W |
| Audio output channels |
5.1.2 channels |
| Soundbar speaker |
|---|
| Number of speakers |
7 |
| Soundbar speaker RMS power |
30 W |
| Subwoofer |
|---|
| Bass adjustment |
Yes |
| Woofer diameter (subwoofer) |
20.3 cm (8") |
| Subwoofer RMS power |
180 W |
| Subwoofer type |
Active subwoofer |
| Subwoofer connectivity |
Wireless |
| Subwoofer included |
Yes |
| Features |
|---|
| Wall mountable |
Yes |
| Detachable power cord |
Yes |
| Supported radio bands |
Not supported |
| Smartphone/tablet remote support |
Yes |
| Consumer Electronics Control (CEC) |
T-link |
| Supported video streaming resolutions |
4096 x 2160 |
| Audio formats supported |
AAC, MP3 |
| Apple AirPlay 2 support |
Yes |
| USB direct playback |
Yes |
| Built-in display |
Yes |
| FM radio |
No |
| Colour name |
Dark titanium |
| Product colour |
Titanium |
| Technical details |
|---|
| 3D |
Yes |
| Video formats supported |
Not supported |
| Warranty period |
2 year(s) |
| Ports & interfaces |
|---|
| AUX in |
No |
| Digital audio optical out |
1 |
| Compatible memory cards |
Not supported |
| Card reader integrated |
No |
| USB port |
Yes |
| HDMI version |
2.1 |
| Number of HDMI outputs |
1 |
| HDMI in |
2 |
| HDMI ports quantity |
3 |
| Ethernet LAN |
No |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Bluetooth codec |
SBC, AAC |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Connectivity technology |
Wired & Wireless |
| Power |
|---|
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
98 W |
| AC input frequency |
50 Hz |
| AC input voltage |
220 - 240 V |
| Weight & dimensions |
|---|
| Subwoofer weight |
7.5 kg |
| Subwoofer height |
24 cm |
| Subwoofer depth |
36.5 cm |
| Subwoofer width |
42 cm |
| Soundbar weight |
4.4 kg |
| Height |
58 mm |
| Depth |
110 mm |
| Width |
1040 mm |
| Packaging data |
|---|
| Package weight |
15.1 kg |
| Package height |
540 mm |
| Package depth |
280 mm |
| Package width |
1195 mm |
| Packaging content |
|---|
| Batteries included |
Yes |
| Remote control included |
Yes |
| Cables included |
AC, HDMI |
| Wall mounting kit |
Yes |
| Logistics data |
|---|
| Quantity per truck |
24 pc(s) |
| Other features |
|---|
| Digital Living Network Alliance (DLNA) certified |
No |
| Optical disc player type |
Not included |
