SKU: MG09SCA18TE

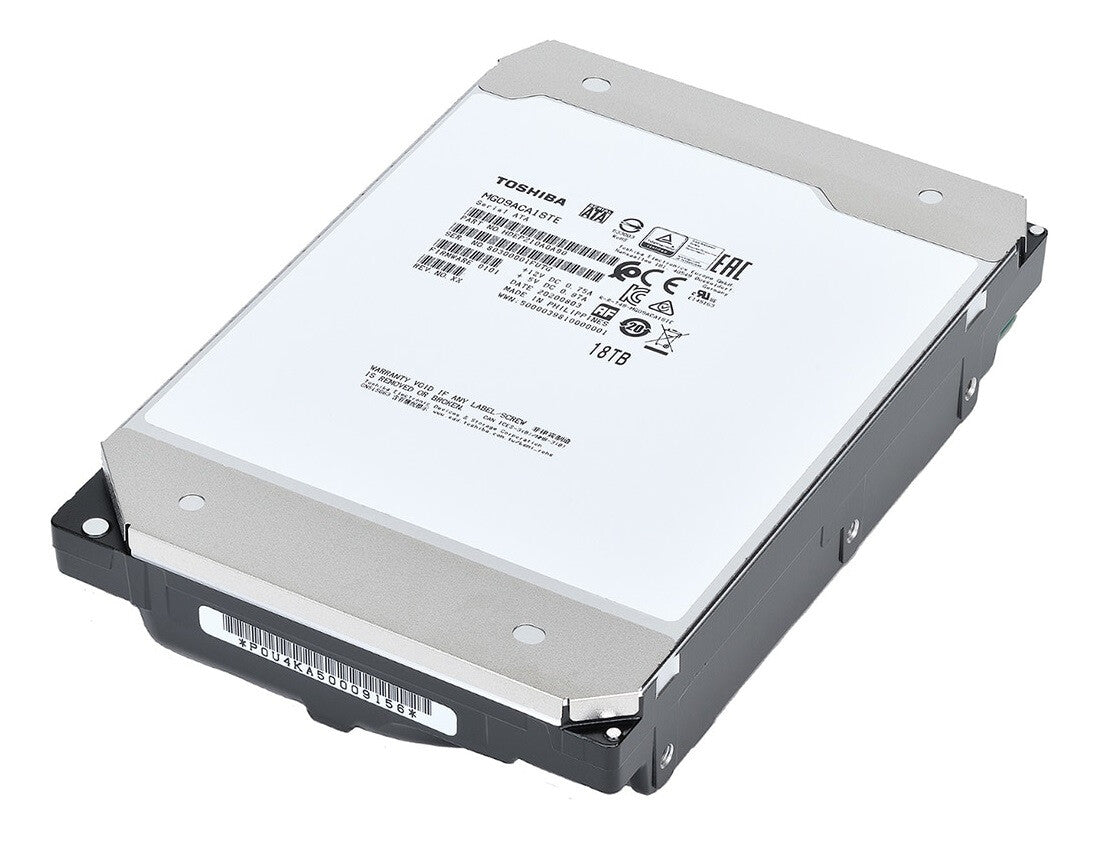

Toshiba MG09 internal hard drive 18 TB 7200 RPM 512 MB 3.5" SAS

Toshiba
£323.59
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
  • Industry-leading 9-disk helium-sealed design for superior storage density
  • Industry Standard 3.5-inch 26.1mm height Form Factor
  • 7200rpm Performance
  • Choice of SATA 6.0Gbit/s and 12.0Gbit/s SAS Interfaces
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Sustained transfer rate and power efficiency improvements vs. prior MG Series generations
  • Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of 18TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 18TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.

Features
Mean time to failure (MTTF) 2500000 h
Noise level (idle) 20 dB
Workload rate limit 550 TB/year
Start/stop cycles 600000
24/7 operation Yes
HDD sustained transfer rate 268 MiB/s
HDD interface transfer rate 12 Gbit/s
Storage drive buffer size 512 MB
Hot-swap No
Component for NAS
Type HDD
Interface SAS
HDD size 3.5"
HDD speed 7200 RPM
HDD capacity 18 TB
Power
Operating voltage 5 / 12 V
Power consumption (idle) 4.54 W
Power consumption (typical) 8.74 W
Operational conditions
Non-operating shock 250 G
Operating shock 70 G
Non-operating altitude -305 - 12192 m
Operating altitude -305 - 3048 m
Non-operating vibration 3 G
Operating vibration 0.75 G
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 5 - 55 °C
Weight & dimensions
Weight 720 g
Height 26.1 mm
Depth 147 mm
Width 101.8 mm
Packaging data
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84717050
