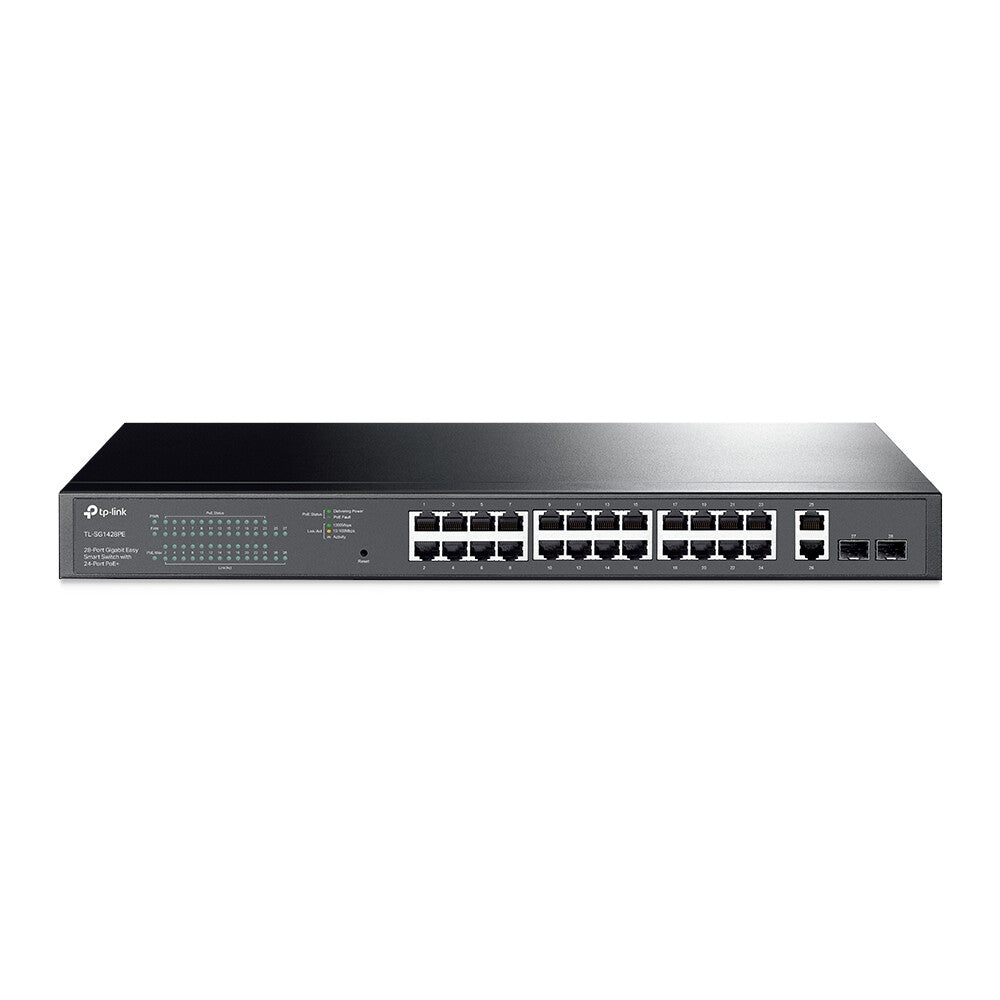

TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

SKU: TL-SG1428PE
£196.70 inc. VAT
  • 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
  • PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems
  • Priority Mode helps to guarantee the quality of sensitive application like video monitoring
  • PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
  • Intelligent power management can protect the switch from overload

Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

Multiple Application Scenarios

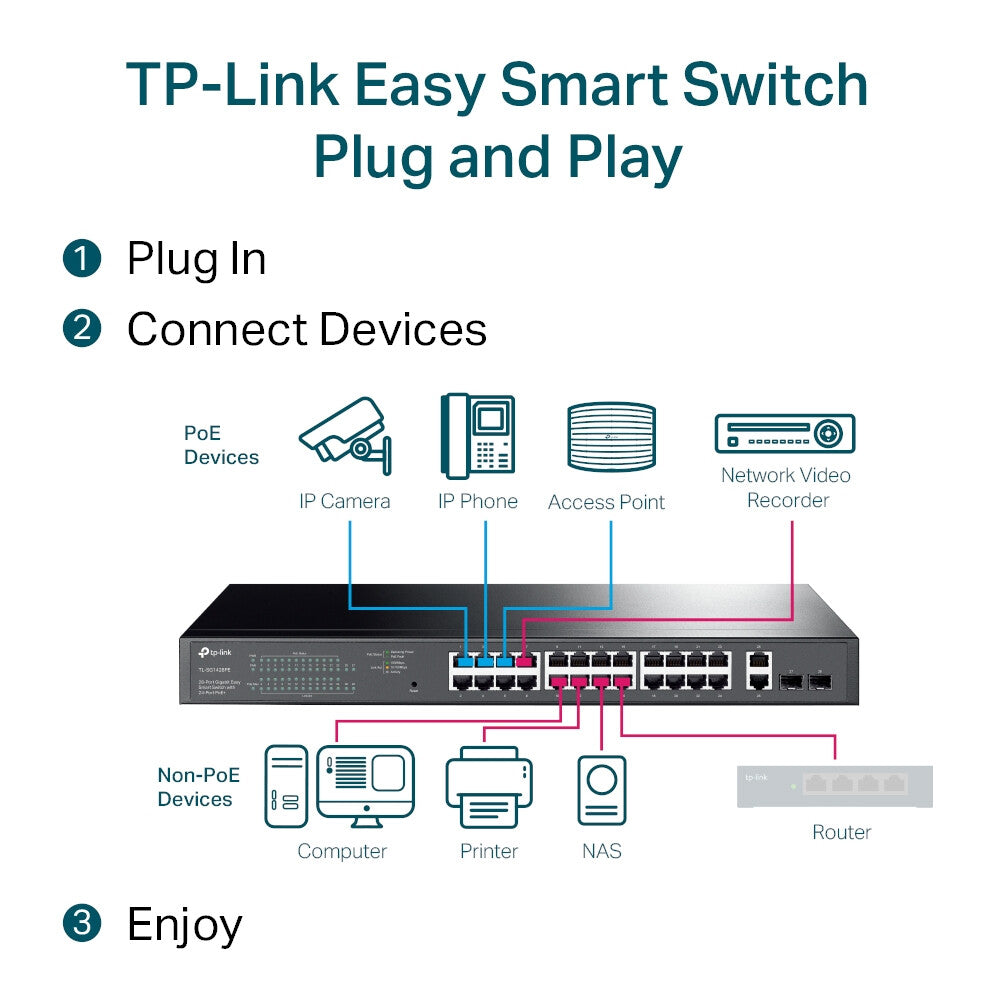

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Easy to Use

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.

Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple Factors Guarantee Stable Operation

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

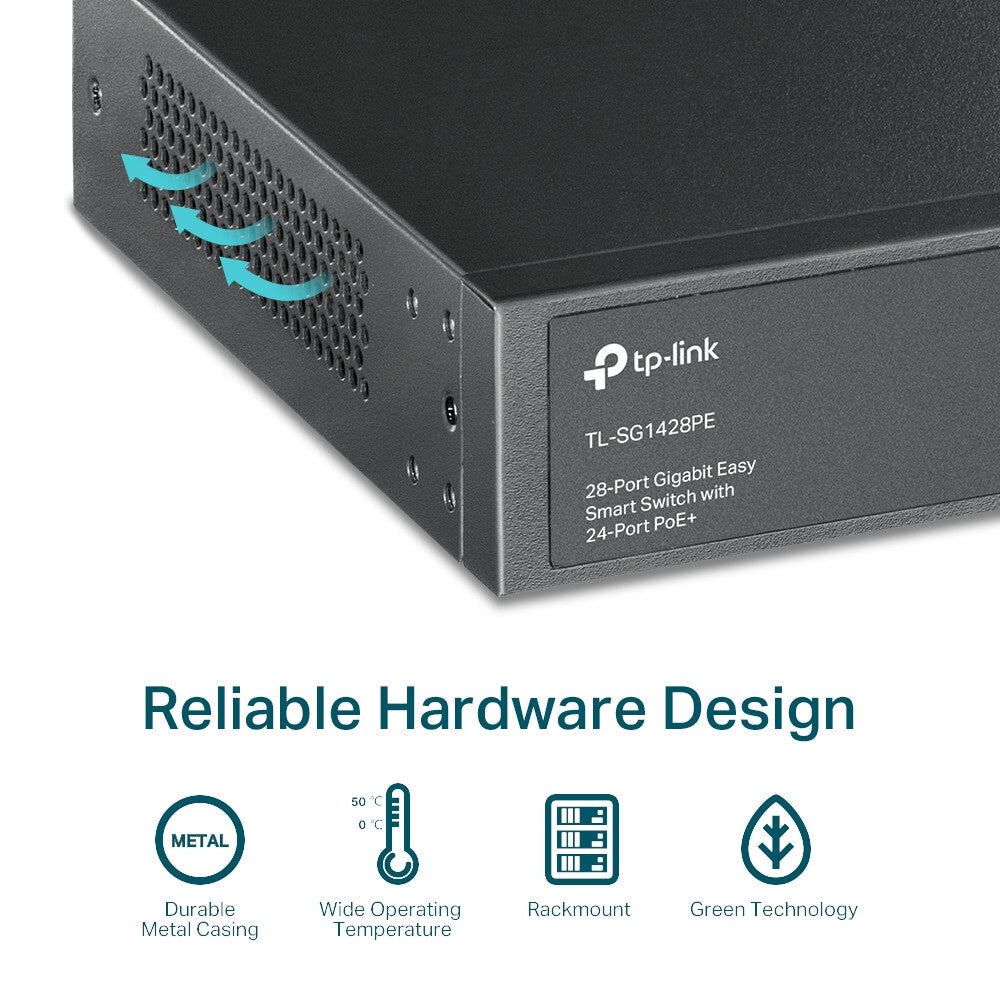

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
SFP module slots quantity 2
Gigabit Ethernet (copper) ports quantity 26
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 26
Network
Number of VLANs 32
Virtual LAN features Port-based VLAN, Tagged VLAN
VLAN support Yes
Auto MDI/MDI-X Yes
Rate limiting Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Auto-negotiation Yes
Port mirroring Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
10G support No
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Optical fiber
Fiber ethernet cabling technology 1000BASE-X
Data transmission
Packet buffer memory 4.1 MB
Jumbo frames 10000
Jumbo frames support Yes
Number of queues 4
Store-and-forward Yes
Forwarding rate 41.7 Mpps
Switching capacity 56 Gbit/s
MAC address table 8000 entries
Security
Security algorithms SNMP, SNMPv2, SNMPv3
IGMP snooping Yes
Multicast features
Multicast support Yes
Design
Number of fans 2 fan(s)
Product colour Black
Form factor 1U
Rack mounting Yes
Power
Power consumption (max) 1039.03 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 250 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Height 44 mm
Depth 220 mm
Width 440 mm
Packaging content
User guide Yes
Rack mount kit Yes
Cables included AC
Packaging data
Package weight 3.94 kg
Package height 100 mm
Package depth 528 mm
Package width 336 mm
Certificates
Certification CE, FCC, RoHS
Logistics data
Harmonized System (HS) code 85176990
