Fast, Everyday Wi-Fi

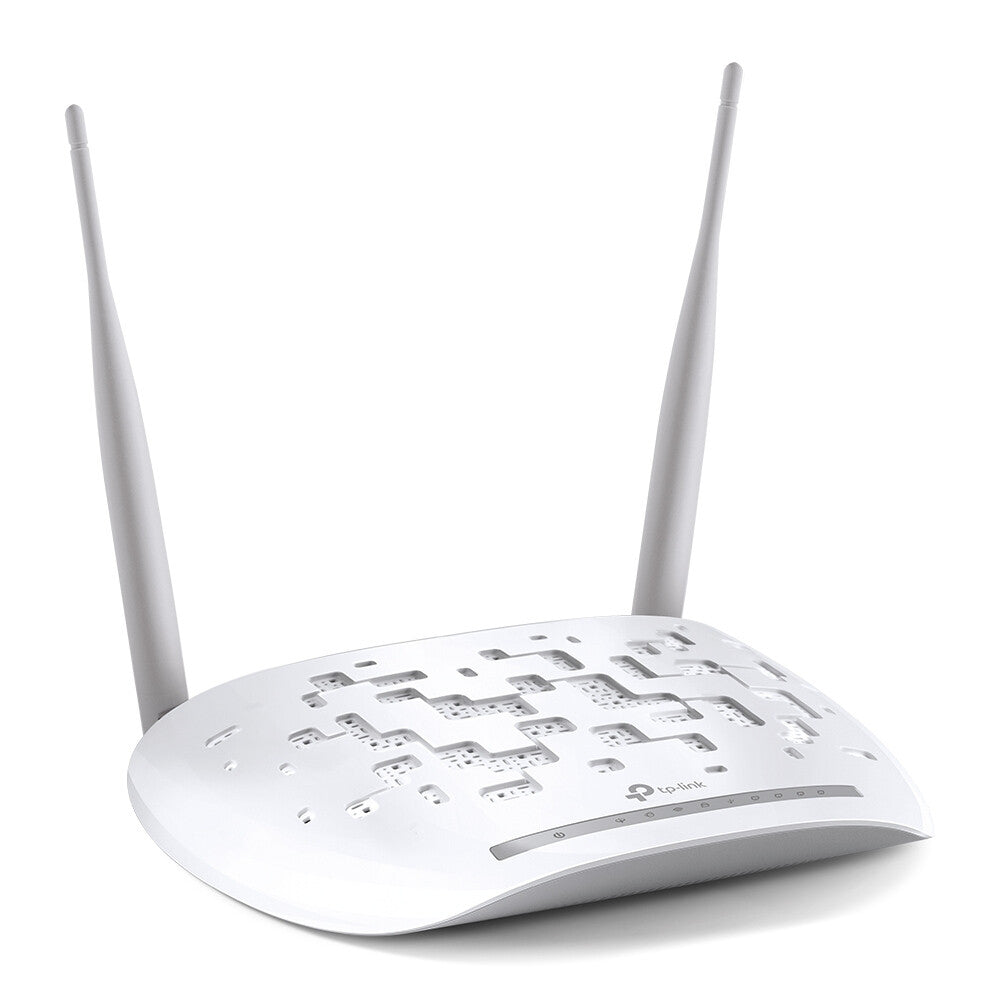

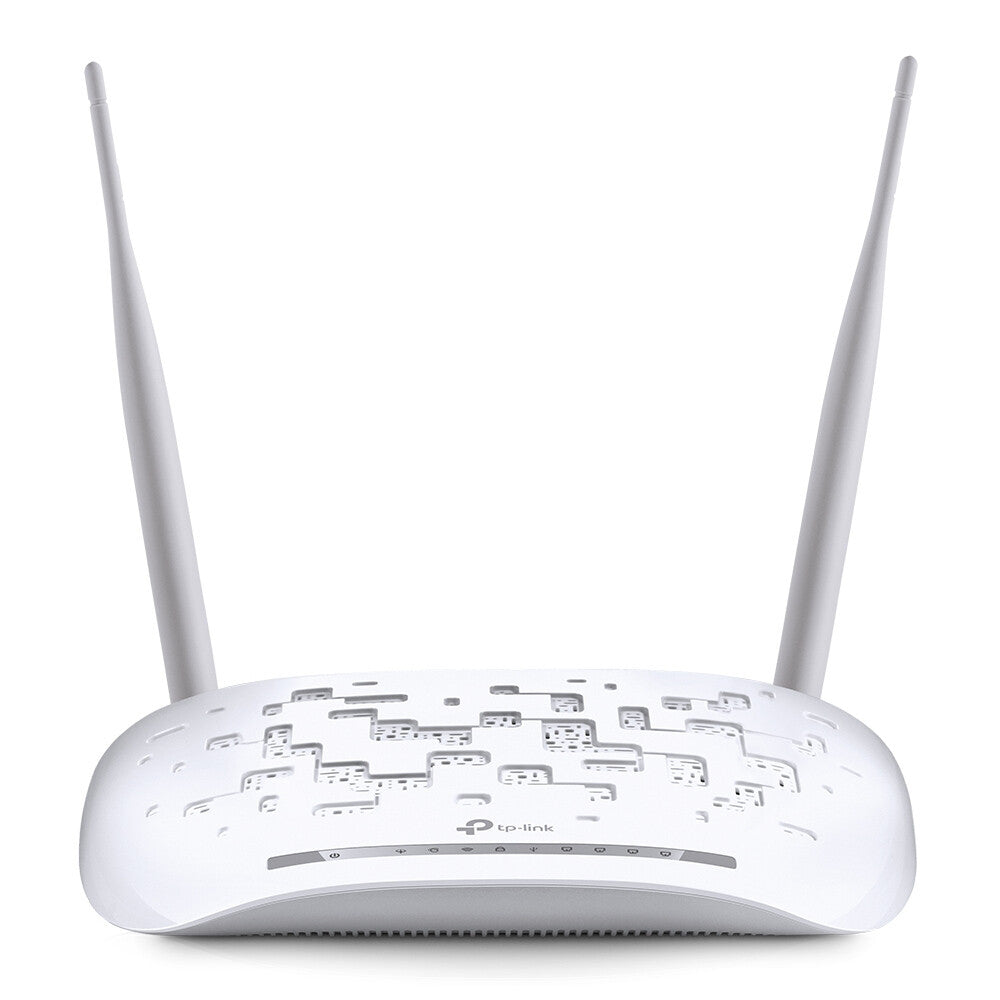

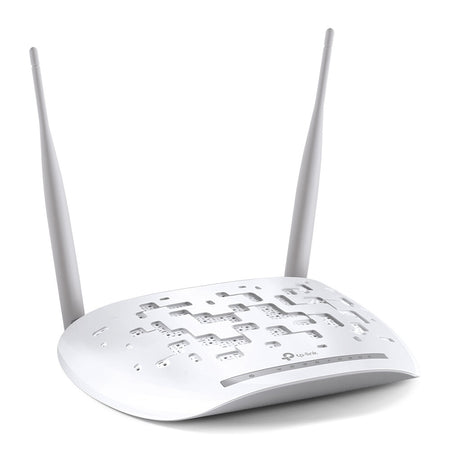

300Mbps Wireless N USB VDSL/ADSL Modem Router

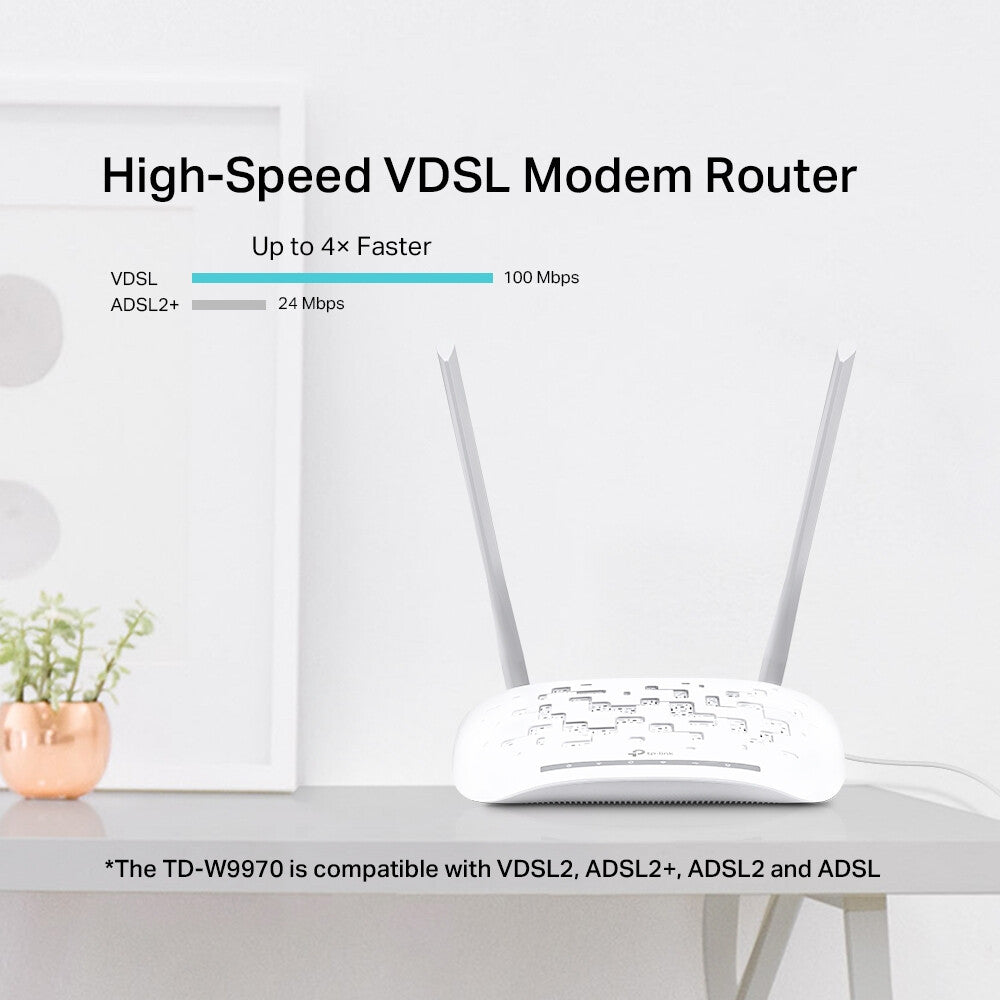

High-Speed VDSL Modem Router
The latest VDSL2 technology allows the TD-W9970 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost 4 times faster than ADSL2+. The integrated DSL port supports all standard DSL connections* for compatibility with most ISPs. The TD-W9970 serves as a DSL modem and wireless router, combining two devices in one.
Wi-Fi Speed Up to 300 Mbps
With 300 Mbps wireless speeds on the 2.4 GHz band and 4 megabit LAN ports, the TD-W9970 is perfect for streaming in HD, online gaming and other bandwidth-intensive applications.

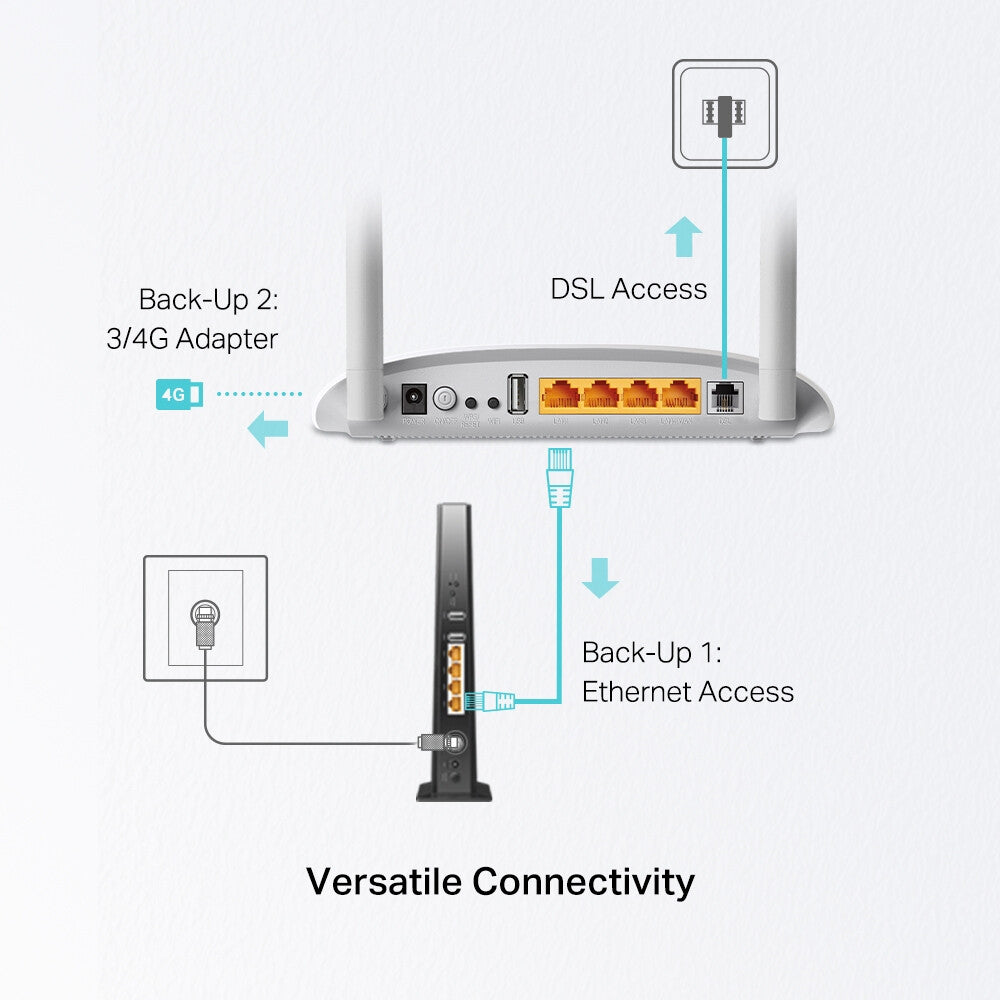

Versatile Connectivity
The TD-W9970 is built to connect you to the internet, no matter your situation. The Ethernet WAN port supports wired connection to cable or fiber modem, letting you take full charge of its wireless capabilities as a router. In case your internet goes down, attach a 3/4G adapter to USB 3.0 port to serve as a backup option so you can get back online in no time.
Easy Setup and Management
Set up the TD-W9970 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

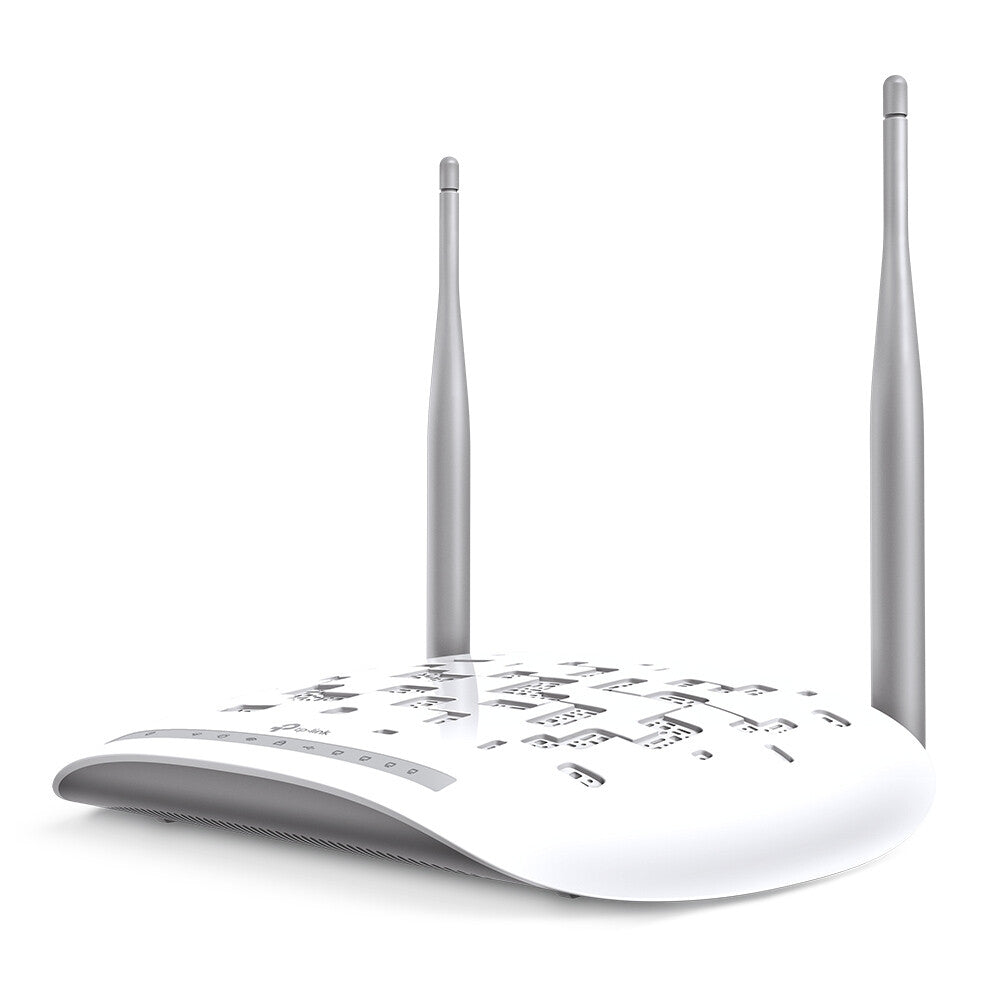

Powerful Antennas
Two external 4dBi high-gain antennas beam signal to every corner of your home, creating a strong, stable Wi-Fi network.
6kV Lightning Protection
Lightning protection shields TD-W9970 from electrical damage caused by thunderstorms, so even in bad weather, you can enjoy internet with peace of mind.
Secure Surfing
Parental Controls limit the online time and access of specified devices. Guest Network creates a separate Wi-Fi network for visitors, keeping your main network secure.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Network |
|---|
| VPN support |
PPTP, L2TP, IPSec Pass-through |
| VPN Passthrough |
Yes |
| VPN tunnels quantity |
10 |
| Media server |
Yes |
| Built-in FTP server |
Yes |
| USB sharing |
Yes |
| Wireless Distribution System (WDS) bridge |
Yes |
| Number of guest networks (2.4 GHz) |
1 |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| DSL features |
|---|
| VDSL2 |
Yes |
| ADSL2+ |
Yes |
| ADSL2 |
Yes |
| ADSL |
Yes |

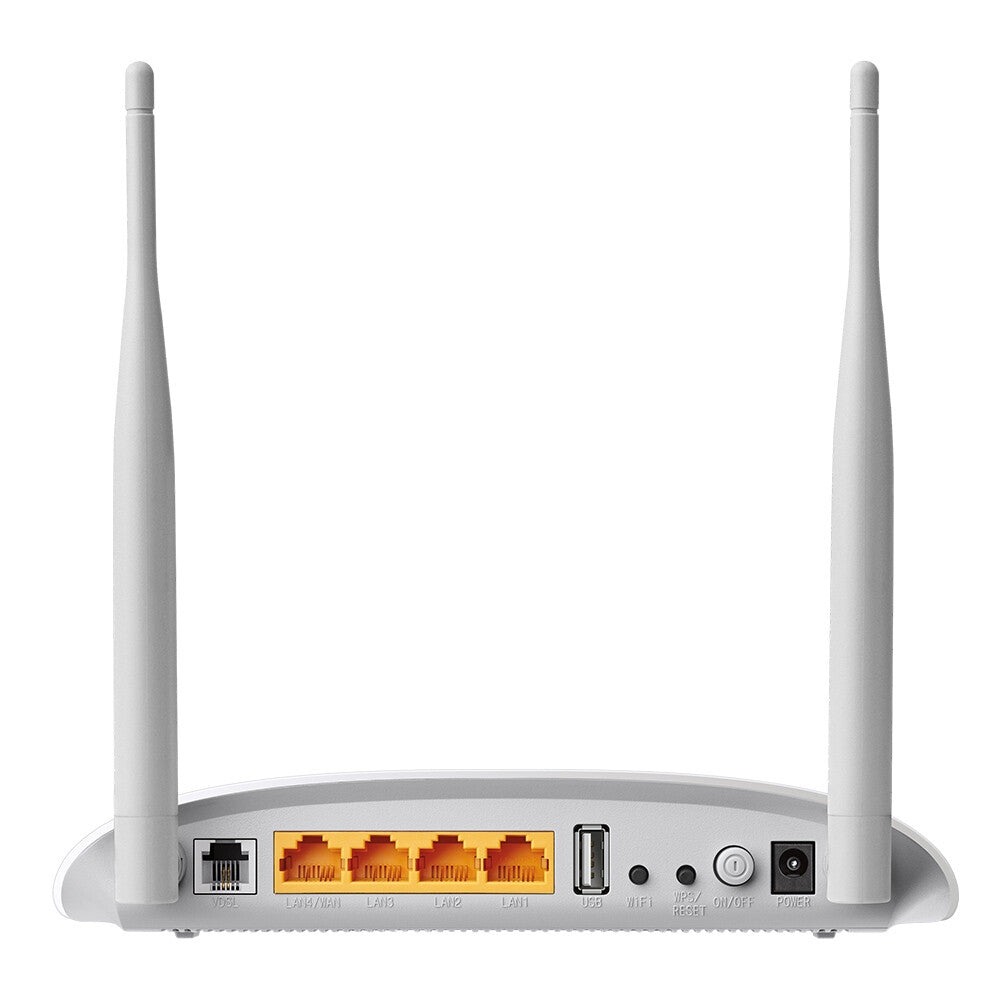

| Ports & interfaces |
|---|
| RJ-11 ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| WPS push button |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Web-based management |
Yes |
| Security |
|---|
| Network address translation (NAT) |
Yes |
| DMZ support |
No |
| URL filtering |
Yes |
| IP address filtering |
Yes |
| MAC address filtering |
Yes |
| Filtering |
Yes |
| Parental control |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
128-bit AES, 128-bit WEP, 192-bit AES, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Universal Plug and Play (UPnP) |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| LED indicators |
Yes |
| Wall mountable |
Yes |
| Product colour |
White |
| Product type |
Tabletop router |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Packaging content |
|---|
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45), Phone (RJ-11) |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna gain level (max) |
5 dBi |
| Antenna design |
External |
| Features |
|---|
| Firmware upgradeable |
Yes |
| Power |
|---|
| Output current |
1 A |
| Output voltage |
12 V |
| Power source type |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| System requirements |
|---|
| Mac operating systems supported |
macOS |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Weight & dimensions |
|---|
| Width |
195 mm |
| Depth |
130 mm |
| Height |
36 mm |
| Packaging data |
|---|
| Package weight |
550 g |
| Package height |
70 mm |
| Package depth |
232 mm |
| Package width |
260 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Frequency range |
2.4 - 2.4835 GHz |
| USB ports quantity |
1 |
| USB version |
2.0 |
| WLAN data transfer rates supported |
300 Mbit/s |
| xDSL connection |
Yes |
