Go Anywhere,
Connect Everywhere
LTE Mobile Wi-Fi

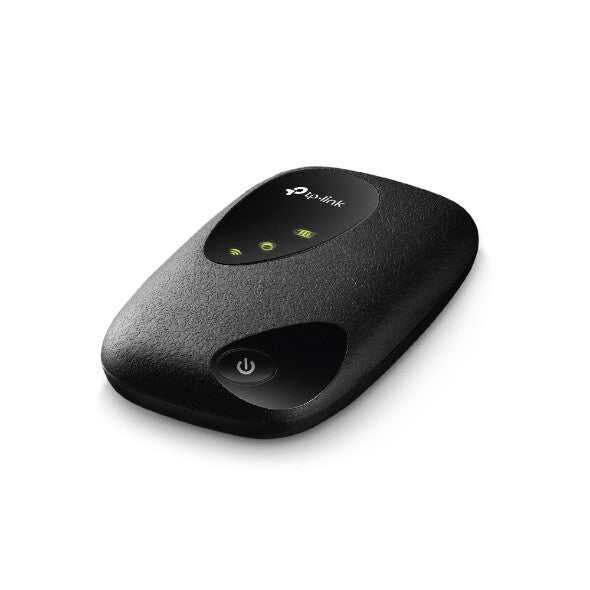

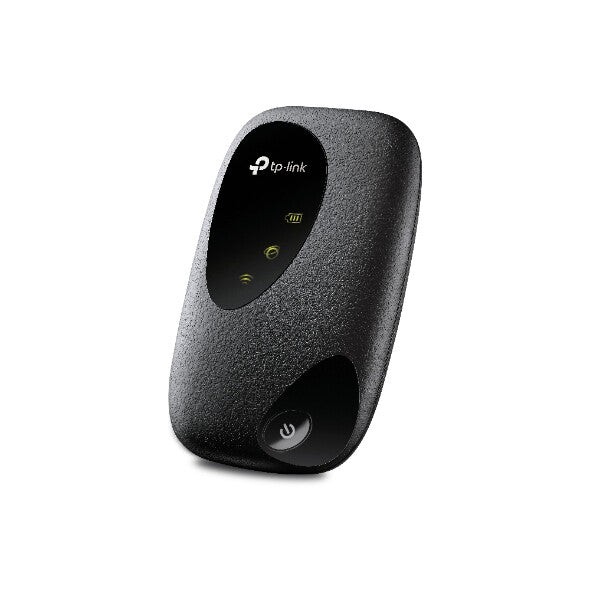

M7010
Share 4G LTE Connections on the Go

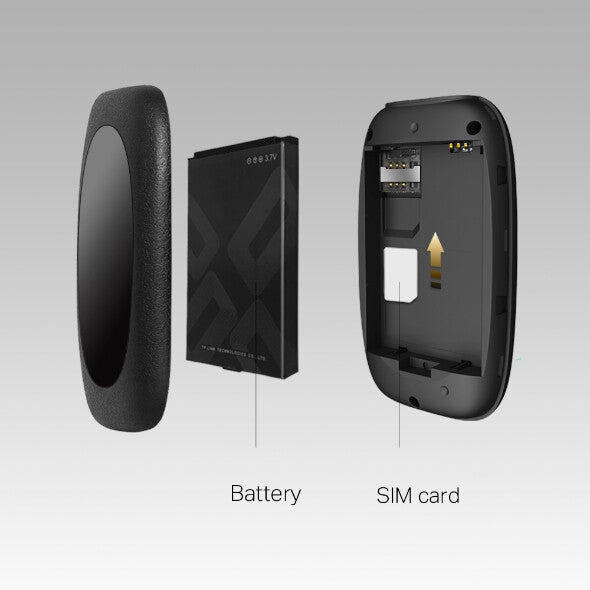

Just insert your 4G SIM card and M7010 provides WiFi connections for multiple devices, especially when you want to stay online on the road. With an 8-hour battery life, it’ll replace your phone as your mobile hotspot for your laptop, saving your phone’s battery power in the process.
Faster Speeds with
4G Plug and Play
M7010 supports 4G LTE for a download speed of up to 150 Mbps. Fast enough to enjoy HD movies with zero buffering, download files in seconds, and hold video calls without any drops. Always stay connected and enjoy a fast internet connection.
Share with Friends
This compact mobile hotspot works seamlessly with an impressive range of wireless devices. M7010 enables up to 10 simultaneous 4G/3G connections for tablets, laptops, mobile phones, and more.
Power through Your Day with up to 8 Hours of Sharable 4G
With its powerful 2000 mAh battery, M7010 provides up to 8 hours of wireless connectivity, making it the
perfect companion for travel, business trips, outdoor activities, and more.
Easy Management with tpMiFi
With the tpMiFi app, easily access and manage M7010 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your WiFi, and send messages.
| Design |
|---|
| LED indicators |
Power, WLAN |
| Reset button |
Yes |
| Product colour |
Black |
| Device type |
Cellular network router |
| Ethernet LAN features |
|---|
| DHCP client |
Yes |
| DHCP server |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN |
No |
| Wireless LAN features |
|---|
| WLAN data transfer rates supported |
300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Mobile network |
|---|
| SIM card type |
MicroSIM |
| UMTS bands supported |
850,900,2100 MHz |
| 4G bands supported |
800,850,900,1800,2100,2300,2500,2600 MHz |
| 3G bands supported |
850,900,2100 MHz |
| 4G standard |
LTE-FDD |
| 3G standards |
HSPA, HSPA+, UMTS |
| Data network |
3G, 4G, LTE |
| Ports & interfaces |
|---|
| USB port |
Yes |
| USB port type |
Micro-USB |
| Security |
|---|
| Security algorithms |
SSID, WPA-PSK, WPA2-PSK |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Certificates |
|---|
| Certification |
CE, RoHS |
| Compliance certificates |
CE, RoHS |
| Packaging content |
|---|
| Cables included |
Micro-USB |
| Performance |
|---|
| Mobile operating systems supported |
Android, Windows Phone, iOS |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported |
Yes |
| Web-based management |
Yes |
| Power |
|---|
| Battery capacity |
2000 mAh |
| Output current |
1 A |
| Output voltage |
5 V |
| Power source type |
Battery |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Height |
19.8 mm |
| Depth |
56.7 mm |
| Width |
94 mm |
| Packaging data |
|---|
| Package weight |
150 g |
| Package height |
50 mm |
| Package depth |
95 mm |
| Package width |
135 mm |
