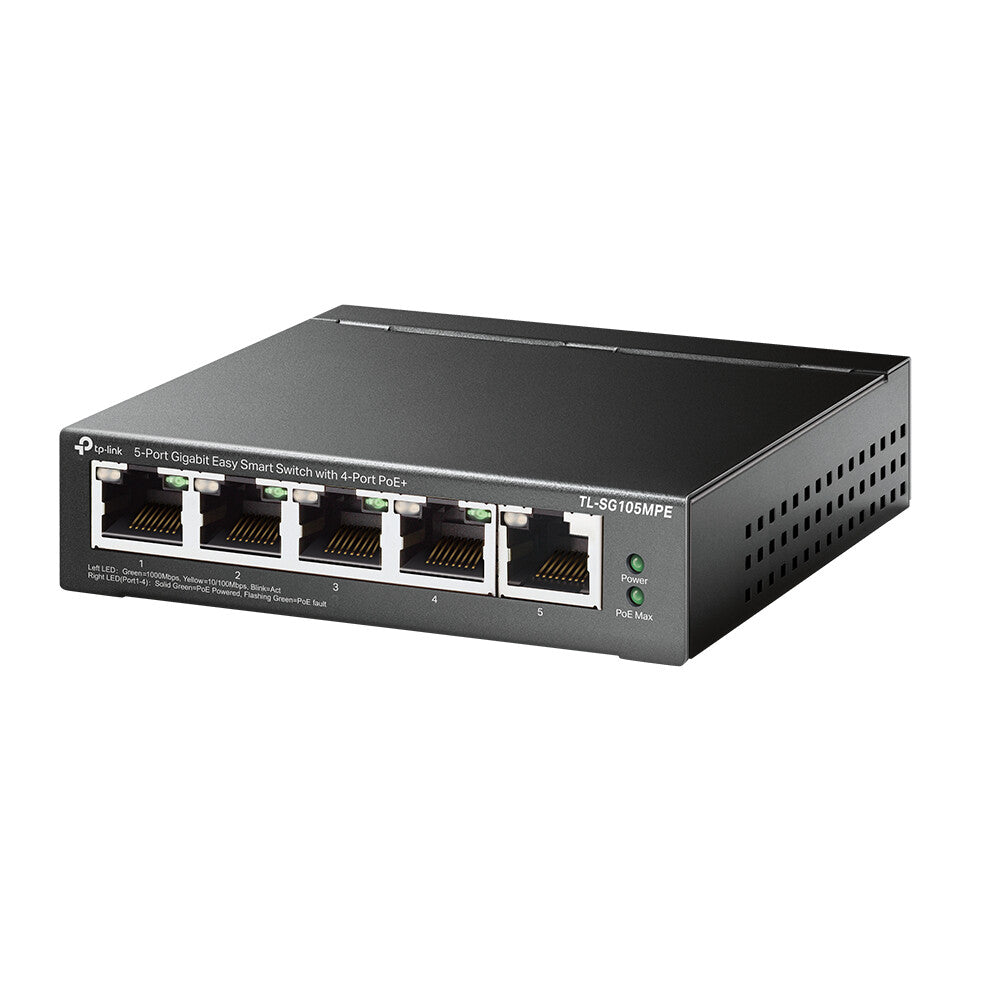

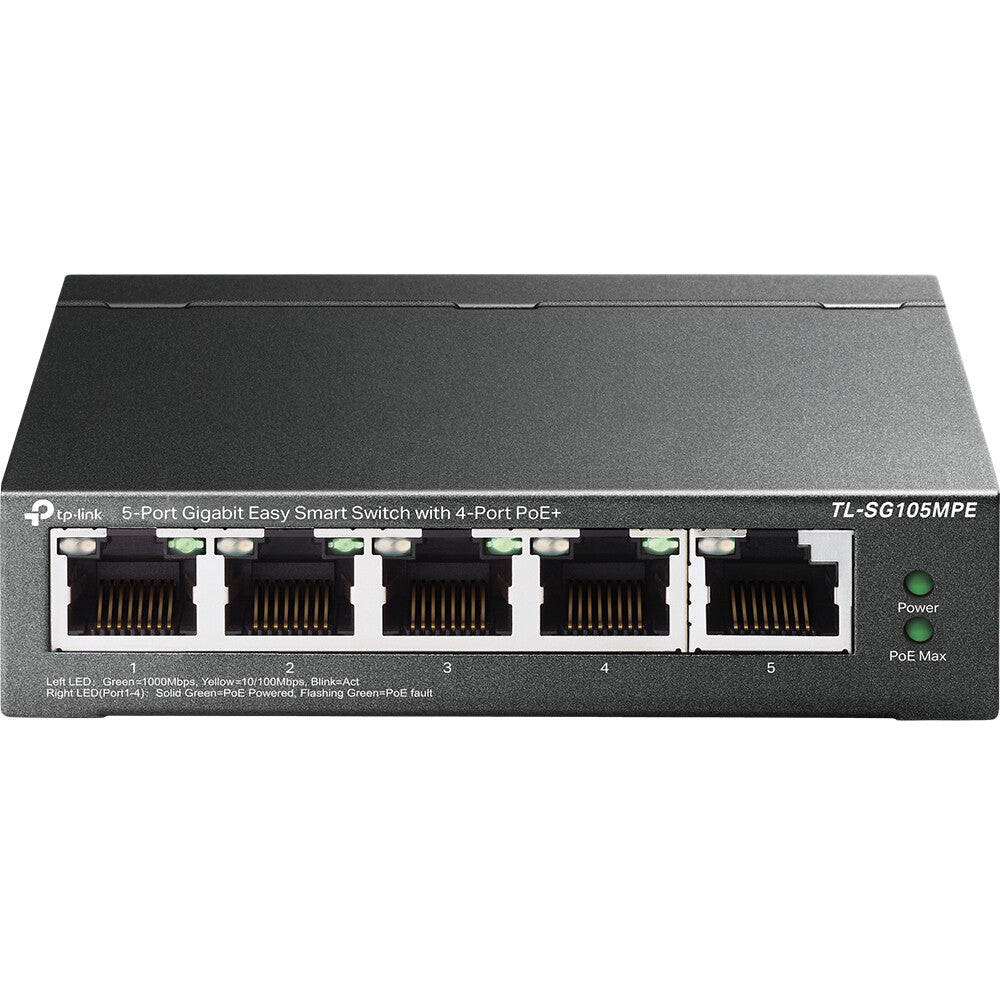

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

SKU: TL-SG105MPE
£98.65 inc. VAT
Pay in 4 interest-free payments with Clearpay
  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
  • Supports PoE power up to 120 W for all PoE ports
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise
Management features
Web-based management Yes
Switch layer L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Rate limiting Yes
Broadcast storm control Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Jumbo frames 16
Jumbo frames support Yes
Static route Yes
Forwarding rate 7.44 Mpps
Switching capacity 10 Gbit/s
MAC address table 2000 entries
Security
Loop protection Yes
IGMP snooping Yes
Design
Product colour Black
Rack mounting No
Power
Power consumption (max) 137.01 W
DC input voltage 53.5 V
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 120 W
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 25 mm
Depth 98 mm
Width 99.8 mm
Packaging content
Cables included LAN (RJ-45)
