What This Product Does

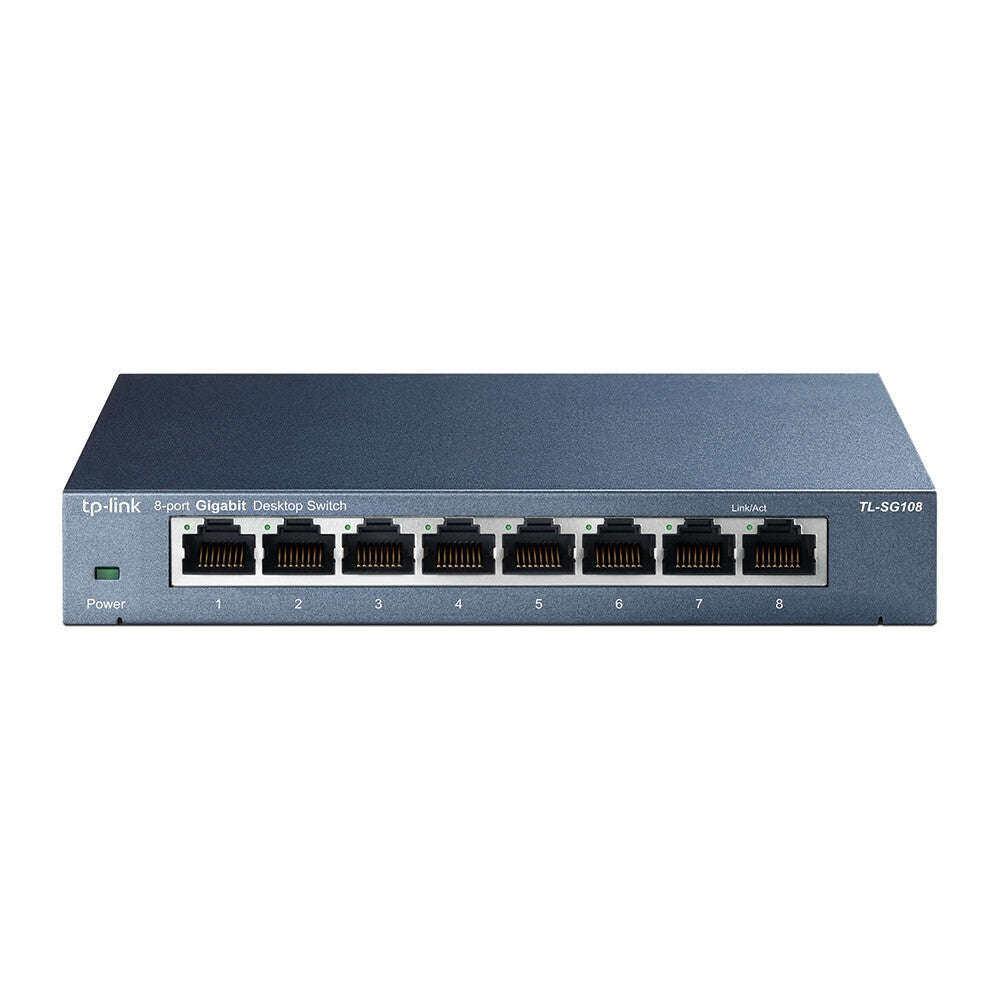

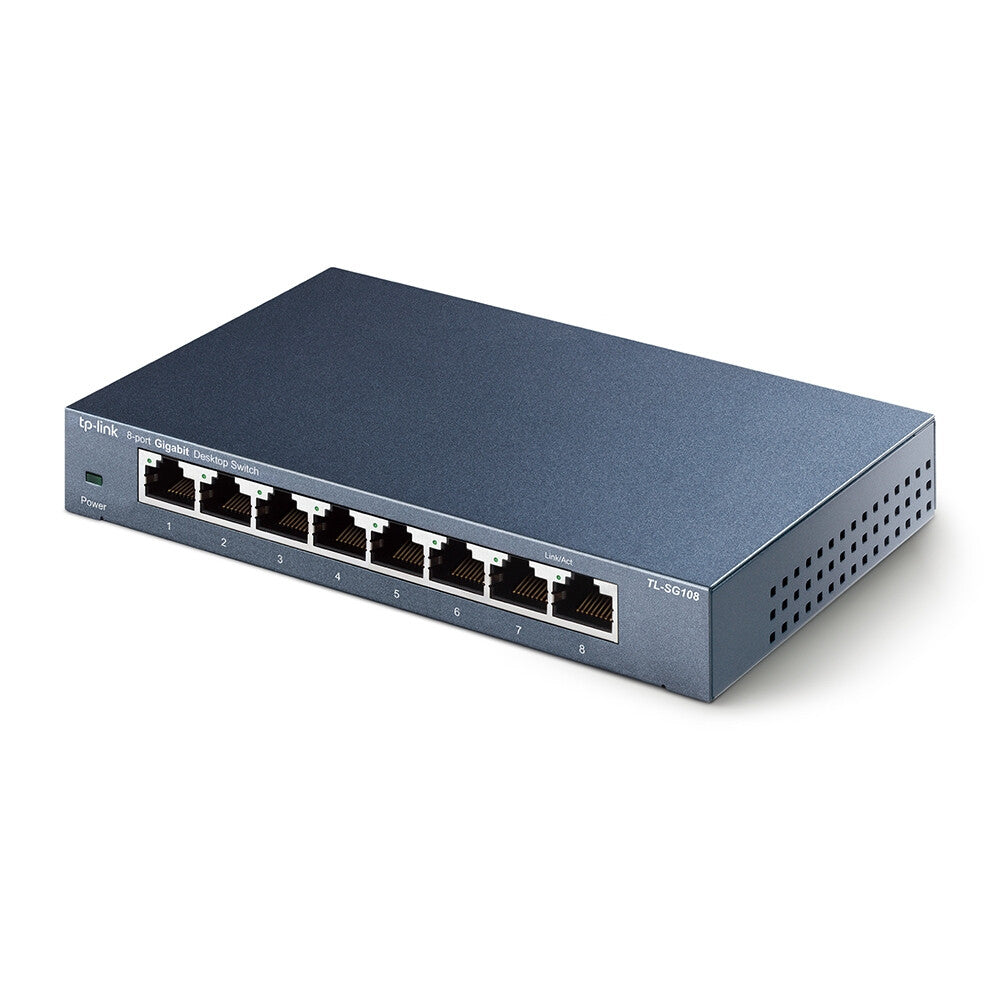

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So，power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 72% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Power connector |
DC-in jack |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Full duplex |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
16000 |
| Jumbo frames support |
Yes |
| Maximum data transfer rate |
2 Gbit/s |
| Store-and-forward |
Yes |
| Forwarding rate |
11.9 Mpps |
| Switching capacity |
16 Gbit/s |
| Supported data transfer rates |
10/100/1000Mbps |
| MAC address table |
4000 entries |
| Security |
|---|
| IGMP snooping |
Yes |
| Protocols |
|---|
| Switching protocols |
CSMA/CD |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Power |
|---|
| Power consumption (max) |
3.31 W |
| Input voltage |
9 V |
| Input current |
0.6 A |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Other features |
|---|
| Packet transfer speed |
14880pps/148800pps/1488000pps |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Power LED |
Yes |
| Wi-Fi |
No |
| Bandwidth |
16 Gbit/s |
| Connectivity technology |
Wired |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
25 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Packaging data |
|---|
| Package weight |
510 g |
| Package height |
92 mm |
| Package depth |
191 mm |
| Package width |
130 mm |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
