What This Product Does

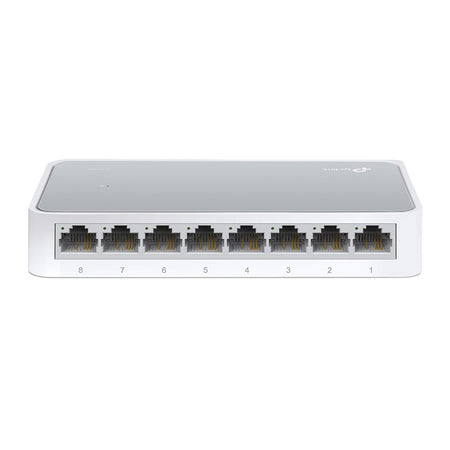

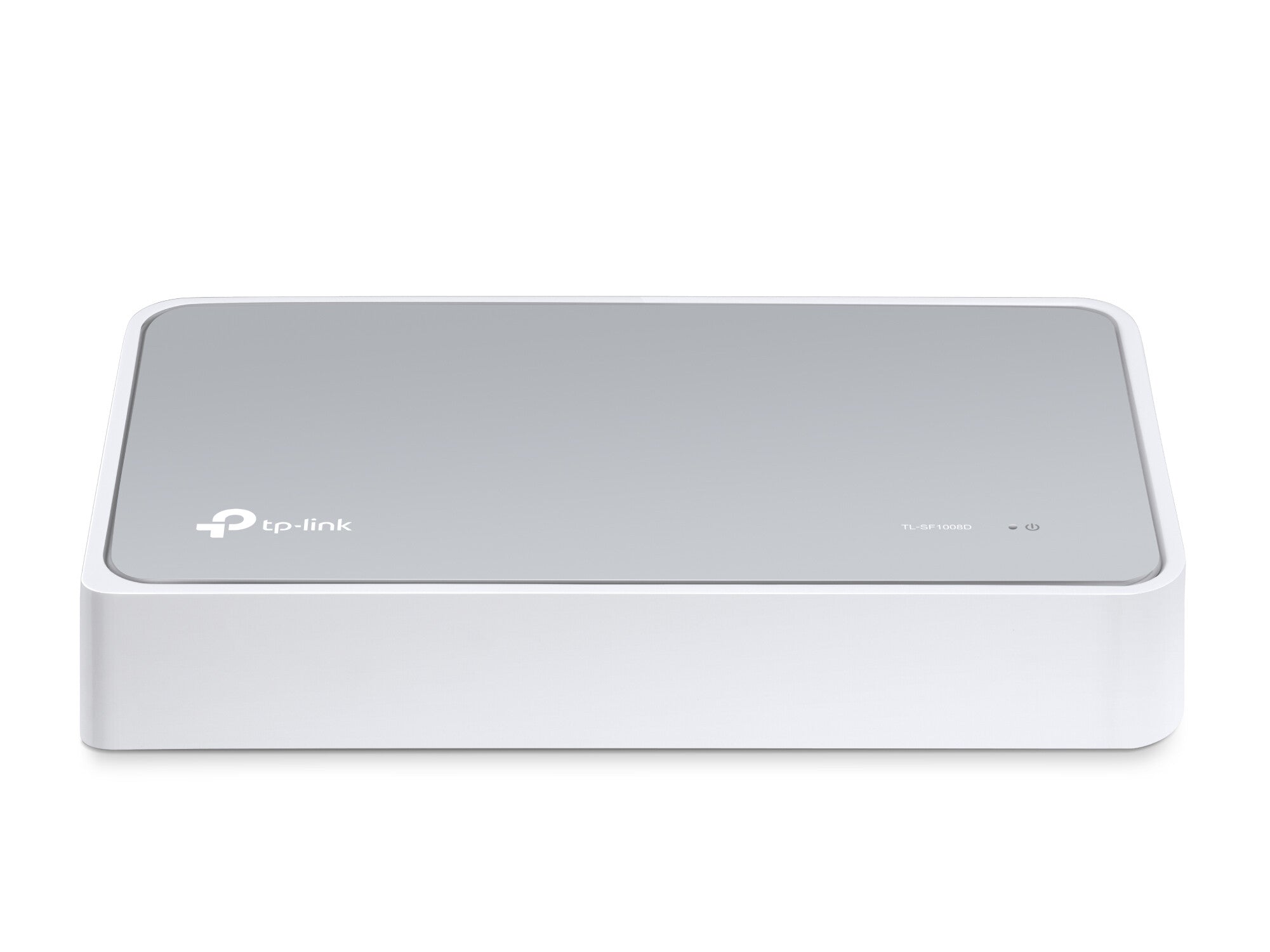

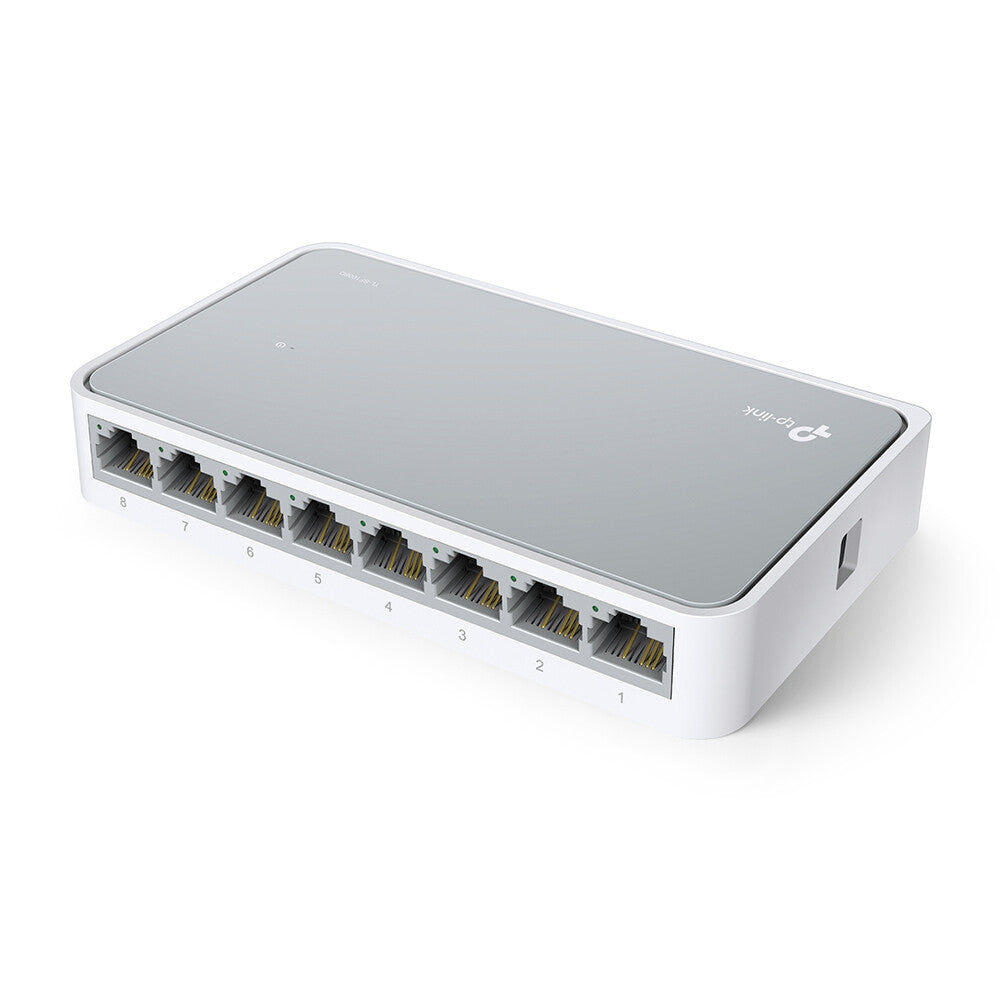

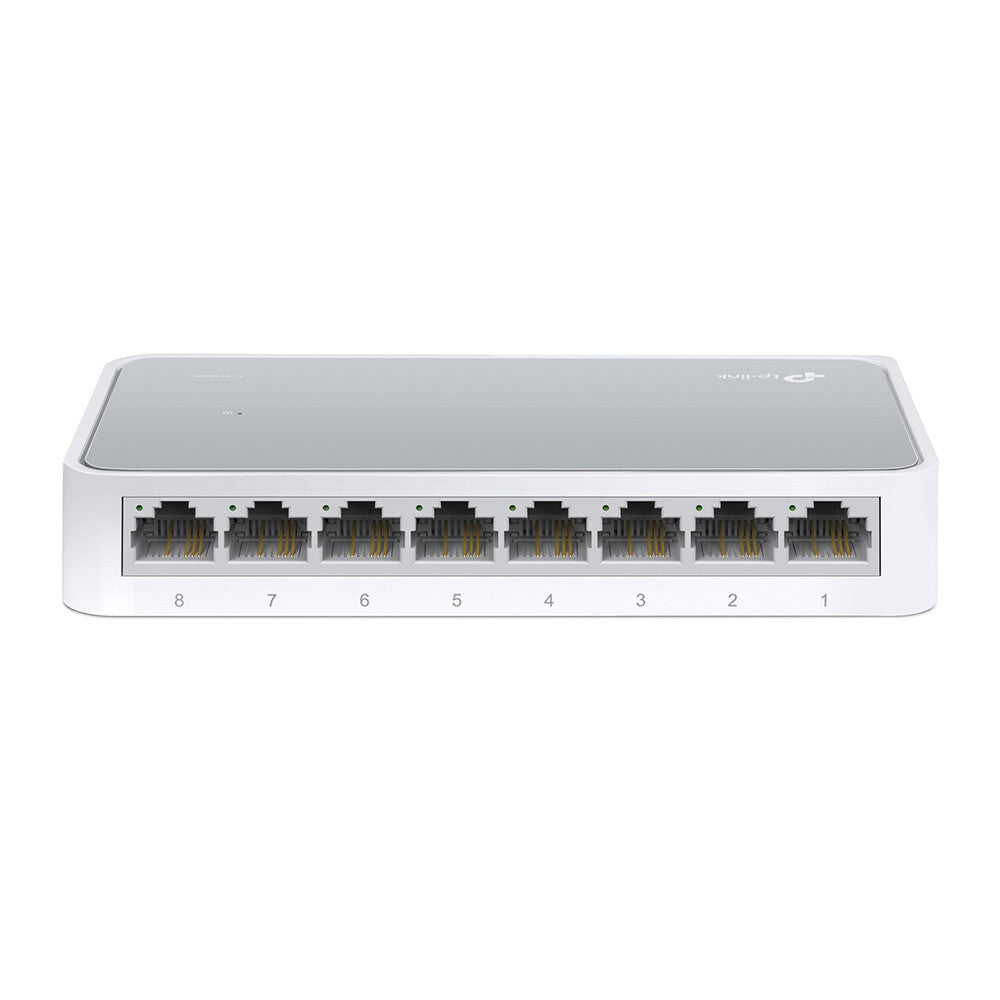

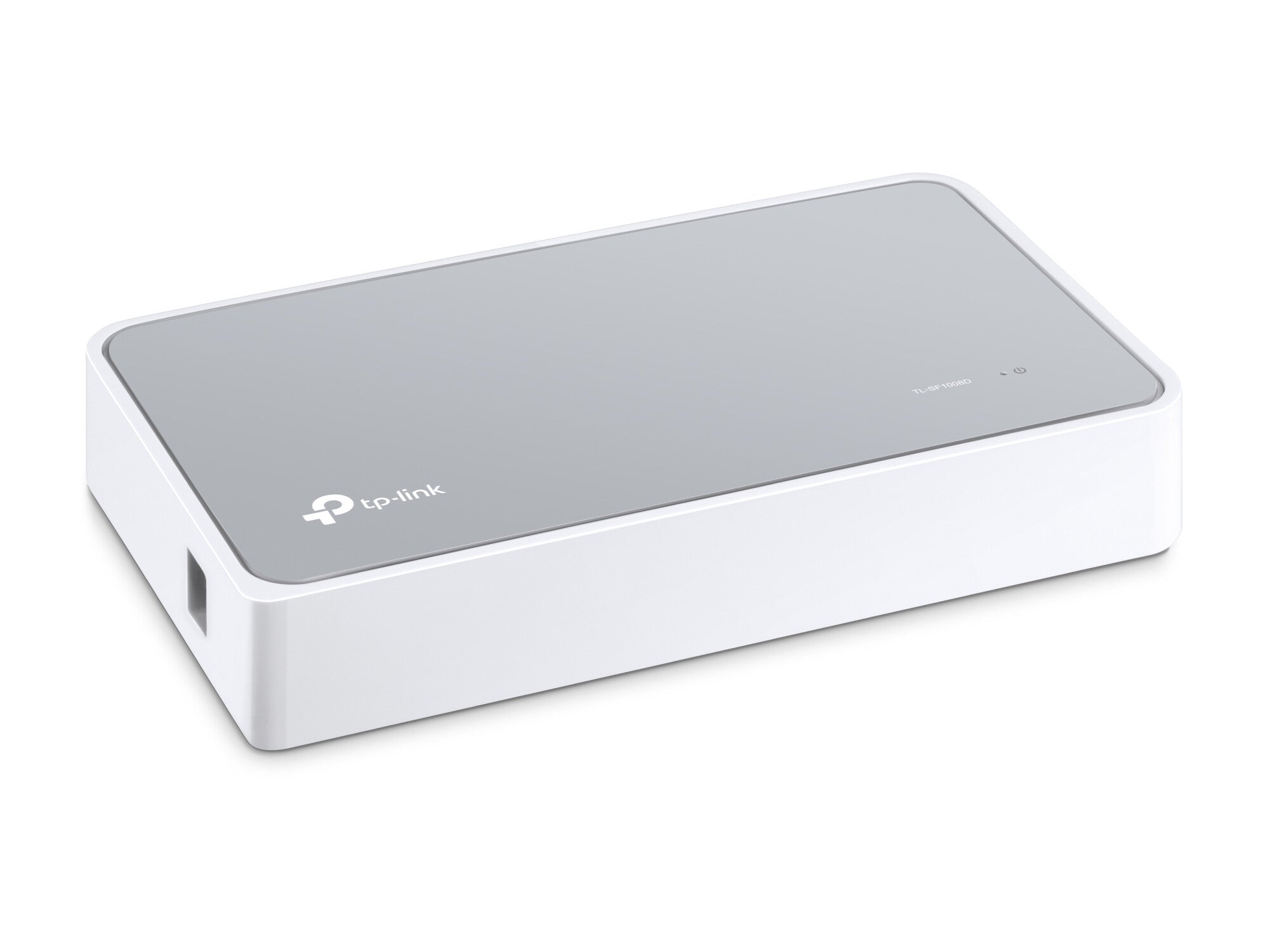

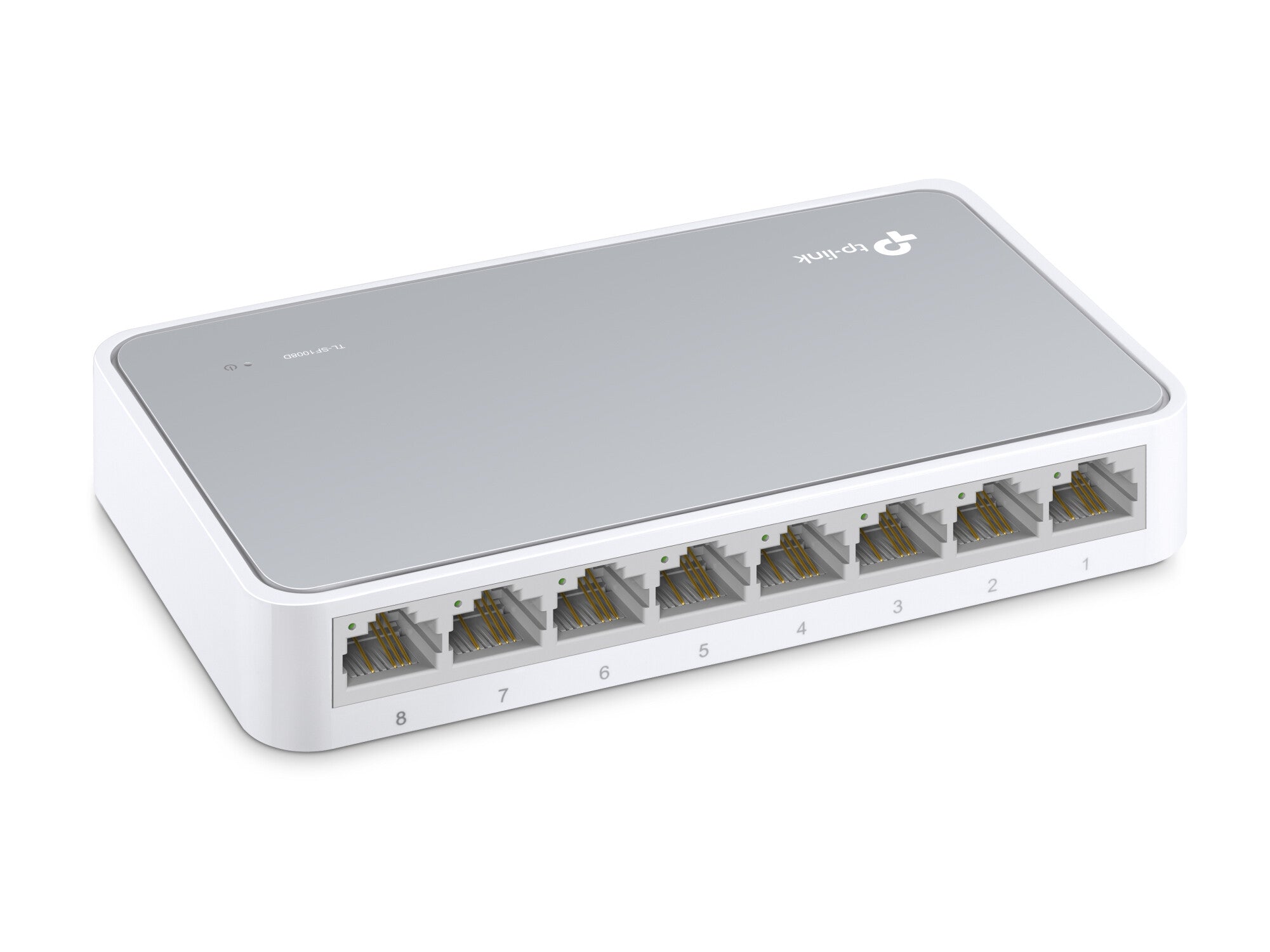

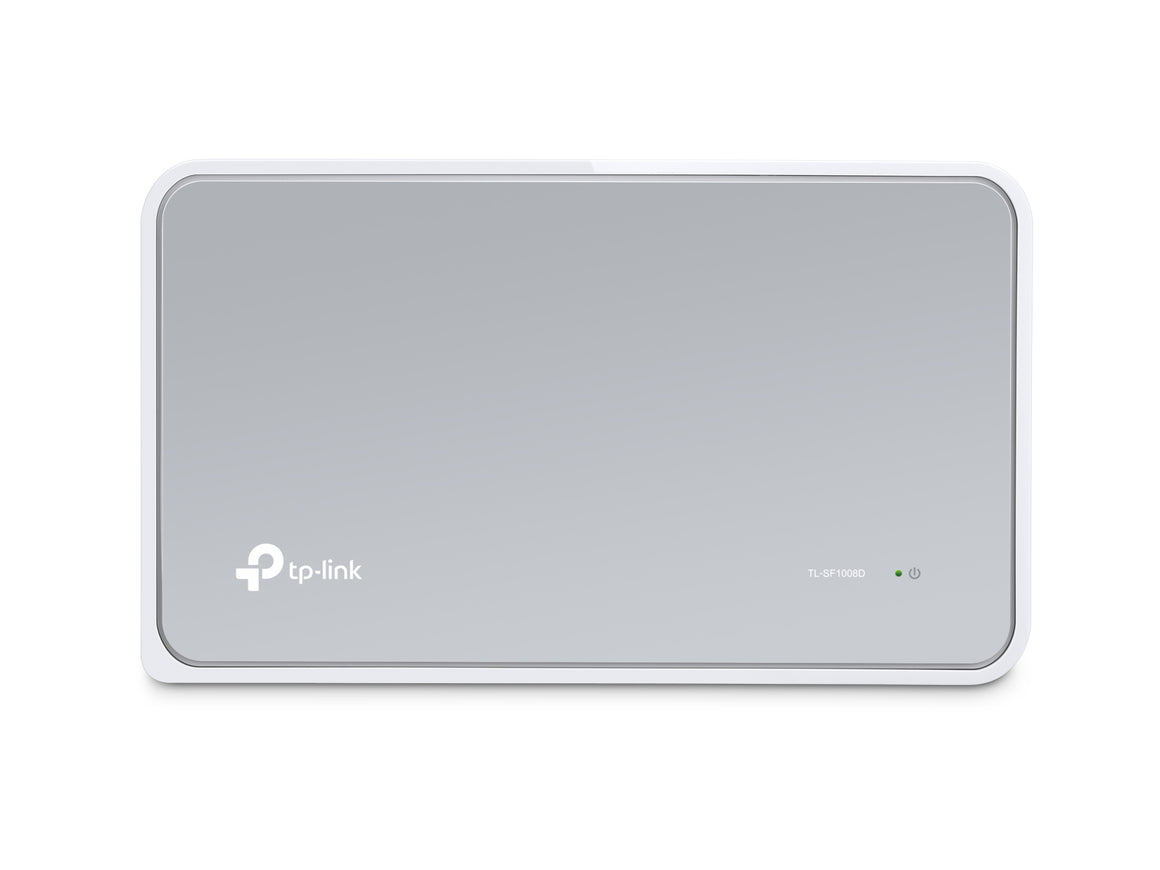

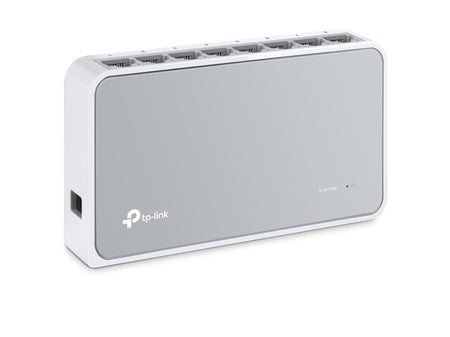

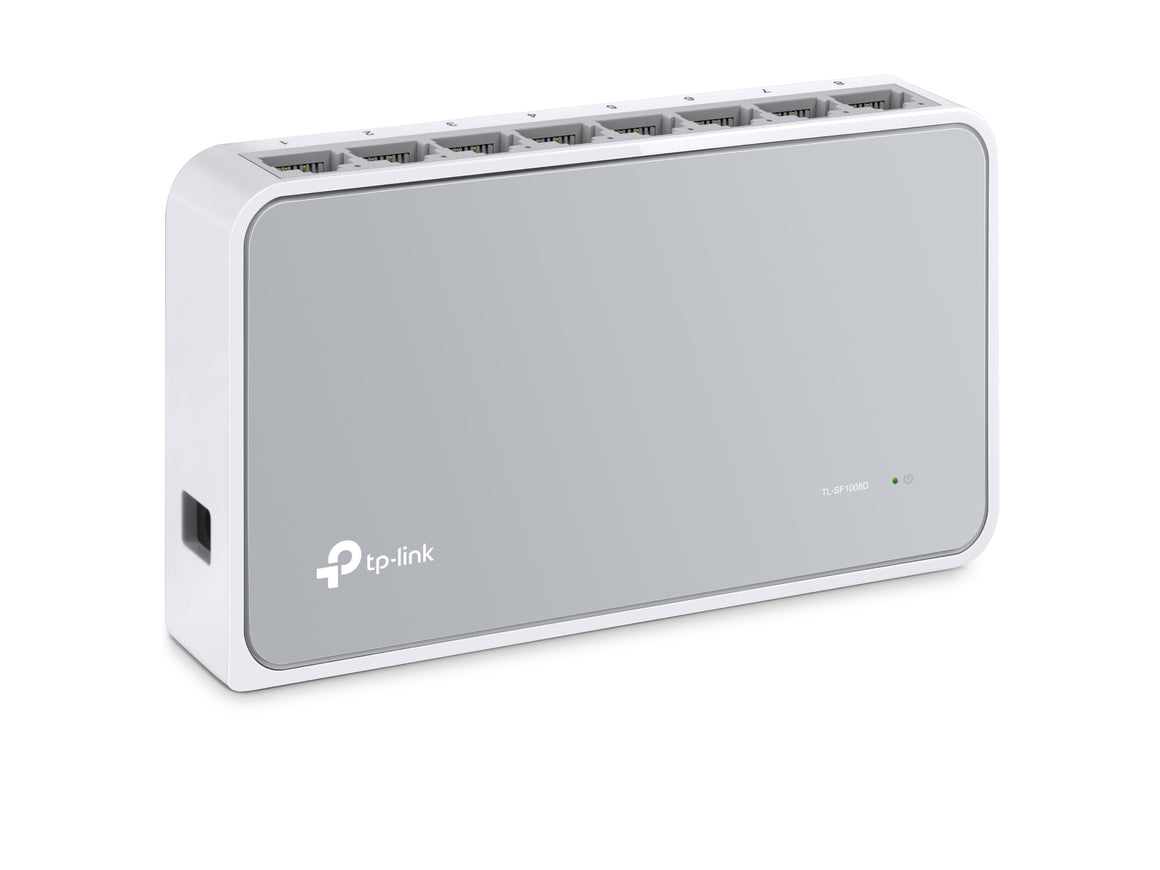

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
TP-LINK Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Power connector |
DC-in jack |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
2 MB |
| Maximum data transfer rate |
0.1 Gbit/s |
| Store-and-forward |
Yes |
| Switching capacity |
1.6 Gbit/s |
| Supported data transfer rates |
10/100 Mbps |
| MAC address table |
1000 entries |
| Protocols |
|---|
| Supported network protocols |
CSMA/CD, TCP/IP |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
White |
| Power |
|---|
| Power consumption (max) |
2.2 W |
| Input voltage |
5 V |
| Input current |
0.6 A |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Other features |
|---|
| Connectivity LEDs |
Y |
| Connectivity technology |
Wired |
| Dimensions (WxDxH) |
140 x 87 x 27.5 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
23 mm |
| Depth |
79 mm |
| Width |
134 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Packaging data |
|---|
| Package weight |
240 g |
| Package height |
85 mm |
| Package depth |
100 mm |
| Package width |
139 mm |
| Package type |
Box |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
