Futuristic Networking with
Lightning-Fast 10G Connections

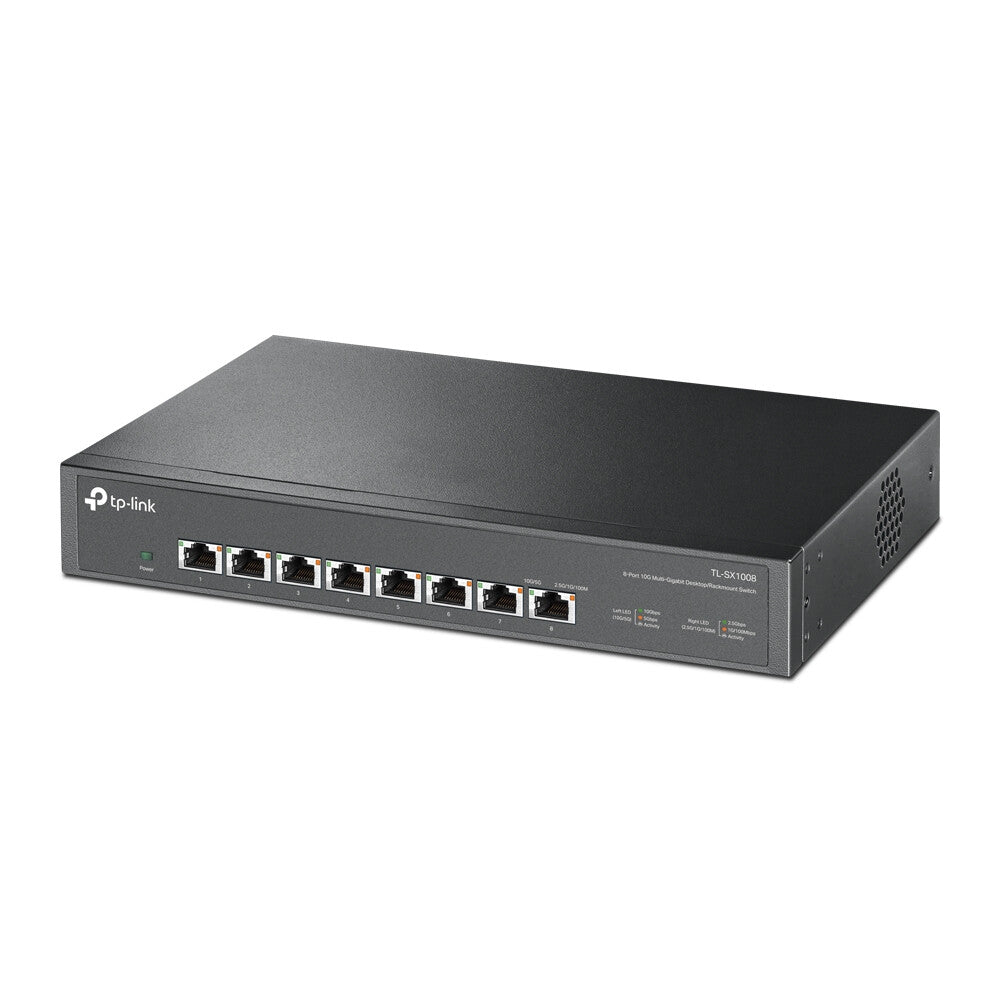

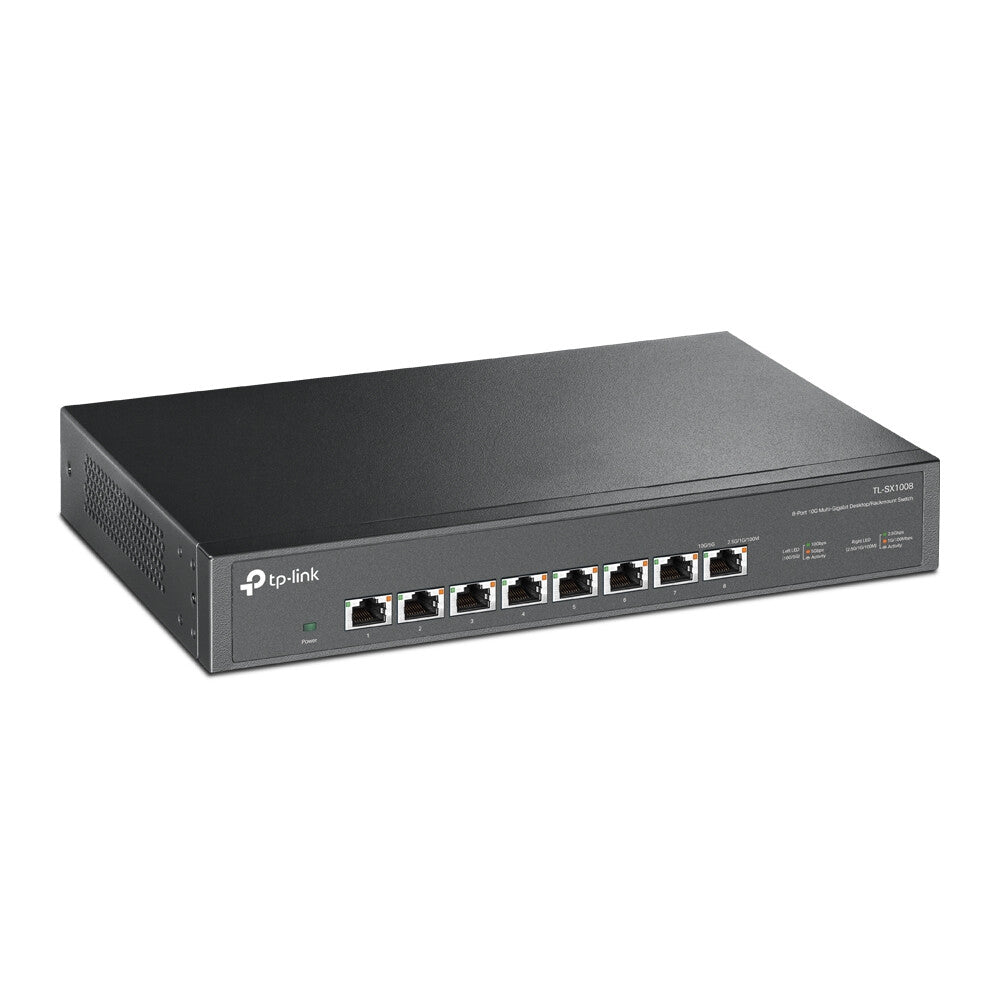

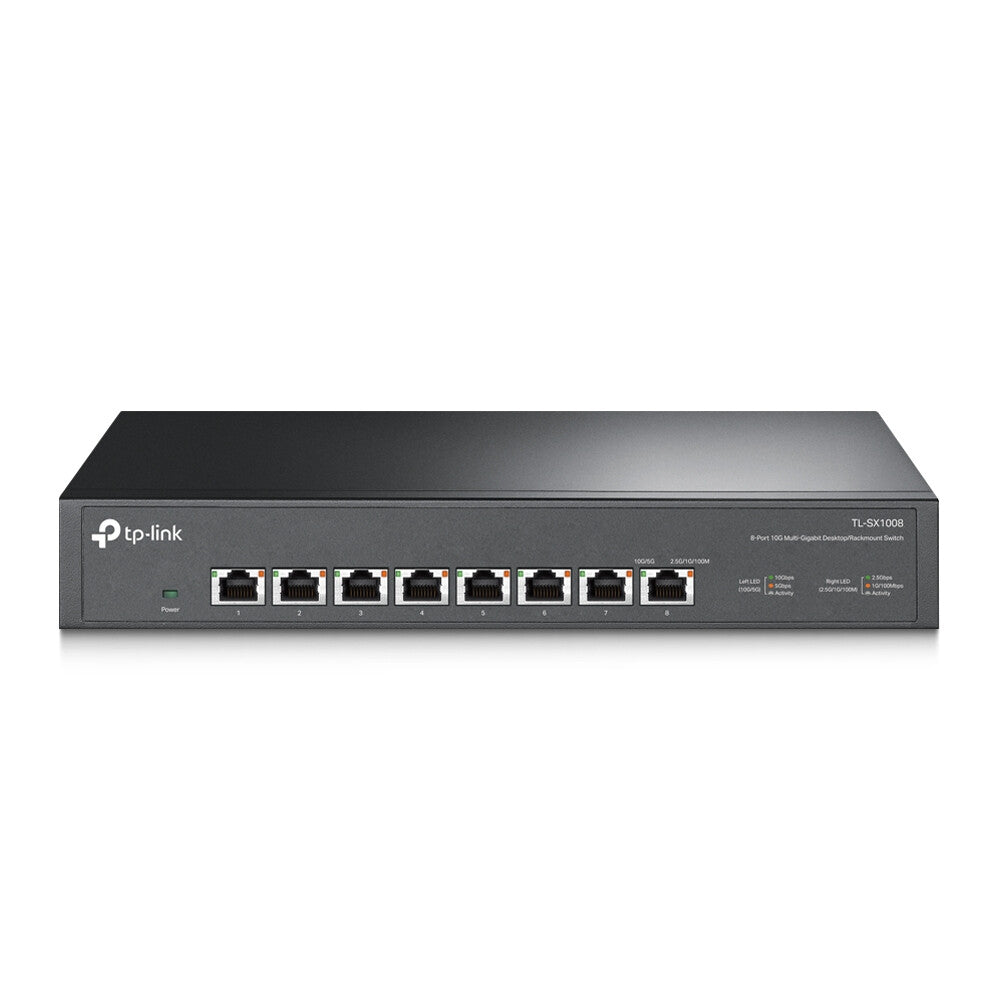

8-Port 10G Desktop/Rackmount Switch

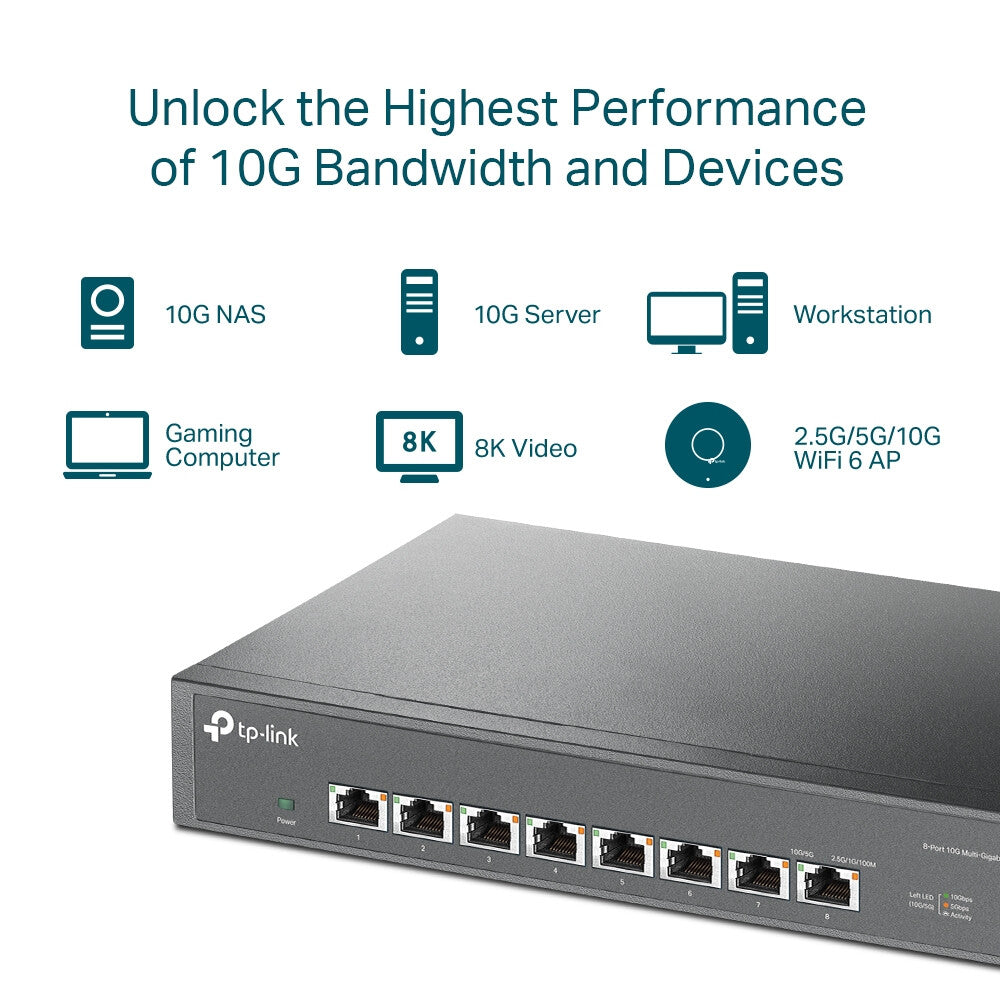

Unlock the Highest Performance of 10G/Multi-Gig Bandwidth
and Devices
As the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.
Ready for Immediate Network Upgrading to 10G?
Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
Lightning-Fast Connections for Business and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
Built for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Low-Noise Operation and
Robust Design
Intelligent fan speed adjustment ensures minimal noise to be non-distracting when in use. Durable metal casing and a heat dissipating design guarantee a wide operating temperature (0–50 ℃) that make it ideal for virtually any working environment.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| 10G Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
16 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
119 Mpps |
| Switching capacity |
160 Gbit/s |
| MAC address table |
32000 entries |
| Design |
|---|
| Number of fans |
1 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
28.4 W |
| Input current |
0.8 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Height |
44 mm |
| Depth |
180 mm |
| Width |
294 mm |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC |
| Packaging data |
|---|
| Package weight |
2.07 kg |
| Package height |
80 mm |
| Package depth |
400 mm |
| Package width |
250 mm |
| Package type |
Box |
| Certificates |
|---|
| Certification |
CE, FCC ,RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
