SKU: TL-WA1201 V1

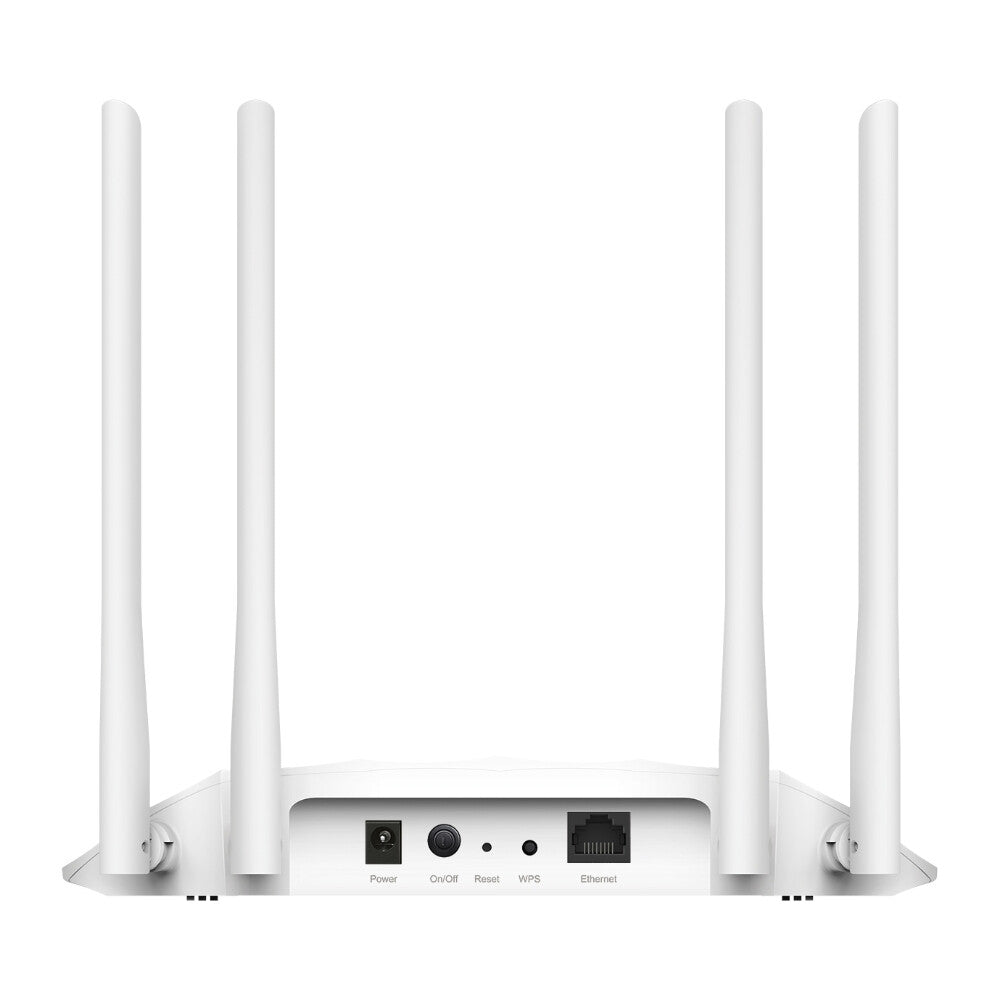

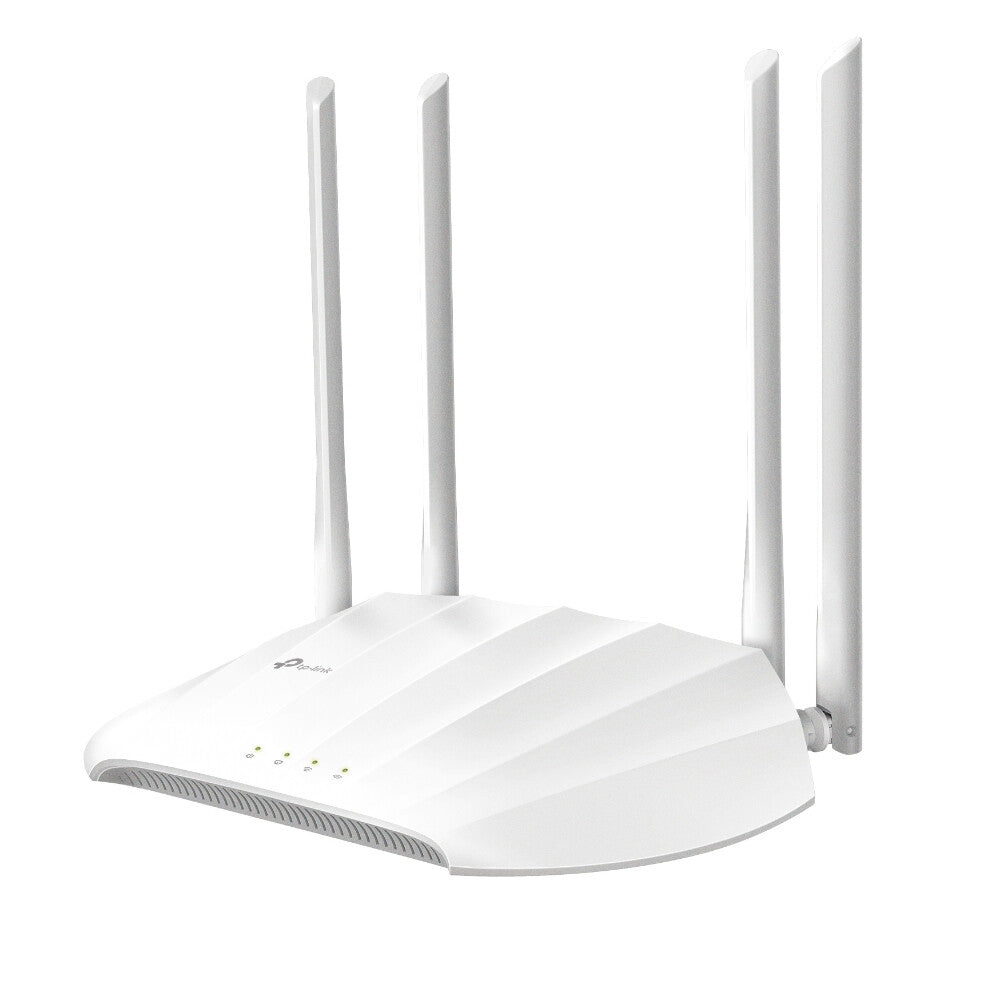

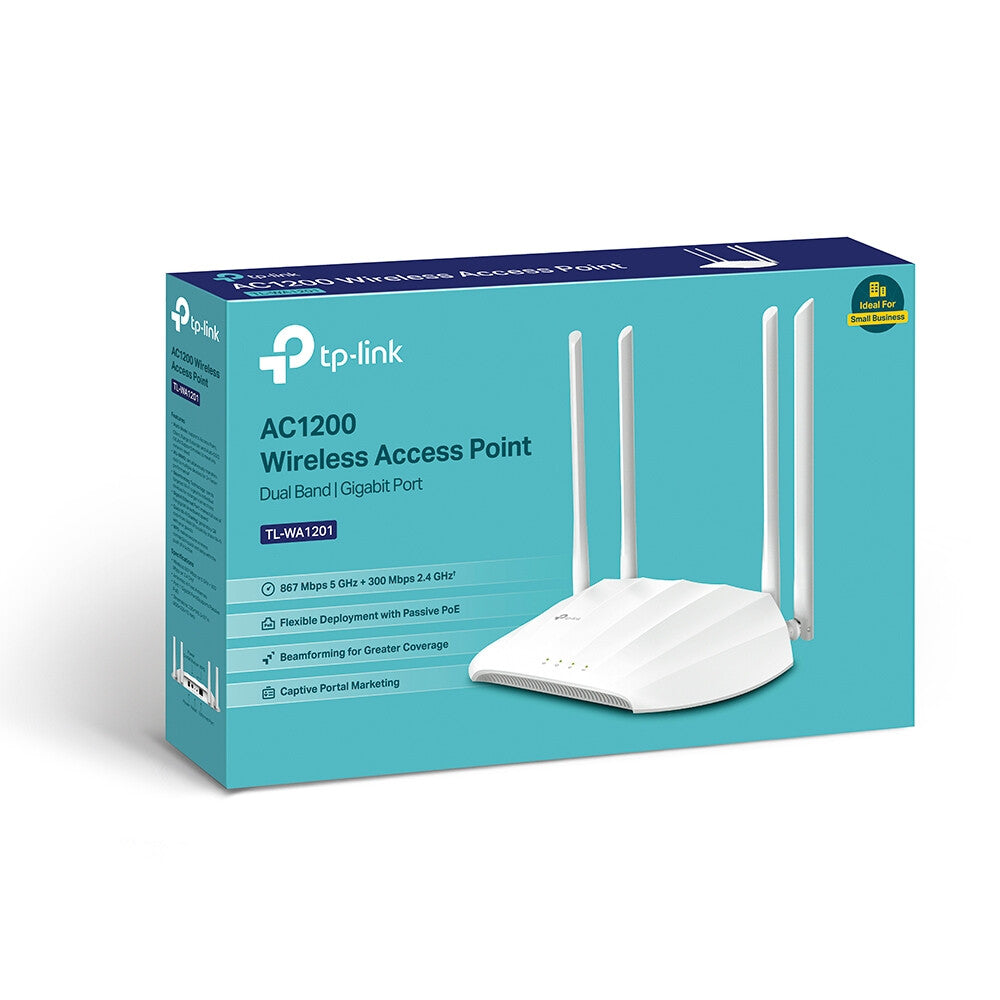

TP-Link AC1200 Wireless Access Point

TP-LINK
£43.27
Price history

Price changes in the past 30 days

November 26, 2025 £43.27 GBP
  • AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
  • Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously
  • Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs
  • MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance
  • Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
  • Captive Portal – Offers a designed portal page for heightened security and marketing
Features
Receiver sensitivity 5 GHz: , 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm , 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm , 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm , 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm , , 2.4 GHz: , 11g 54Mbps: -78 dBm , 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm , 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Quality of Service (QoS) support Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Fit AP mode features Wireless distribution system (WDS)
MIMO type Multi User MIMO
MIMO Yes
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate (5 GHz) 867 Mbit/s
Maximum data transfer rate (2.4 GHz) 300 Mbit/s
Maximum data transfer rate 867 Mbit/s
5 GHz Yes
6 GHz No
2.4 GHz Yes
Security
Access Control List (ACL) Yes
Auto Wireless Distribution System (WDS) Yes
Service Set Identifier (SSID) features Multiple SSIDs
Security algorithms 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Protocols
Supported network protocols IPv4, IPv6
DHCP client Yes
DHCP server Yes
Management features
Firmware upgradeable Yes
Web-based management Yes
Ports & interfaces
DC-in jack Yes
WAN connection Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports 1
Power
Output current 1.5 A
Output voltage 12 V
Power over Ethernet (PoE) Yes
Design
LED indicators Yes
WPS push button Yes
Reset button Yes
On/off switch Yes
Product colour White
Placement Table
Antenna
Antennas quantity 4
Antenna type External
Performance
Compatible operating systems Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux
Certificates
Certification CE, FCC, RoHS
Weight & dimensions
Height 37 mm
Depth 145.5 mm
Width 225 mm
Packaging data
Package type Box
Package weight 860 g
Package height 69 mm
Package depth 255 mm
Package width 400 mm
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
