High Gain, High Performance
Increased Range for a Smooth Online Experience

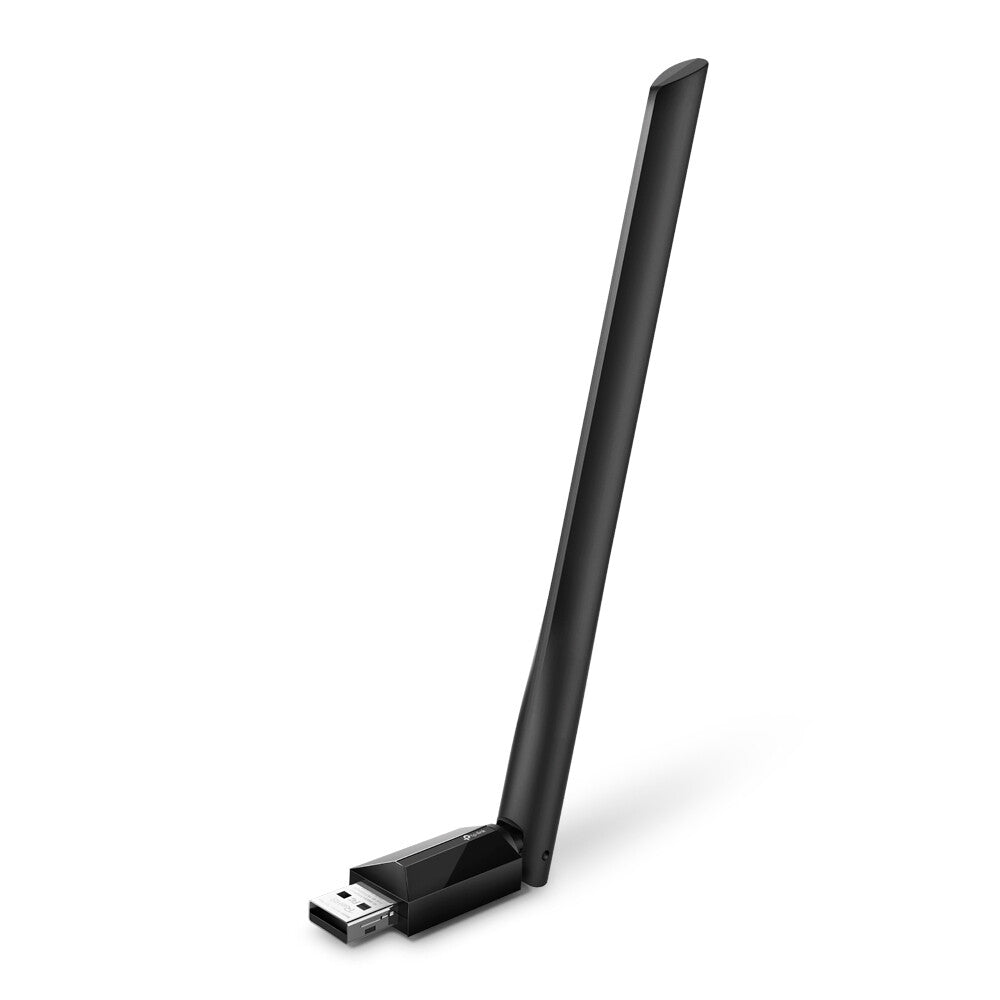

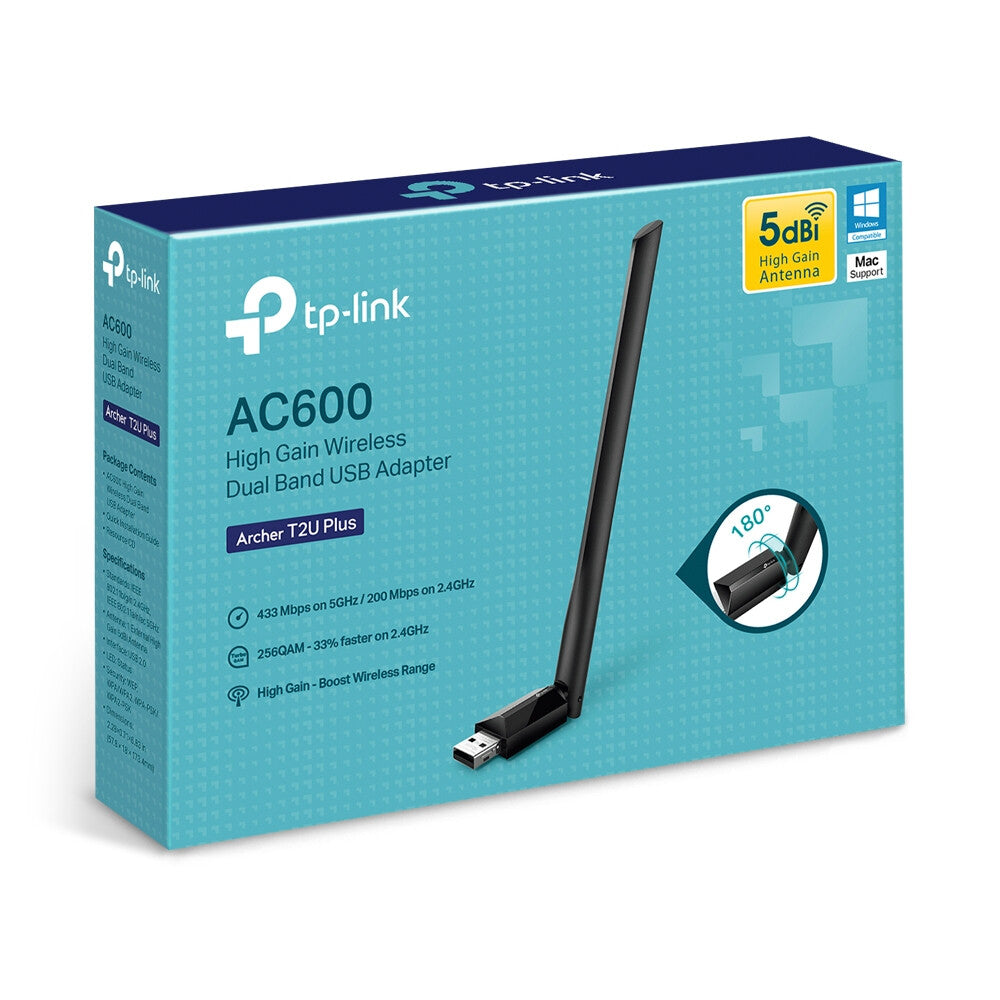

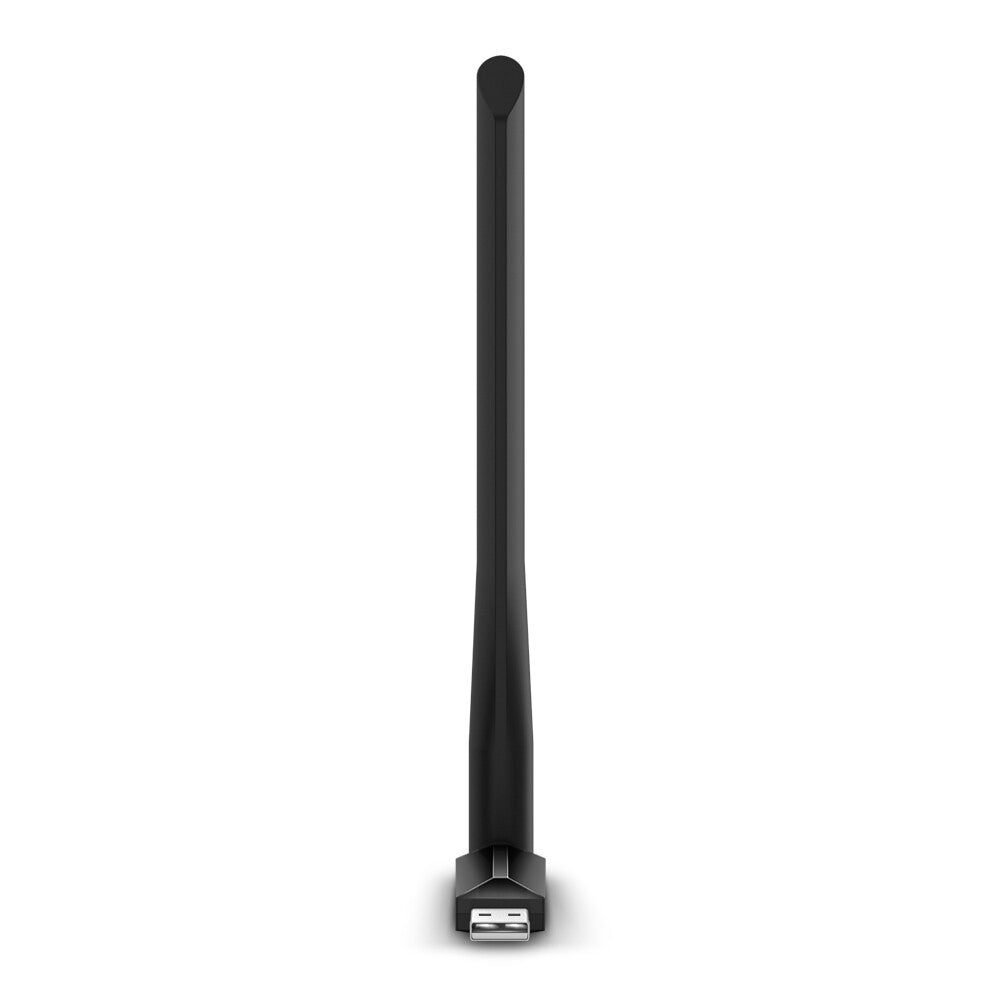

AC600 High Gain Wireless Dual Band USB Adapter
T2U Plus
High-Speed Dual-Band Adapter for Better Connections
The Archer T2U Plus receives Wi-Fi signals on two separate bands. 256QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps, delivering 33% faster performance. 200 Mbps speeds on the 2.4 GHz band is perfect for normal use, such as web surfing with legacy devices.433 Mbps speeds on the 5 GHz band is ideal for HD streaming and lag-free online gaming.

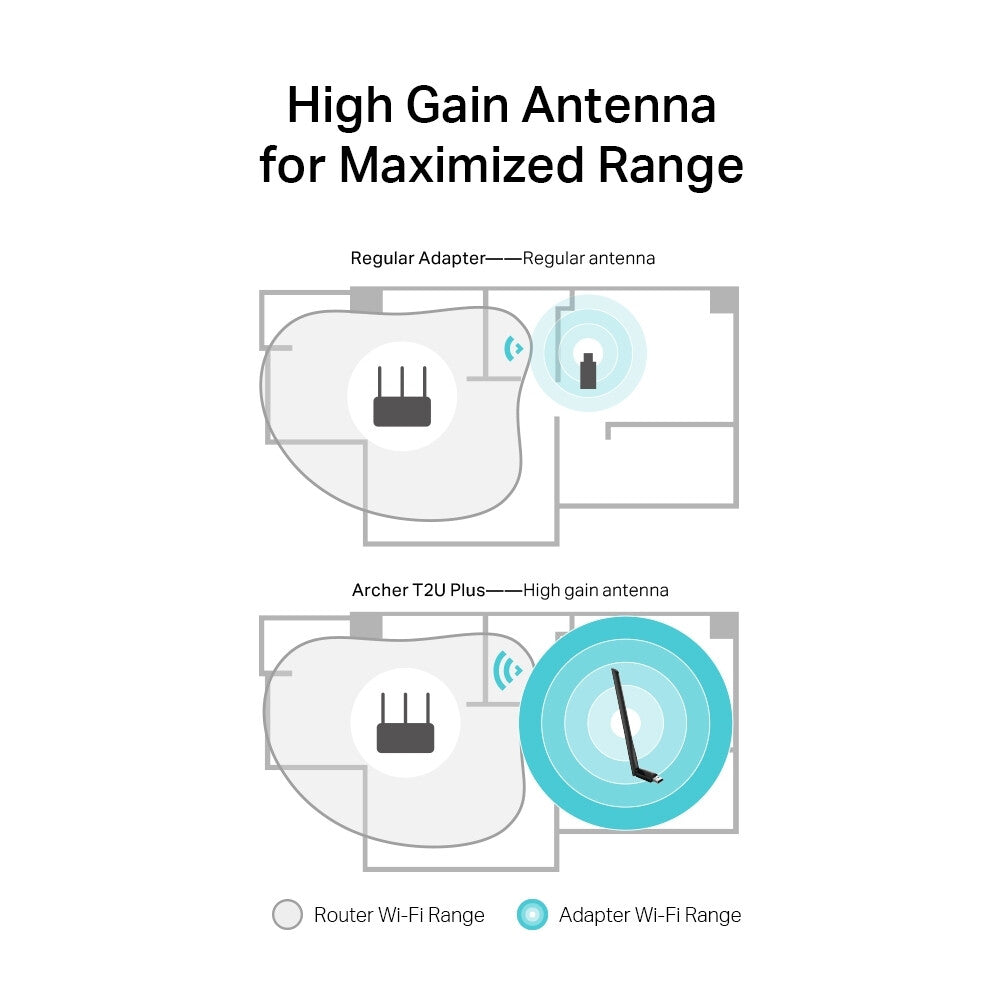

Increased Range
Archer T2U Plus has one 5dBi high-gain external antenna to ensure stronger signal transmission and reception. Enjoy a stable Wi-Fi connection throughout your home.

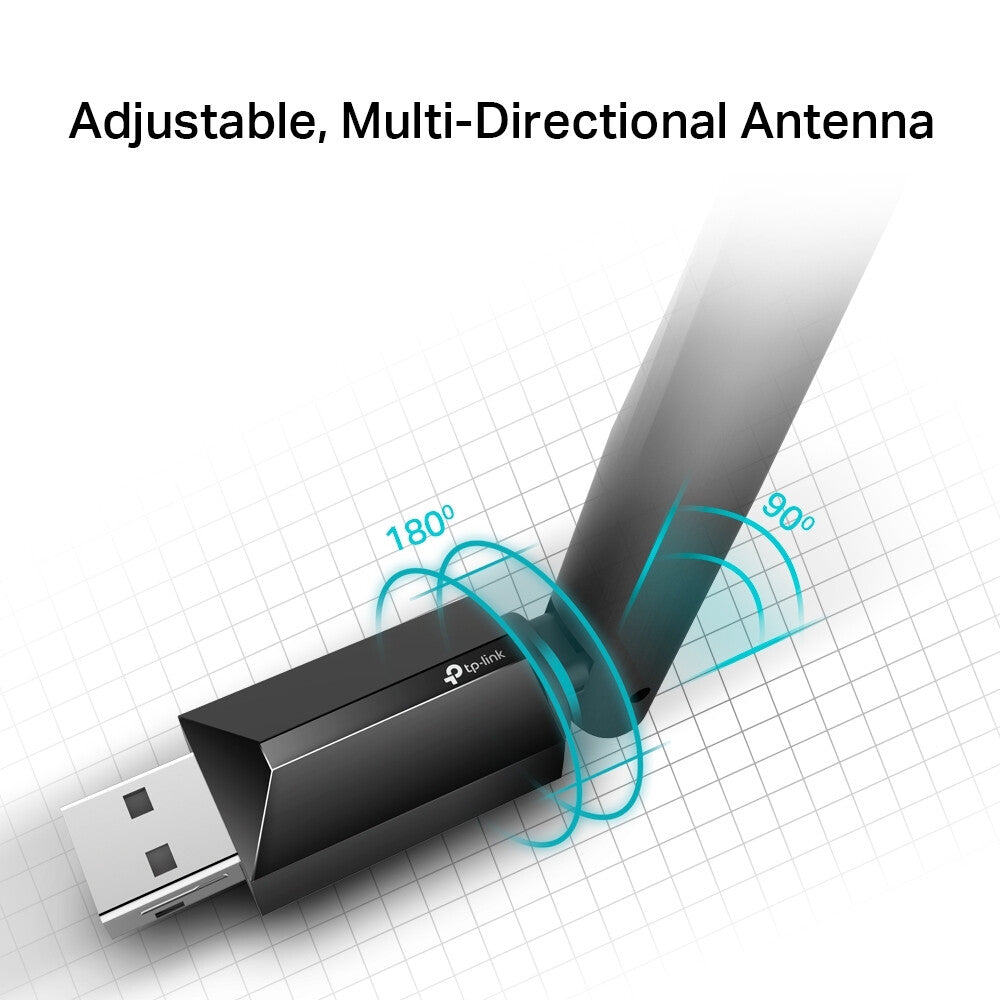

Adjustable, Multi-Directional Antenna
Rotate and adjust the antenna in multi-direction to improve using experience and performance in different environments.
| Ports & interfaces |
| USB version |
2.0 |
| Interface |
WLAN |
| Host interface |
USB |
| Connectivity technology |
Wired |
| Network |
| Security algorithms |
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Modulation |
16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported |
150,200,433 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency range |
2.4 - 5 GHz |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate |
600 Mbit/s |
| Design |
| Certification |
FCC, CE, RoHS |
| LED indicators |
Status |
| Plug and Play |
Yes |
| Antenna |
Yes |
| Antenna design |
External |
| Product colour |
Black |
| Component for |
Laptop |
| Internal |
Yes |

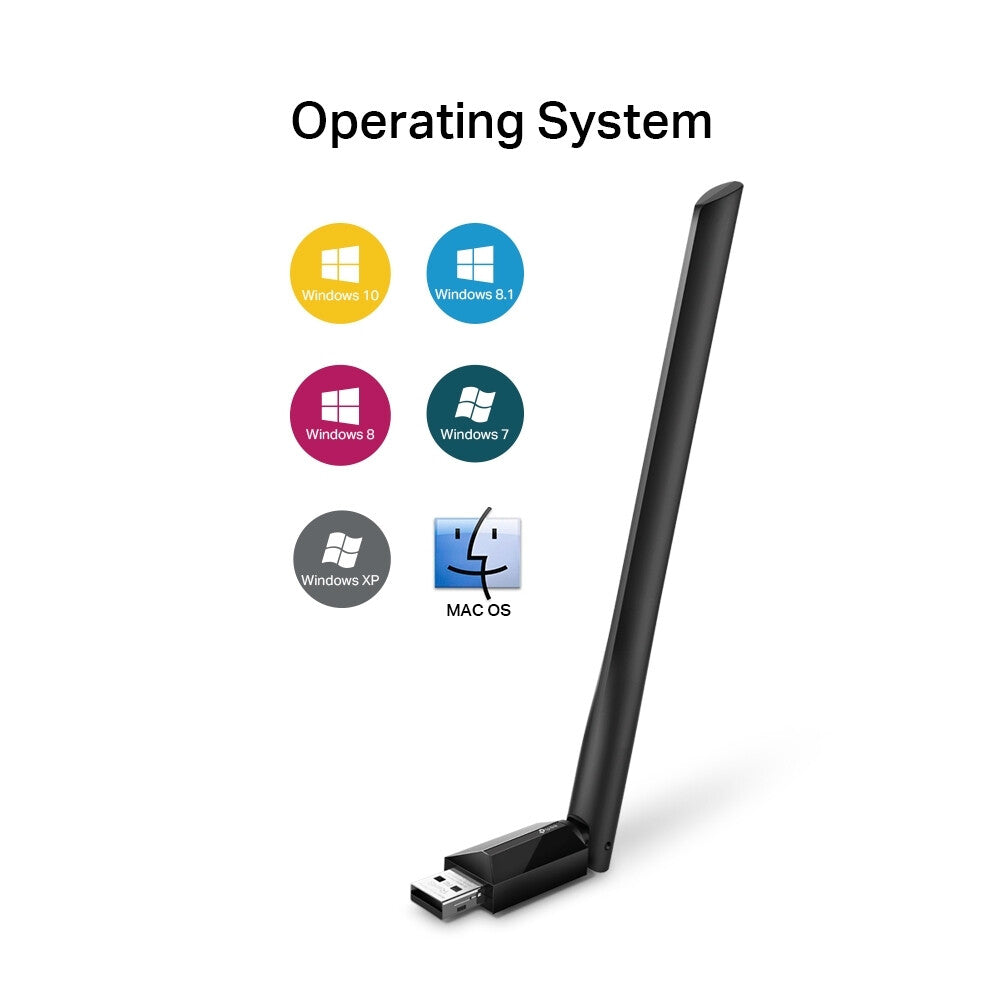

| System requirements |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
173.4 mm |
| Depth |
18 mm |
| Width |
57.8 mm |
| Packaging data |
| Package weight |
140 g |
| Package height |
42 mm |
| Package depth |
148 mm |
| Package width |
207 mm |
| Technical details |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Other features |
| Antennas quantity |
1 |
| Gain |
5 dBi |
