Unrivaled Speed with 5G, Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.§
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
Powerful Wi-Fi 6
Armed with WiFi 6 technology, NX200 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.△
EasyMesh-Compatible Networking
Mesh networking creates smooth, fast, stable roaming. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.*
Available WAN Connection

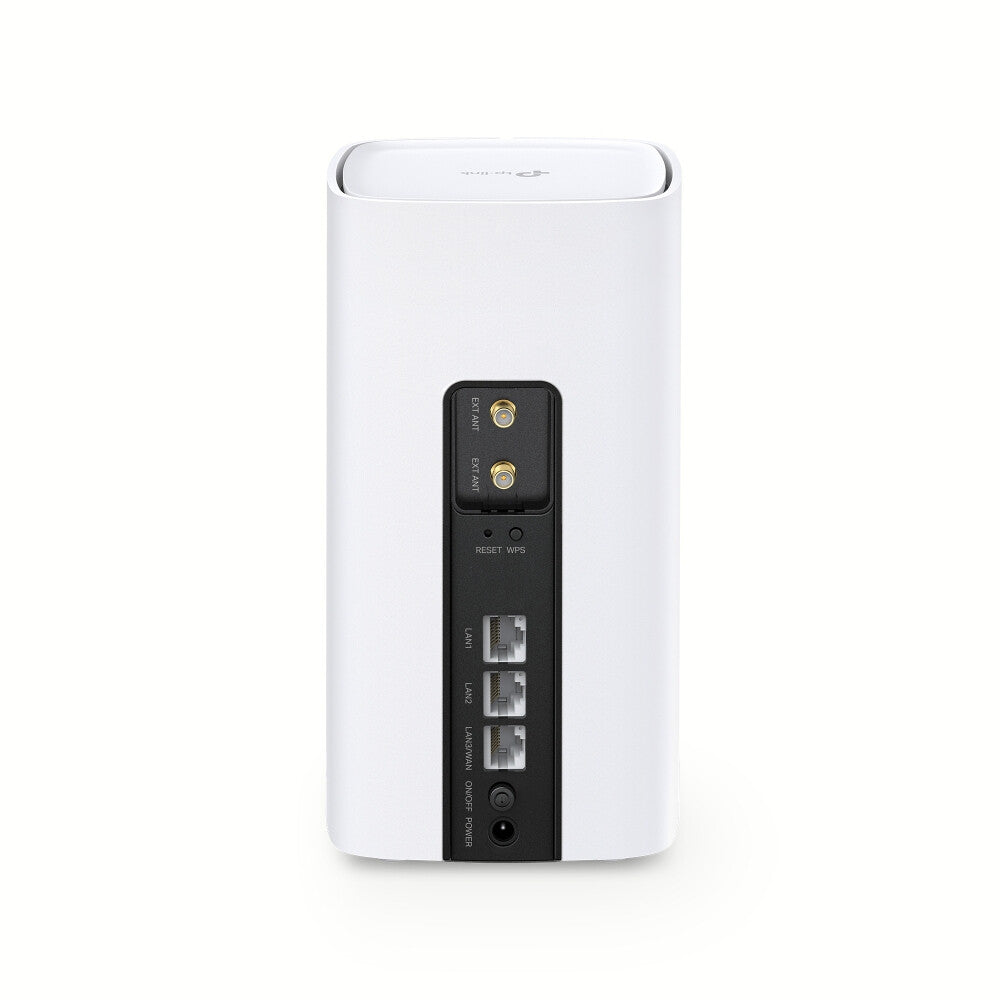

The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Modulation |
1024-QAM |
| WLAN data transfer rate (second band) |
1201 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
1201 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
PPTP VPN, IPSec VPN , OpenVPN |
| Number of guest networks (2.4 GHz) |
1 |
| Number of guest networks (5 GHz) |
1 |
| Dynamic DNS (DDNS) |
Yes |
| Port triggering |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| SIM card type |
NanoSIM |
| 4G bands supported |
700,800,850,900,1500,1800,2100,2300,2500,2600,3500,3700 MHz |
| 3G bands supported |
850,900,2100 MHz |
| 5G bands supported |
700,800,850,900,1800,2100,2300,2500,2600,3500,3700 MHz |
| 4G standard |
LTE-TDD & LTE-FDD |
| 3G standards |
DC-HSDPA, HSPA, HSPA+, UMTS |
| Mobile network generation |
5G |
| Ports & interfaces |
|---|
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
3 |
| Management features |
|---|
| MU-MIMO technology |
Yes |
| WPS push button |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| DoS attack prevention |
Yes |
| Parental control |
Yes |
| Firewall security |
IPv4 SPI Firewall, IPv6 Firewal |
| Access Control List (ACL) |
Yes |
| Firewall |
Yes |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Supported network protocols |
IPv4, IPv6 |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| Product colour |
White |
| Product type |
Tabletop router |
| General |
|---|
| Product family |
Archer |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Detachable antenna(s) |
Yes |
| Antennas quantity |
10 |
| Antenna design |
Internal |
| Power |
|---|
| Output current |
2 A |
| Output voltage |
12 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Weight & dimensions |
|---|
| Width |
99 mm |
| Depth |
99 mm |
| Height |
190 mm |
