Your Desktop Upgrade to Next-Gen Wi-Fi Technology

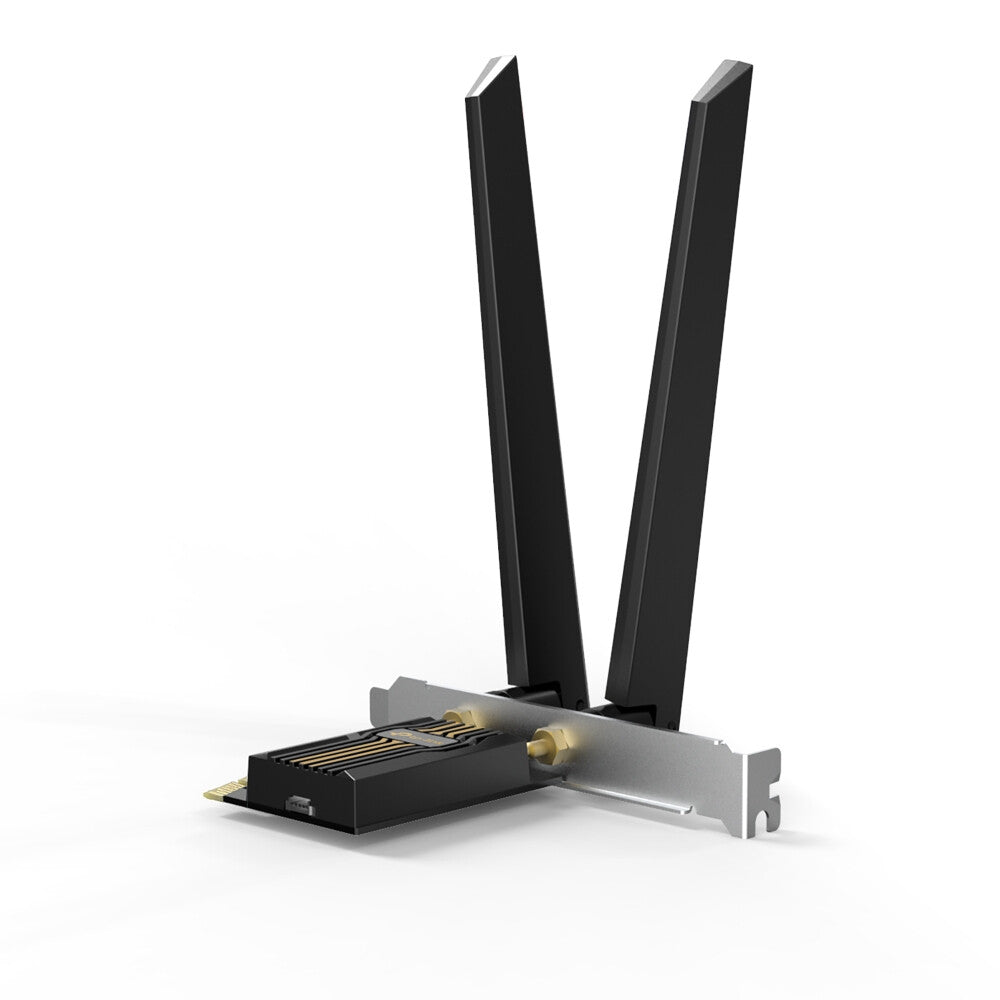

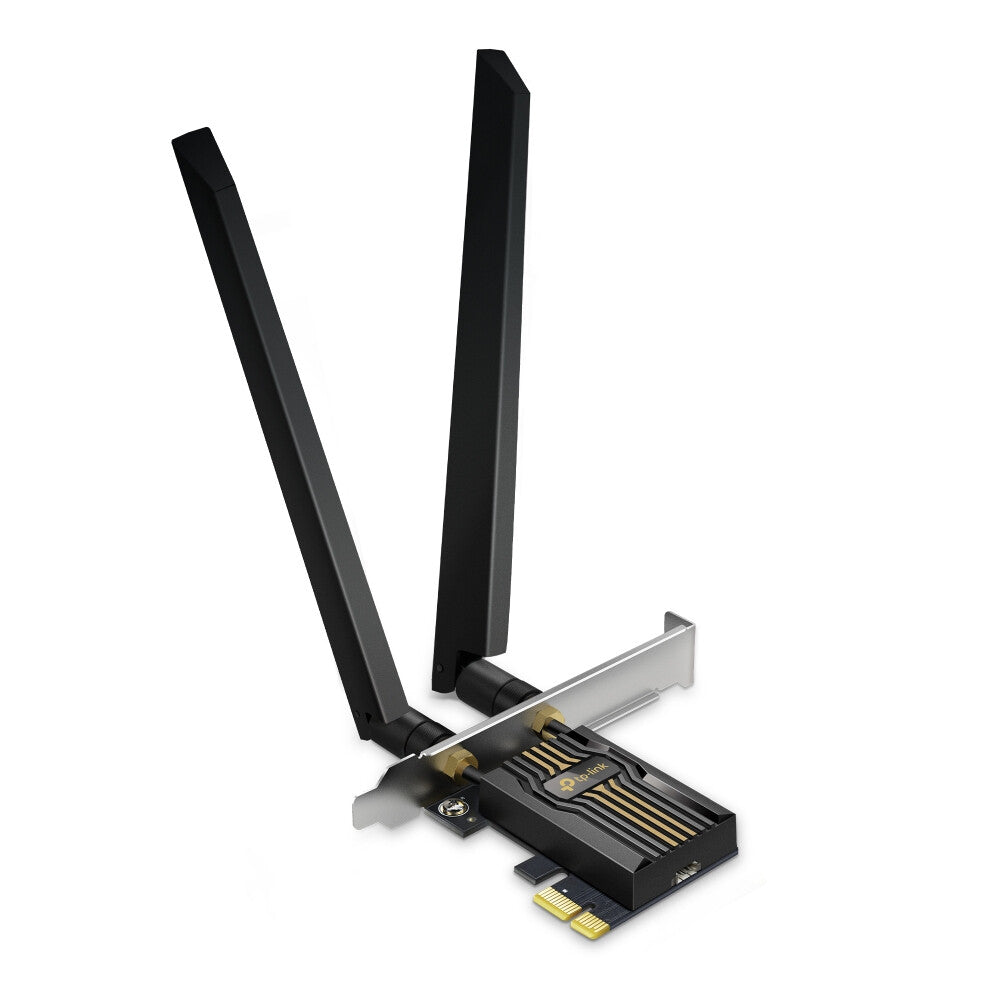

BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
Unrivaled Wi-Fi 7 Technology
Wi-Fi 7 unlocks the full potential of the 6 GHz band, doubling the bandwidth of previous generation. TBE552E delivers incredible wireless speeds and versatile bandwidth, enabling seamless multi-stream media playback. Install, connect, and experience unparalleled wireless performance.
Superior WiFi Reception
Archer TBE552E takes your PC’s Wi-Fi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC’s Wi-Fi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.
Reliable Bluetooth 5.4
Building on its predecessor’s high-speed and wide-range capabilities, Bluetooth 5.4 offers improved reliability and security. Enjoy seamless interoperability with game controllers, headphones, keyboards, and more.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Advanced Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
| Ports & interfaces |
|---|
| Interface |
WLAN / Bluetooth |
| Host interface |
PCI Express |
| Connectivity technology |
Wireless |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Security algorithms |
WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Modulation |
4096-QAM |
| WLAN data transfer rates supported |
11,54,300,574,1732,2402,688,2880 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Frequency range |
2.4 - 6 GHz |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi band |
Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Maximum data transfer rate |
5760 Mbit/s |
| Design |
|---|
| Certification |
FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| Transmitting power (FCC) |
20 - 24 dBm |
| Transmitting power (CE) |
20 dBm |
| Antenna gain level (max) |
-95 dBi |
| Antenna direction type |
Omni-directional |
| Antenna type |
2x2 |
| Antenna |
Yes |
| Antenna design |
External |
| Component for |
PC |
| Internal |
No |
| System requirements |
|---|
| Windows operating systems supported |
Windows 11 x64 |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Resource CD |
Yes |

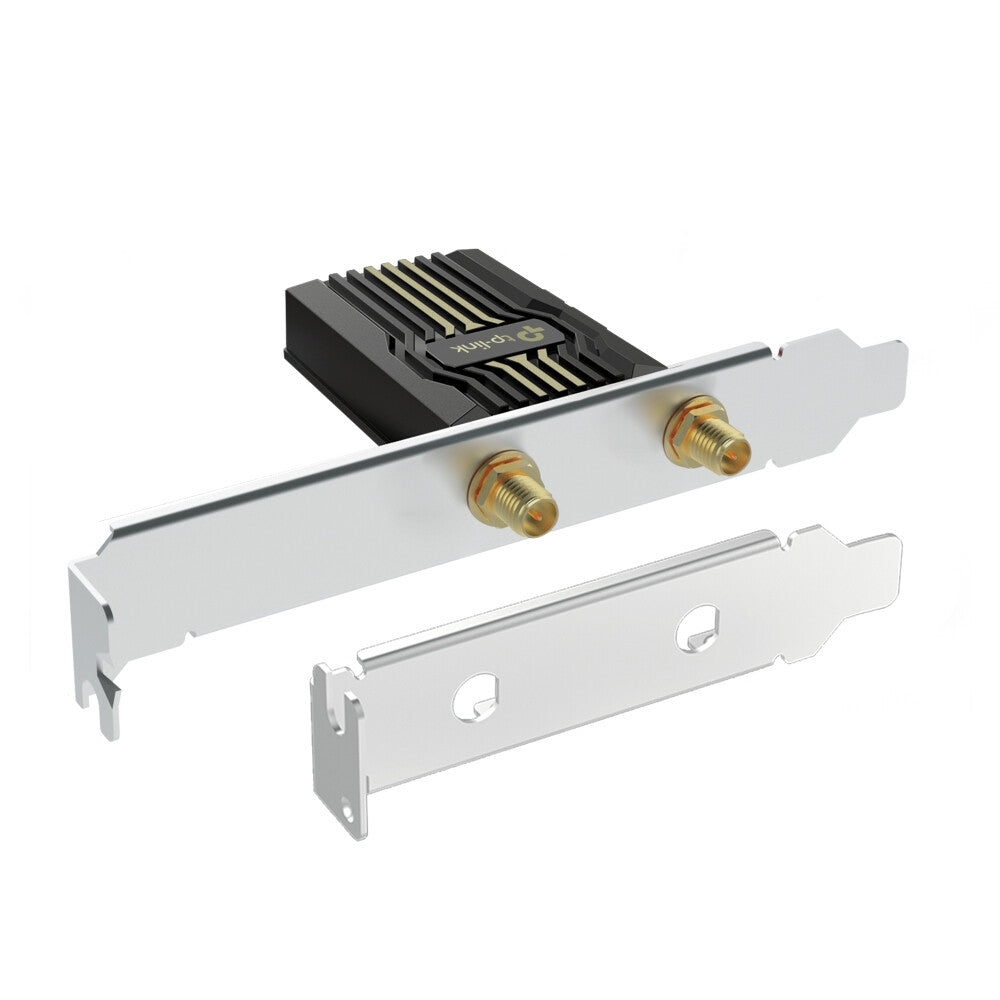

| Mounting brackets included |
Yes |
| General |
|---|
| Product family |
Archer |
