Explore the New
Era of WiFi

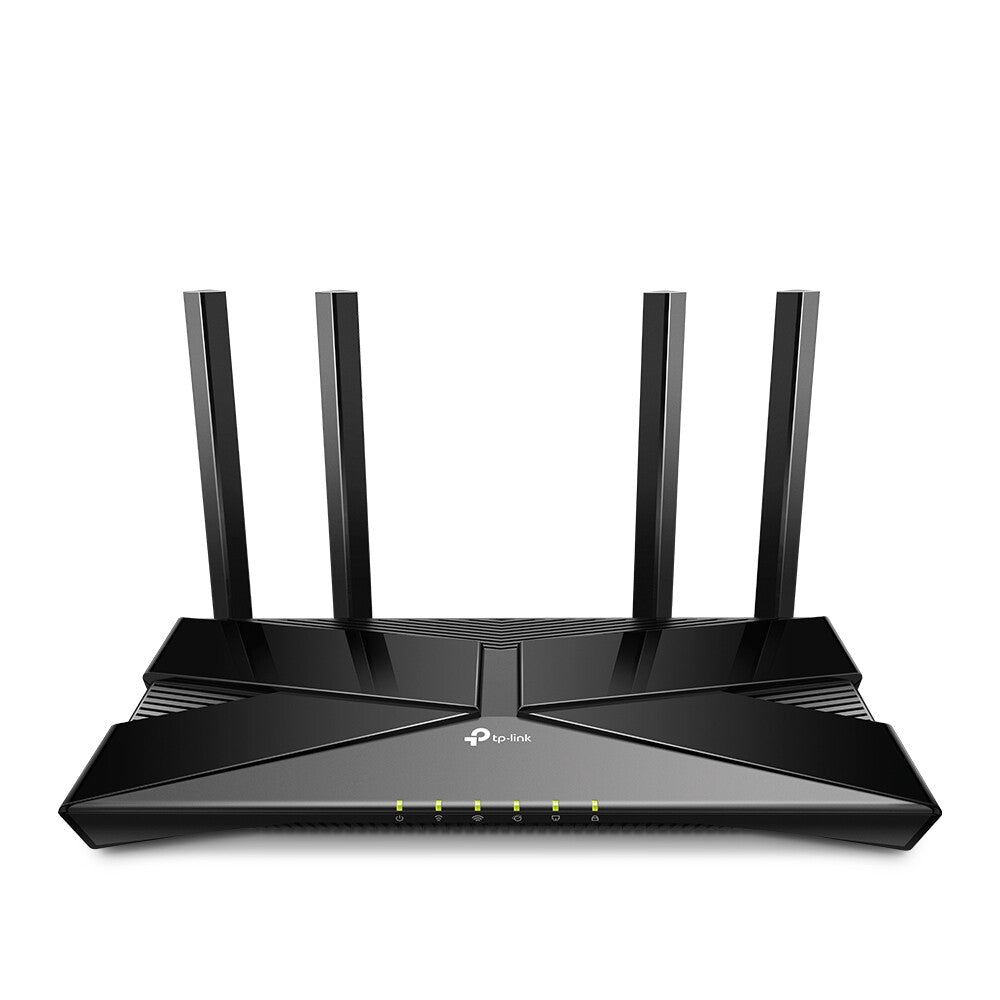

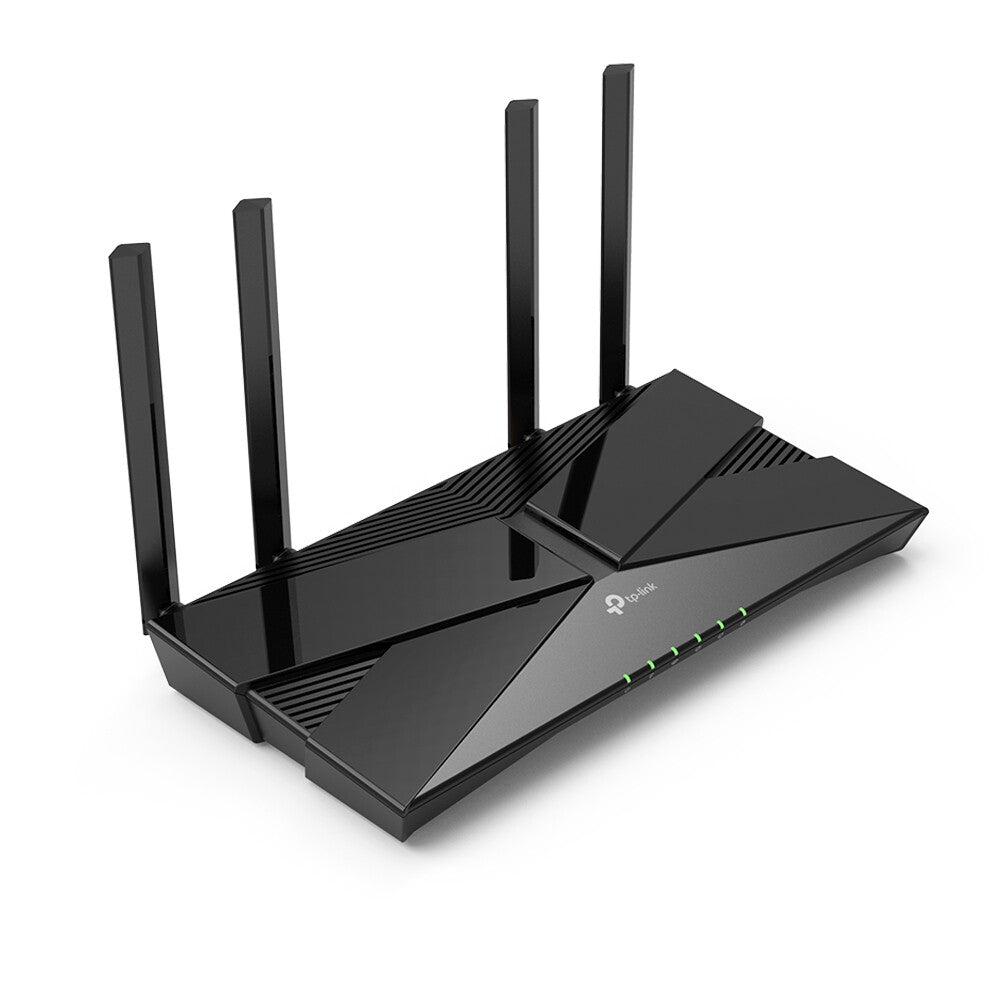

AX1800 Dual Band Wi-Fi 6 Router
The Next Generation of WiFi is Upon Us
Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in WiFi development, delivering a huge boost in speed and total capacity. Mainstream adoption of Wi-Fi 6 is inching ever closer with more and more AX clients available. It's the right time to upgrade your router to the newest generation of WiFi !
Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.
More Connections at High Speed
Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.
OFDMA
OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
Extensive WiFi Coverage
Beamforming technology, and four high-gain antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.
Create Smart Mesh WiFi with Great Flexibility
EX220 is compatible with EasyMesh. It can form a unified mesh WiFi network, seamlessly covering the entire home together with added-on EX220 or other TP-Link EasyMesh models.
WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Gigabit Broadband Internet Access

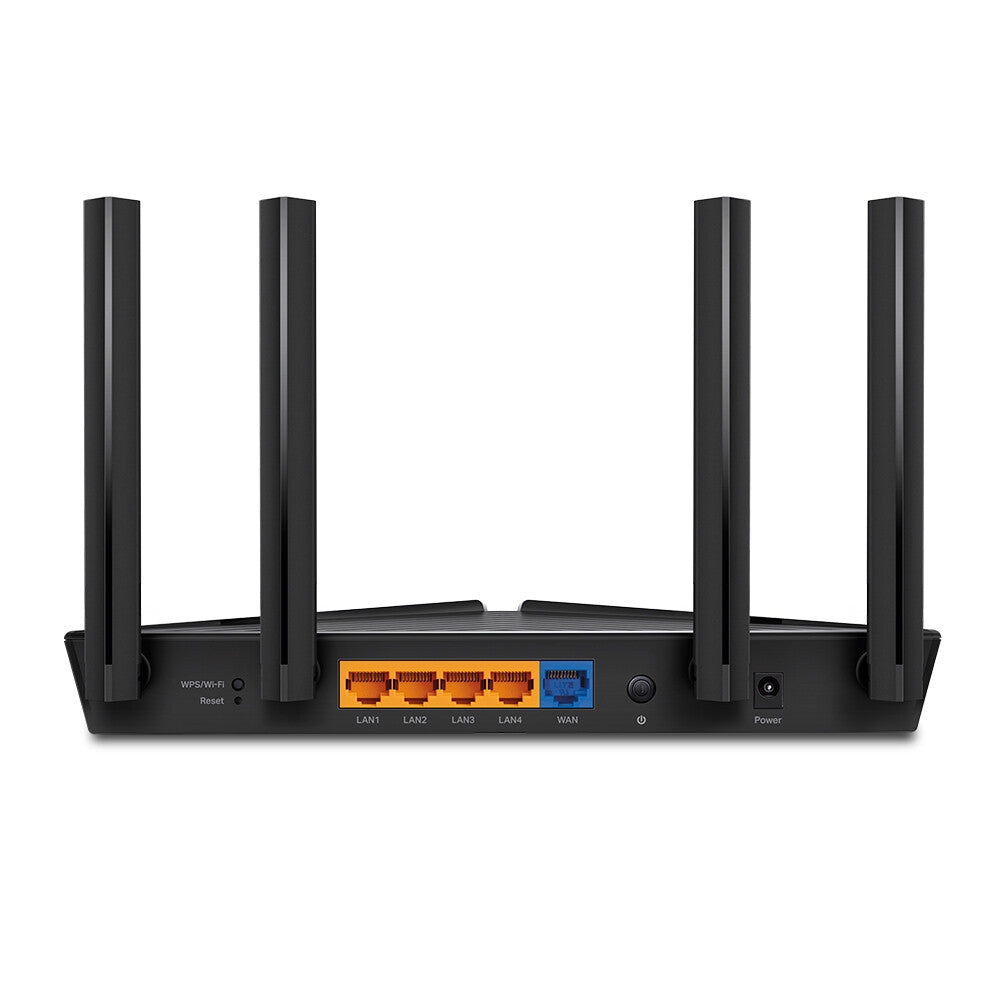

The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast and reliable wired connections.
Easy Setup and Use
Whether you prefer the intuitive Aginet app or the powerful web interface, you can set up your device in minutes. The Agient app allows you to manage network settings from your smart phone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations support TR-181, TR-111, and TR-143 protocols.
Aginet Solution:
End-to-End Management System for ISPs
Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) |
1201 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
1800 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
PPTP, OpenVPN, IPSec |
| VPN Passthrough |
Yes |
| Wireless radio |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 5G |
No |
| 3G |
No |
| 4G |
No |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| MU-MIMO technology |
Yes |
| MIMO |
Yes |
| WPS push button |
Yes |
| Reset button |
Yes |
| Wireless statistics |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| DoS attack prevention |
Yes |
| Schedule access |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Firewall security |
SPI |
| Access Control List (ACL) |
Yes |
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
SSID, WPA, WPA2, WPA3 |
| Protocols |
|---|
| Supported network protocols |
IPv4, IPv6 |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| Built-in display |
No |
| On/off switch |
Yes |
| Indication light |
Yes |
| Product colour |
Black |
| Product type |
Tabletop router |
| Certificates |
|---|
| Certification |
FCC |
| Compliance certificates |
CE |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Antenna included |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Antenna |
|---|
| Transmit power |
CE: |
| Antennas quantity |
4 |
| Antenna gain level (max) |
5 dBi |
| Antenna design |
External |
| Power |
|---|
| External power adapter |
Yes |
| Power source type |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Weight & dimensions |
|---|
| Width |
260.2 mm |
| Depth |
135 mm |
| Height |
41.6 mm |
| Packaging data |
|---|
| Number of products included |
1 pc(s) |
| Other features |
|---|
| Input current |
1 A |
| Input voltage |
12 V |
