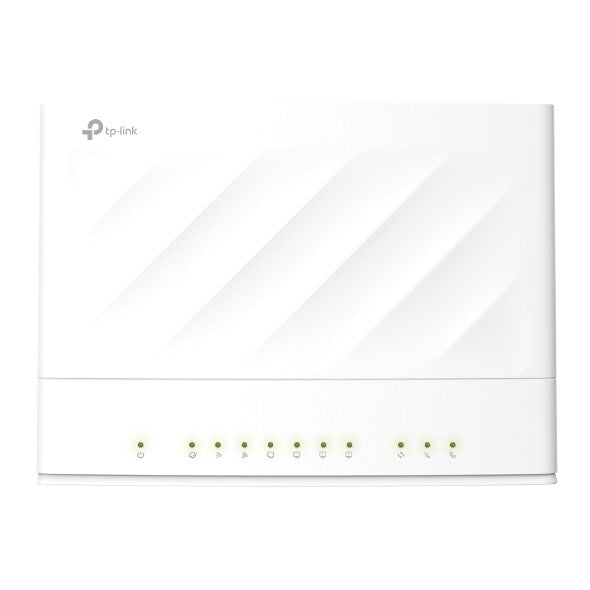

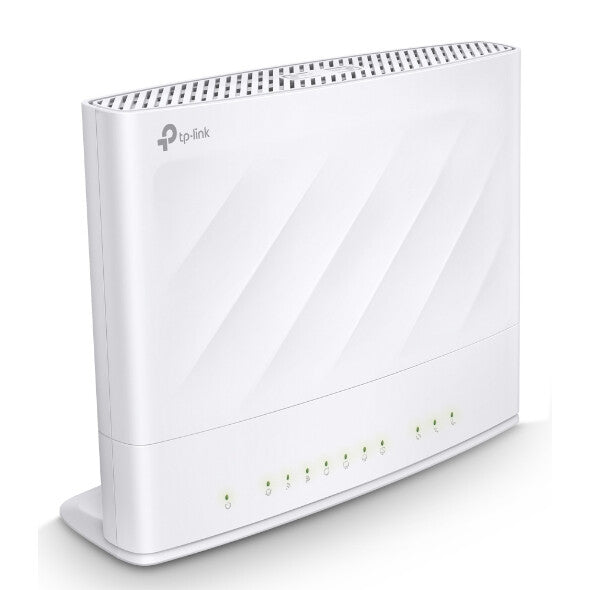

Wi-Fi Router
TP-Link’s Wi-Fi routers are some of the most competitive CPEs on the market, known for their reliability and cost-effectiveness, Making use of various technologies such as Wi-Fi 6, and with support of dual band 5 GHz and 2.4 GHz wireless bands, these routers not only deliver faster than ever speed, but also provide a stable network environment to help ISPs to provide better user experience.
Multi-Application Scenario
Easily share files & media with networked devices. With FXS ports, users can make or receive phone calls over the Internet simply by connecting the devices to the existing telephone set.
Ultrafast Dual Band Wi-Fi
Provide ultrafast dual band Wi-Fi speed in both 2.4GHz and 5GHz band, ensuring high data transmission.
MU-MIMO and Beamforming for Better Performance
MU-MIMO technology serves multiple devices at once, reducing wait time, increasing Wi-Fi throughput for every device, and making each stream more efficient.
Beamforming technology detects the location of your connected devices and concentrates the Wi-Fi signal towards them to create stronger overall connections.
TR-069 Protocol Enables Easy Remote Management
TR-069 protocol enables operators to remotely configure and manage end-users’ devices.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) |
1201 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
1201 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
PPTP, OpenVPN, IPSec |
| Media server |
Yes |
| USB sharing |
Yes |
| Support Samba (storage) |
Yes |
| Static route |
Yes |
| Networking standards |
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
3 |
| Management features |
|---|
| MU-MIMO technology |
Yes |
| WPS push button |
Yes |
| Intelligent Mesh technology |
Yes |
| Reset button |
Yes |
| Wireless statistics |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Security |
|---|
| IP address filtering |
Yes |
| MAC address filtering |
Yes |
| DoS attack prevention |
Yes |
| Schedule access |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Firewall |
Yes |
| Security algorithms |
WPA, WPA2, WPA3 |
| Protocols |
|---|
| Supported network protocols |
IPv4, IPv6 |
| DHCP server |
No |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| LED indicators |
Status |
| Wall mountable |
Yes |
| Product colour |
White |
| Product type |
Tabletop router |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Certificates |
|---|
| Certification |
THIS |
| Antenna |
|---|
| Transmit power |
23 dBmW |
| Antenna design |
Internal |
| Power |
|---|
| Output current |
1.5 A |
| Output voltage |
12 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| System requirements |
|---|
| Mac operating systems supported |
MacOS |
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98, Windows NT, Windows Vista, Windows XP |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Weight & dimensions |
|---|
| Width |
148.6 mm |
| Depth |
199.7 mm |
| Height |
67.5 mm |
