SKU: EAP211-BRIDGE KIT

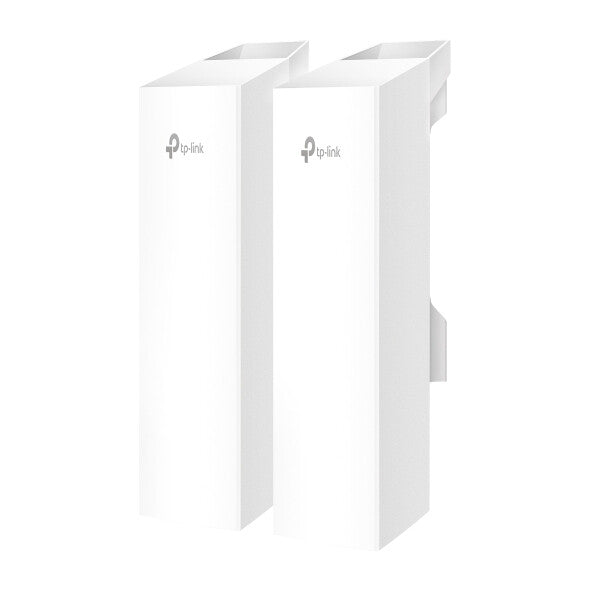

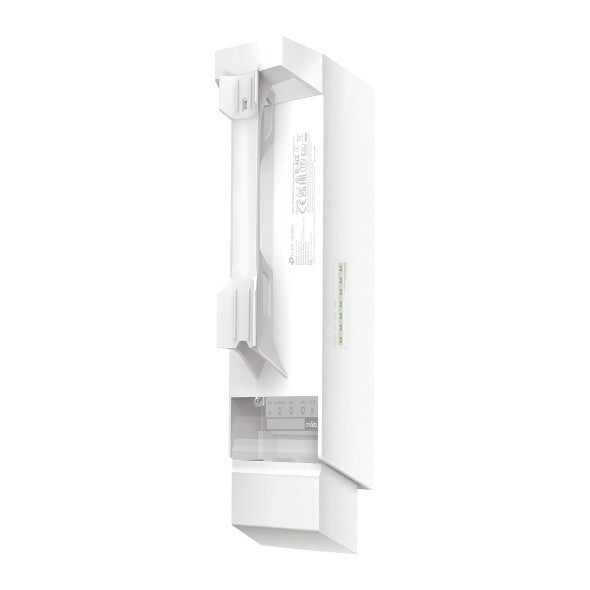

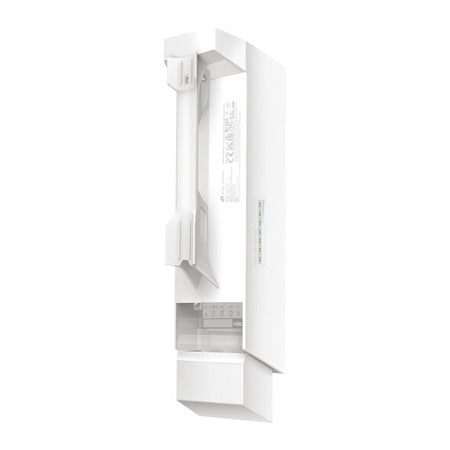

TP-Link EAP211-BRIDGE KIT bridge/repeater Network bridge 867 Mbit/s White

TP-LINK
£103.09
iFrame
  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
  • Ideal for long-range wireless transmission up to 1 km.*2
  • Auto-pairing and agile LEDs for efficient deployment

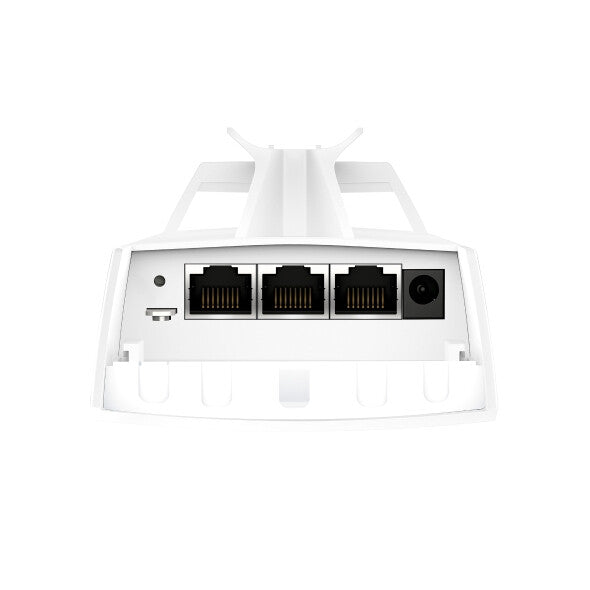

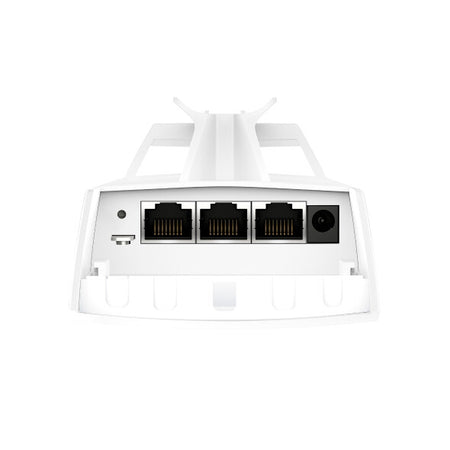

  • 3× Gigabit Ethernet ports for more high-speed IP camera connections
  • Supports Omada SDN for remote and centralized management
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
  • Supports Passive PoE for flexible deployment (adapter included)
Data transmission
Maximum transfer distance 1000 m
Maximum data transfer rate 867 Mbit/s
Antenna
Antenna gain level (max) 7 dBi
Antenna type 2x2
Antenna design Internal
Wireless LAN features
Frequency band 5 GHz
WLAN data transfer rate (max) 867 Mbit/s
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Network
Cabling technology 10/100/1000Base-T(X)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 3
Management features
Web-based management Yes
Features
Reset button Yes
International Protection (IP) code IP65
LED indicators Power
Product colour White
Mounting type Pole
Product type Network bridge
Power
Power over Ethernet (PoE) voltage 24 V
Power over Ethernet (PoE) Yes
DC input voltage 12 V
Power source type DC, PoE
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -40 - 70 °C
Certificates
Certification CE, FCC, RoHS
Weight & dimensions
Height 60 mm
Depth 79 mm
Width 224 mm
