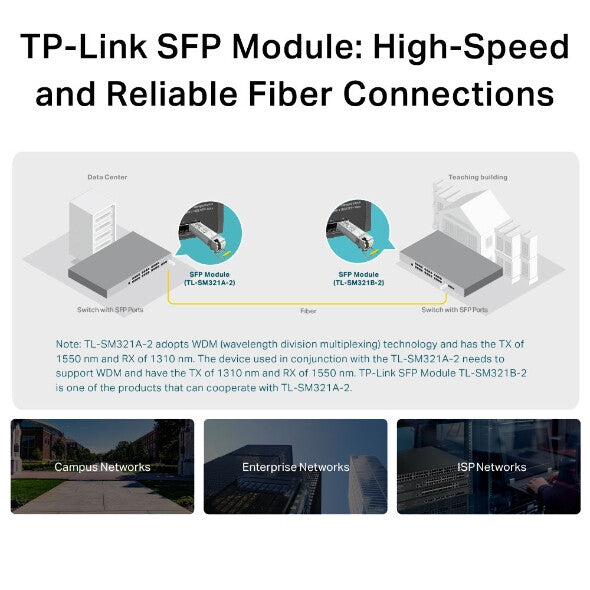

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.
| Performance |
|---|
| Wavelength-division multiplexing (WDM) |
Yes |
| Fiber ethernet cabling technology |
1000BASE |
| Networking standards |
IEEE 802.3z |
| Rx wavelength (max) |
1310 nm |
| Tx wavelength (max) |
1550 nm |
| Maximum transfer distance |
1000 m |
| SFP transceiver standard |
BX |

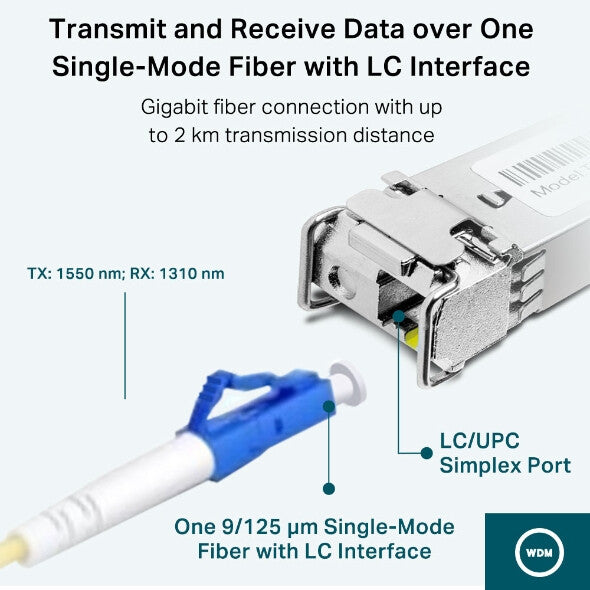

| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Fiber optic connector |
LC (UPC) |
| Multi-mode fiber (MMF) supported |
No |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-swap |
Yes |
| Product colour |
Metallic |
| Power |
|---|
| Input voltage |
3.3 V |
| Certificates |
|---|
| Certification |
CE, FCC |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
60 g |
| Package height |
38.5 mm |
| Package depth |
122.5 mm |
| Package width |
81.5 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
