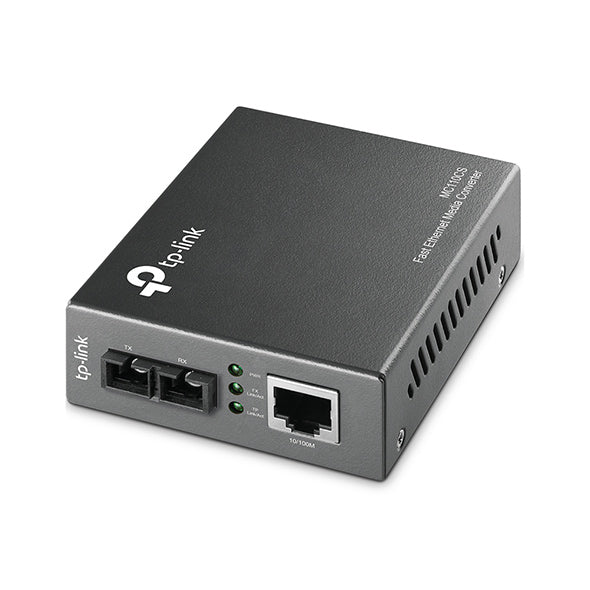

The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media and vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 12.5 miles (20km).
| Network |
|---|
| Cable types supported |
Cat3, Cat4, Cat5 |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-FX, 100BASE-T |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Maximum data transfer rate |
100 Mbit/s |
| Performance |
|---|
| Fiber mode structure |
Single-mode |
| Wavelength |
1310 nm |
| Maximum transfer distance |
12500 m |
| Features |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Internal |
No |
| Ports & interfaces |
|---|
| Fiber optic connector |
SC |
| Fiber ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| Power consumption (max) |
2.4 W |
| Weight & dimensions |
|---|
| Height |
27 mm |
| Depth |
73 mm |
| Width |
95 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
