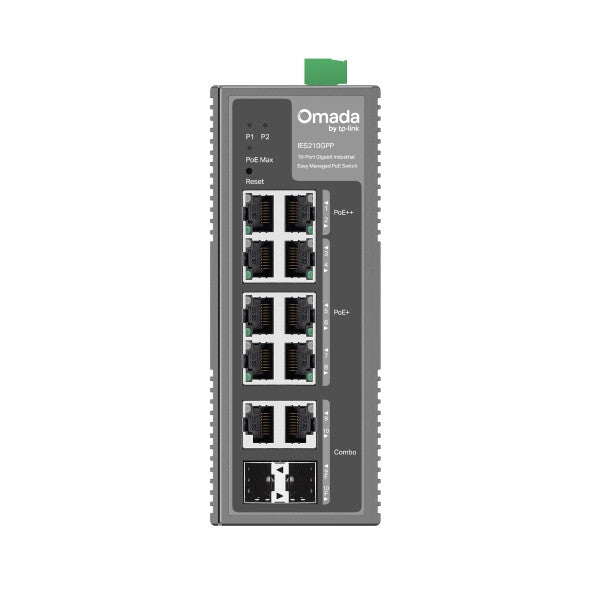

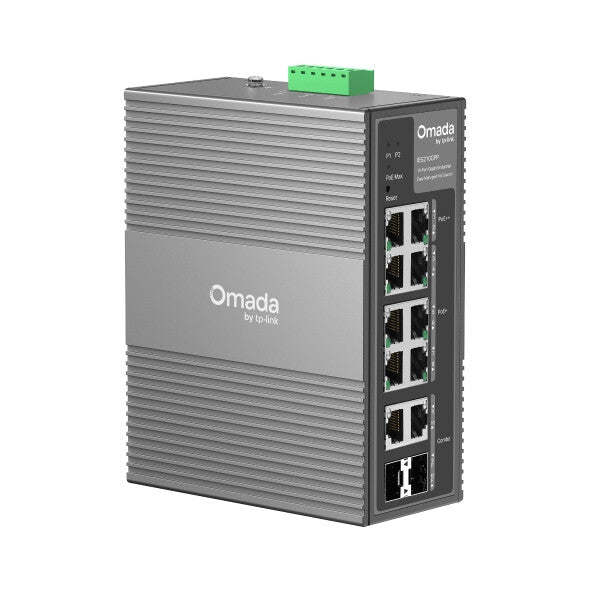

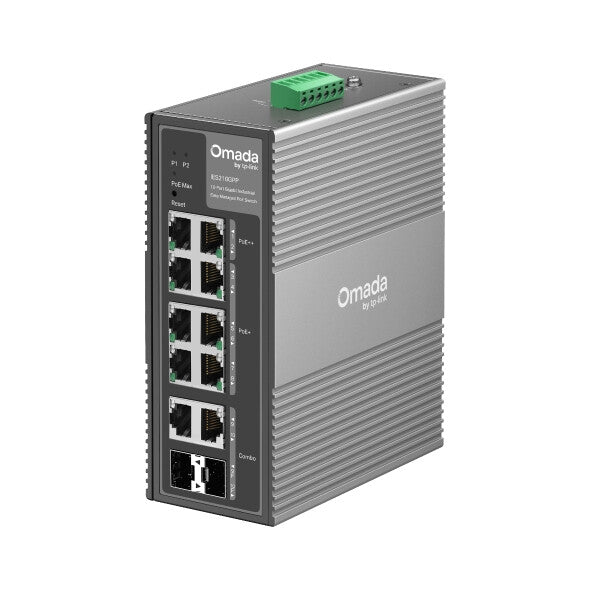

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

SKU: IES210GPP
£189.79 inc. VAT
  • 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch

Industrial-Grade Protection Built for Harsh Environments

- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature

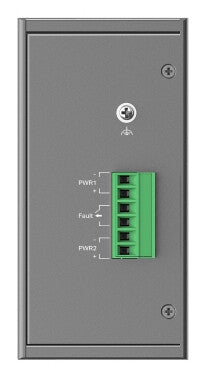

- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting

Management features
Web-based management Yes
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch type Managed
Ports & interfaces
Combo SFP ports quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Number of VLANs 4000
VLAN support Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Auto-negotiation Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Data transmission
Packet buffer memory 4000 MB
Jumbo frames 15000
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 14.88 Mpps
Switching capacity 20 Gbit/s
MAC address table 8000 entries
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP client
Multicast features
Multicast support Yes
Design
LED indicators Yes
Product colour Grey
Form factor DIN rail
Rack mounting Yes
Power
DC input voltage 12 - 57 V
Power source DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 240 W
Power over Ethernet 4PPoE (PoE++) ports quantity 2
Power over Ethernet plus (PoE+) ports quantity 6
Power over Ethernet (PoE) Yes
Weight & dimensions
Height 60 mm
Depth 120 mm
Width 155 mm
General
Product family Omada
