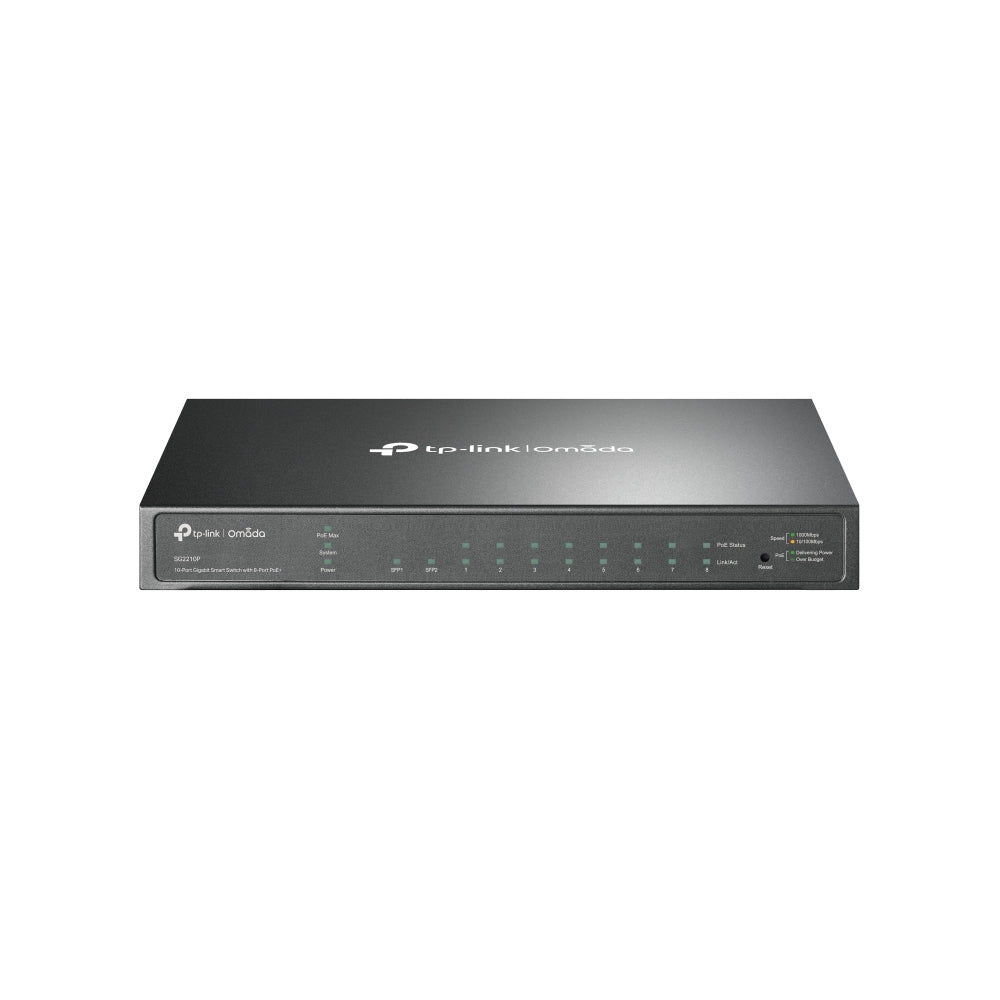

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| Management features |
|---|
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Power connector |
DC-in jack |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Auto-negotiation |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
|---|
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Forwarding rate |
14.88 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| IP-MAC-Port binding |
Yes |
| Static port security |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
MAC-based authentication, Port-based authentication |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Multicast features |
|---|
| Multicast Listener Discovery (MLD) snooping |
Y |
| Multicast support |
Yes |
| Protocols |
|---|
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power consumption (max) |
77.8 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
DC/PoE |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
26 mm |
| Depth |
126 mm |
| Width |
209 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
