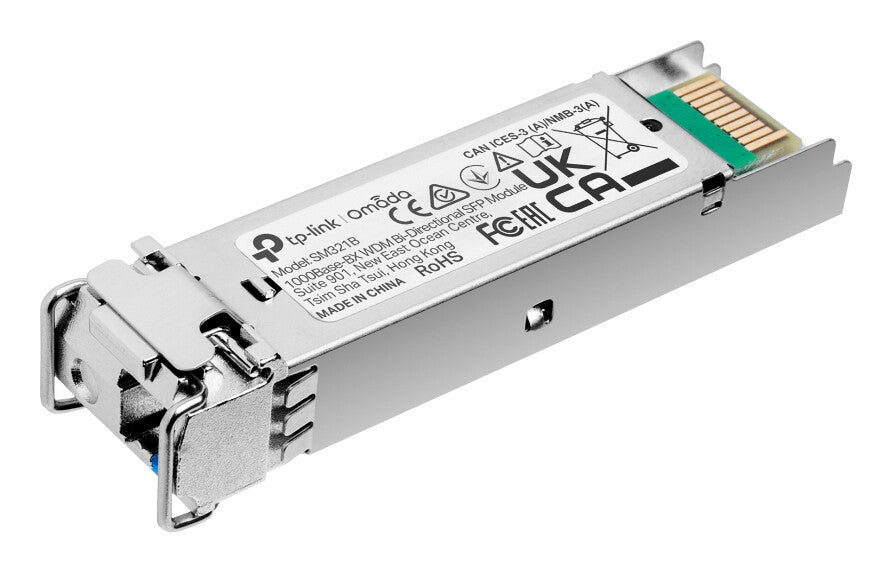

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module

SKU: SM321B

£25.62 inc. VAT

WDM Bi-Directional SFP Module
Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

TP-Link´s SM321B (TL-SM321B) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction. You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability.

Performance
Digital Diagnostics Monitoring (DDM)	Yes
Rx wavelength (max)	1550 nm
Tx wavelength (max)	1310 nm
Maximum transfer distance	20000 m
Fiber cable diameters supported (core/cladding)	9/125 µm
Single-mode fiber (SMF) supported	Yes
Interface type	SFP
Maximum data transfer rate	1250 Mbit/s
SFP transceiver type	Fiber optic

Features
Hot-swap	Yes
Product colour	Silver

Power
Input voltage	3.3 V

Certificates
Certification	FCC, CE

Operational conditions
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C
Maximum operating temperature	70 °C
Minimum operating temperature	0 °C

Weight & dimensions
Height	12.9 mm
Depth	14.6 mm
Width	55.4 mm

Packaging content
Quantity per pack	1 pc(s)

Packaging data
User guide	Yes

General
Product family	Omada
