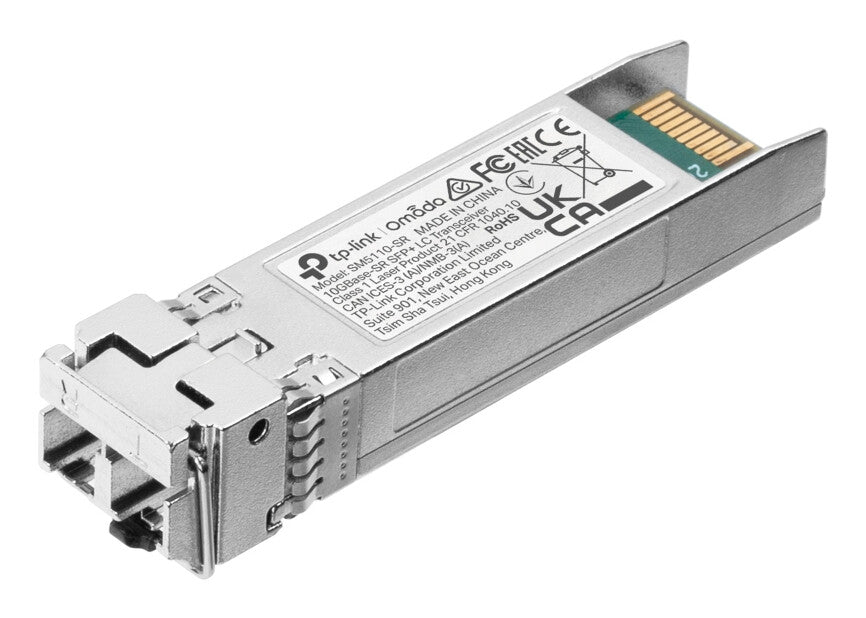

TP-Link Omada 10GBase-SR SFP+ LC Transceiver

SKU: SM5110-SR

£34.28 inc. VAT

Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like SG3428X, TL-SG3428XMP, and more

The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Performance
Digital Diagnostics Monitoring (DDM)	Yes
Wavelength	850 nm
Maximum transfer distance	300 m
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Fiber optic connector	LC (UPC)
Multi-mode fiber (MMF) supported	Yes
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
SFP transceiver type	Fiber optic

Features
Hot-swap	Yes
Product colour	Silver

Power
Input voltage	3.3 V

Certificates
Certification	FCC, CE

Operational conditions
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 80 °C
Operating temperature (T-T)	0 - 70 °C
Maximum operating temperature	70 °C
Minimum operating temperature	0 °C

Weight & dimensions
Height	12.2 mm
Depth	14.5 mm
Width	61.3 mm

Packaging content
Quantity per pack	1 pc(s)

General
Product family	Omada
