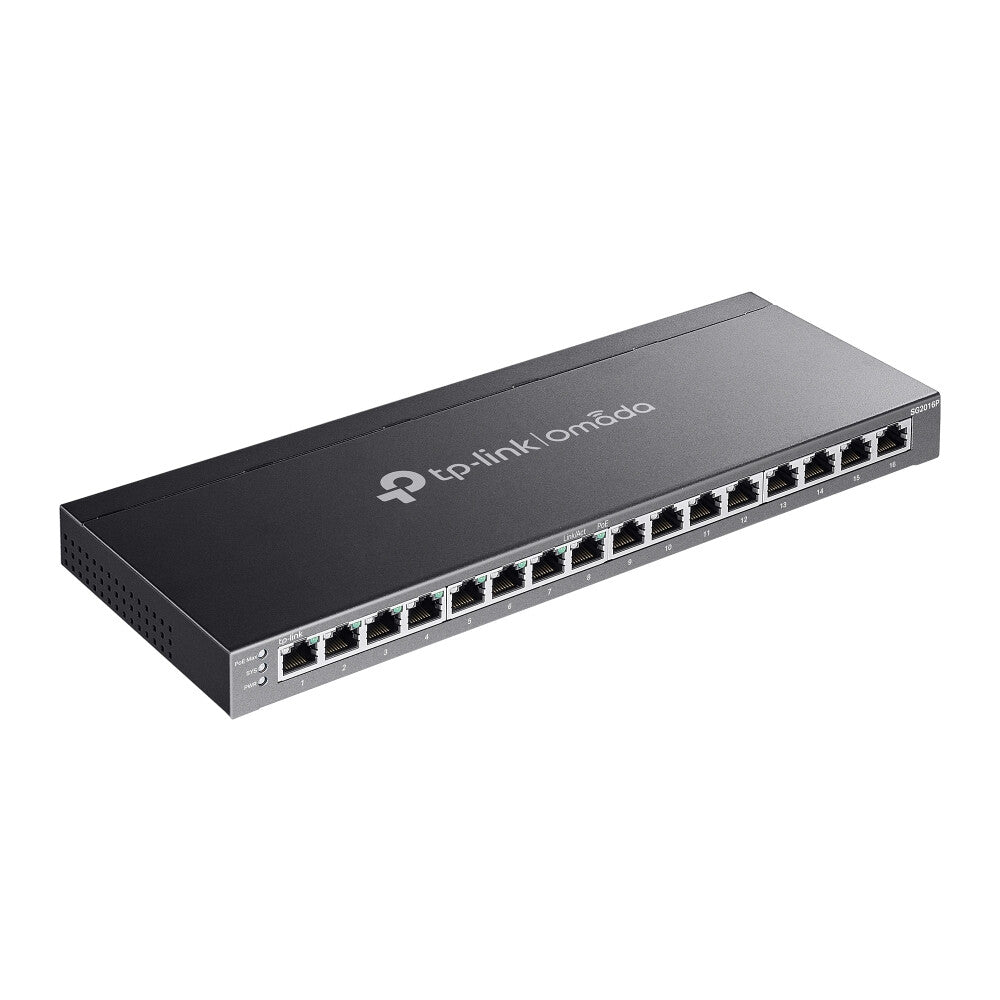

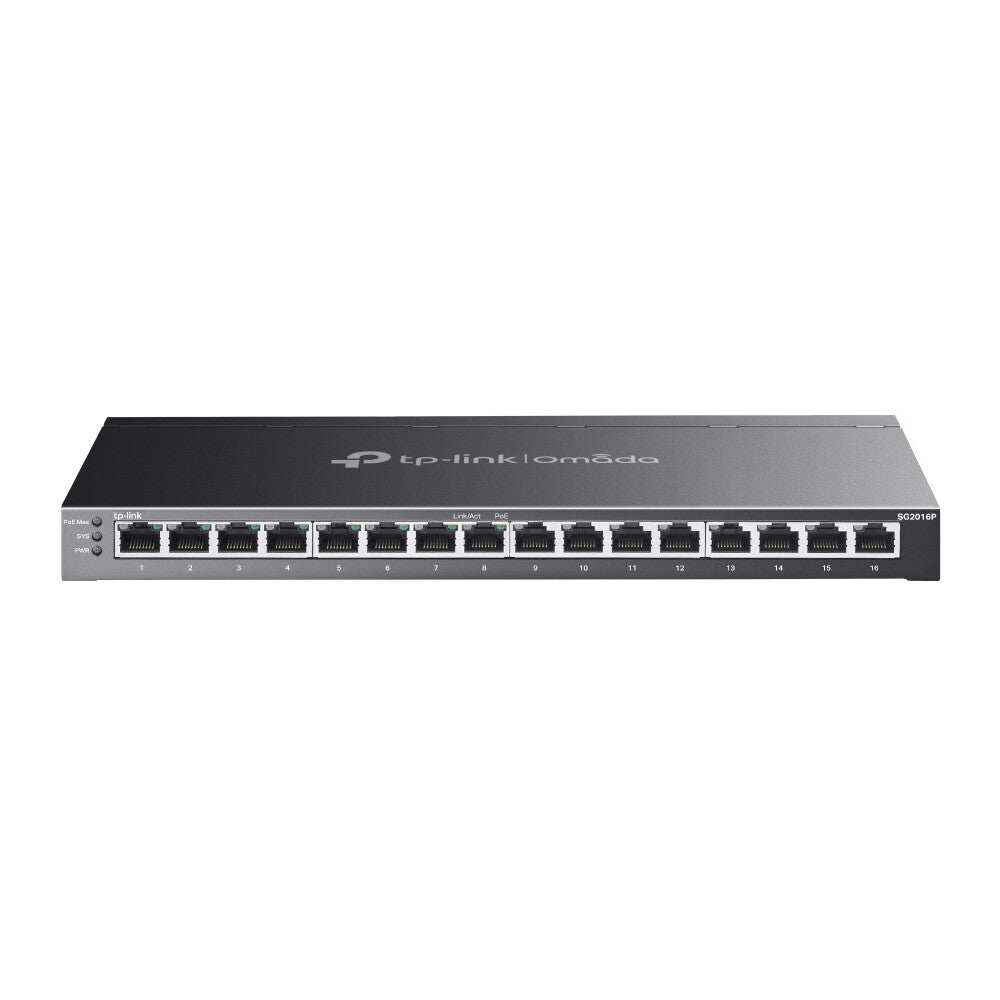

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| Management features |
|---|
| MIB support |
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Ports & interfaces |
|---|

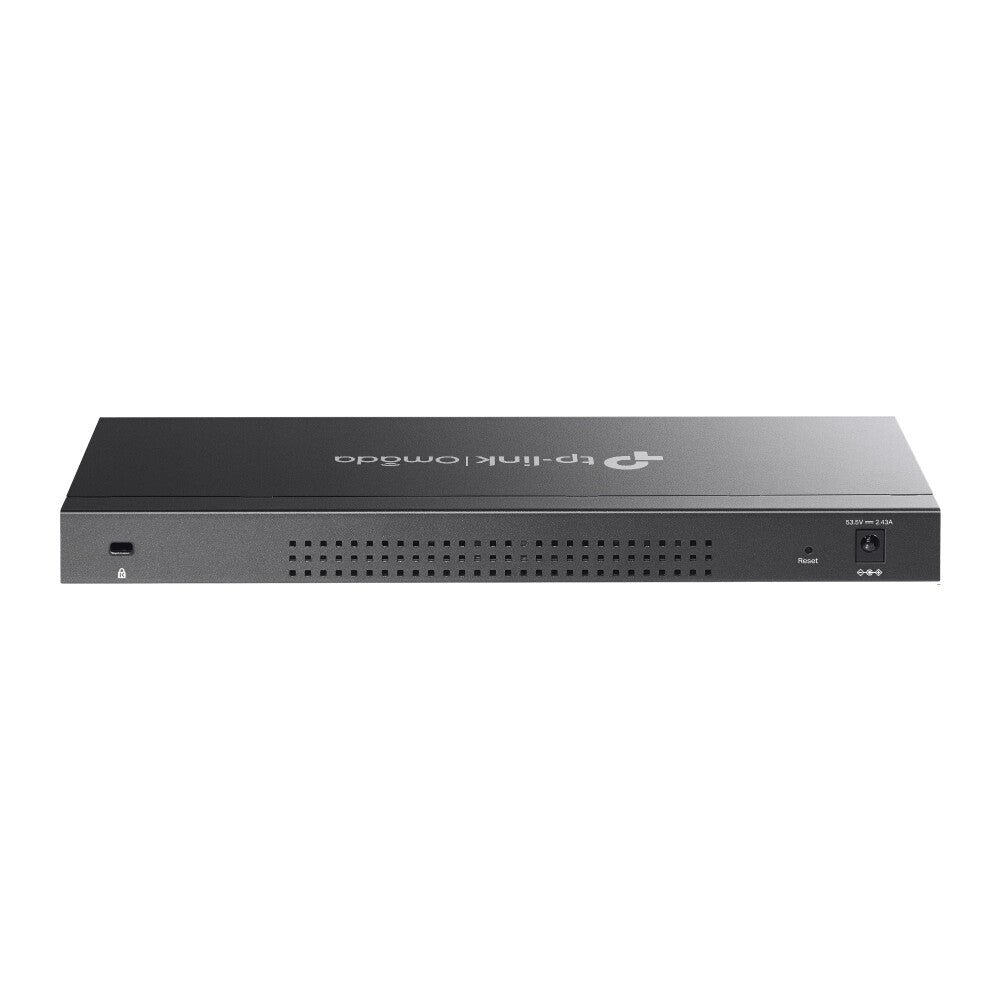

| Power connector |
DC-in jack |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
|---|
| Number of VLANs |
4000 |
| Virtual LAN features |
Multicast VLAN, Tagged VLAN, Voice VLAN |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Auto-negotiation |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Forwarding rate |
23.81 Mpps |
| Switching capacity |
32 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| IP-MAC-Port binding |
Yes |
| Queue scheduling algorithms |
SP, Weighted Round Robin (WRR) |
| MAC address entries |
Dynamic MAC address entries, Static MAC address entries |
| SSH/SSL support |
Yes |
| Security algorithms |
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| BPDU filtering/protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
|---|
| Multicast Listener Discovery (MLD) snooping |
MLD v1, MLD v2 |
| Multicast support |
Yes |
| Protocols |
|---|
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Supported network protocols |
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| Design |
|---|
| LED indicators |
PoE, Power, System |
| Product colour |
Black |

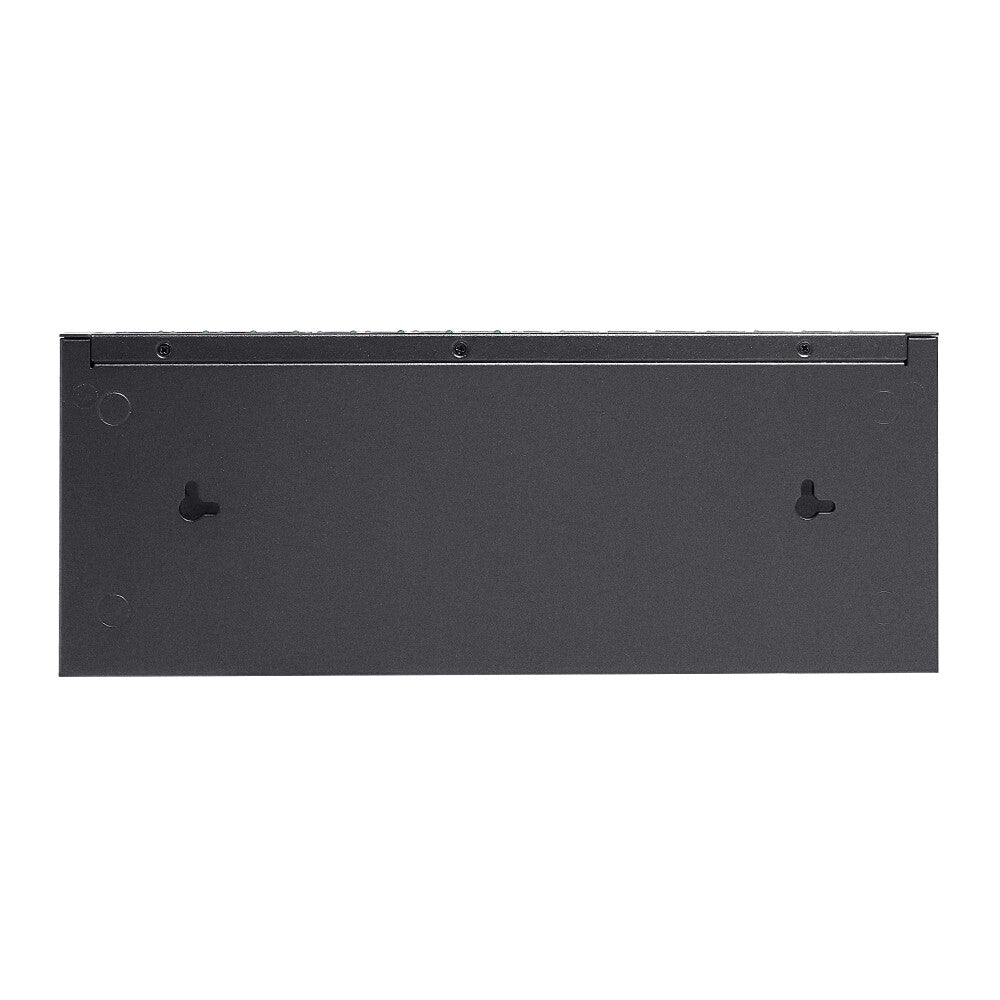

| Rack mounting |
Yes |
| Performance |
|---|
| Fanless |
Yes |
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power consumption (max) |
146.5 W |
| DC input voltage |
53.5 V |
| Power source |
DC/PoE |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
499.98 BTU/h |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
25.4 mm |
| Depth |
111.7 mm |
| Width |
286 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
