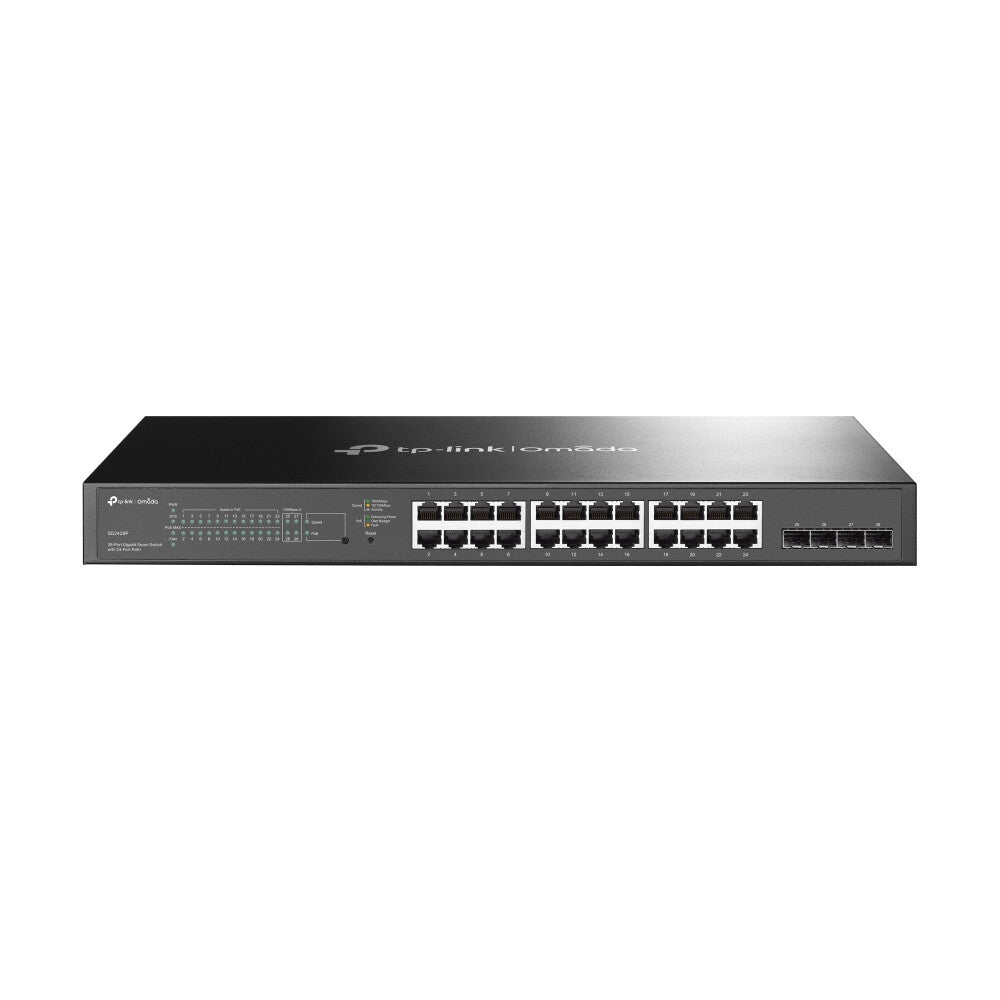

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| Management features |
|---|
| MIB support |
Y |
| System event log |
Yes |
| ARP inspection |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L2+ |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| SFP module slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
|---|
| Number of VLANs |
4000 |
| Virtual LAN features |
MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology |
10BASE-T, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber |
|---|
| Fiber ethernet cabling technology |
1000BASE-X |
| Data transmission |
|---|
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Forwarding rate |
41.66 Mpps |
| Switching capacity |
56 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| IP-MAC-Port binding |
Yes |
| Authentication type |
RADIUS |
| Queue scheduling algorithms |
SP, WRR+SP, Weighted Round Robin (WRR) |
| SSH/SSL support |
Yes |
| Security algorithms |
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| BPDU filtering/protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| Design |
|---|
| Number of fans |
2 fan(s) |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power consumption (max) |
301.1 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
250 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
1052.94 BTU/h |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Height |
44 mm |
| Depth |
220 mm |
| Width |
440 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Rack mount kit |
Yes |
| Cables included |
AC |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
