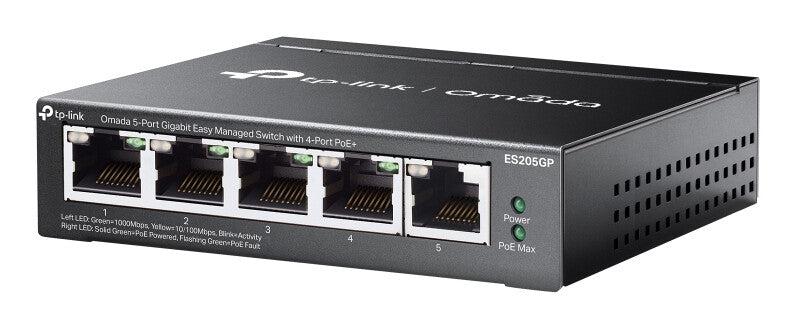

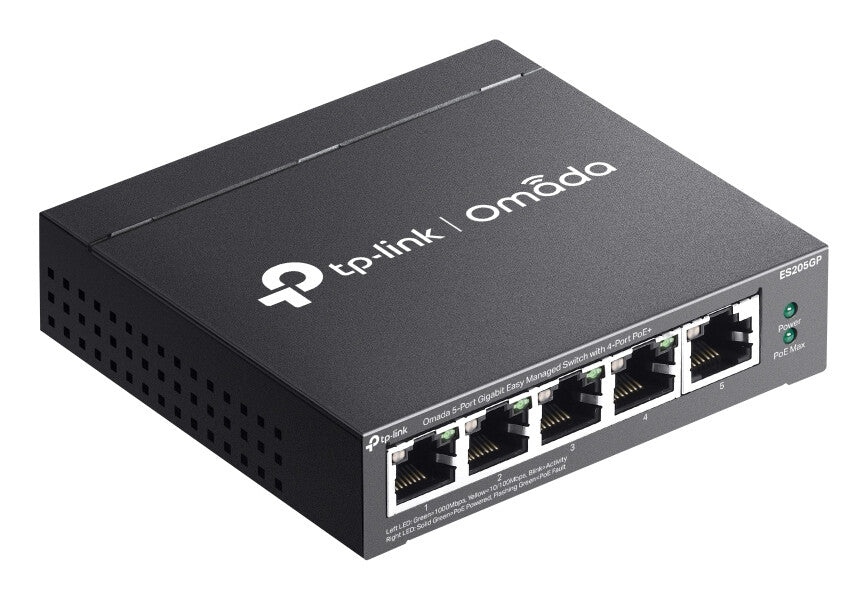

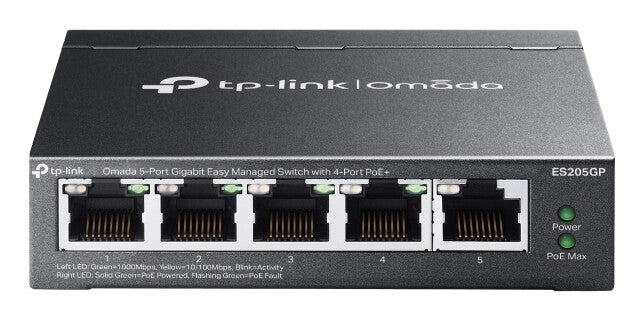

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
| Management features |
|---|
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
|---|
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Auto-negotiation |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| Optical fiber |
|---|
| Transmission distance (max) |
0.25 km |
| Data transmission |
|---|
| Packet buffer memory |
4 MB |
| Jumbo frames |
15 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
7.4 Mpps |
| Switching capacity |
10 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Design |
|---|

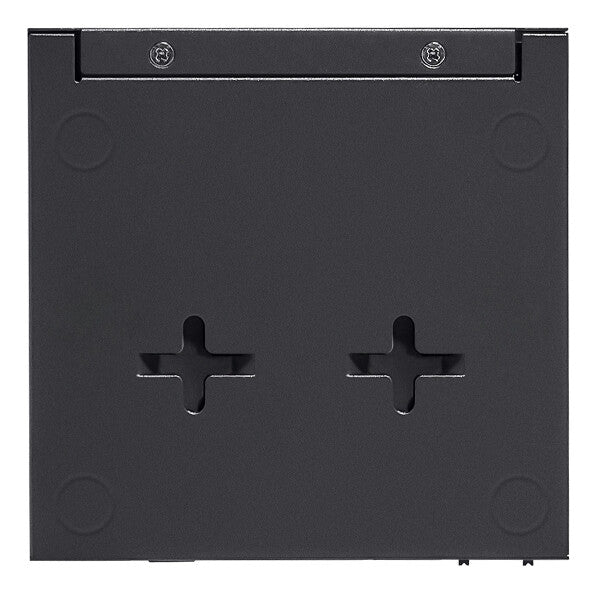

| Wall mountable |
Yes |
| LED indicators |
Yes |

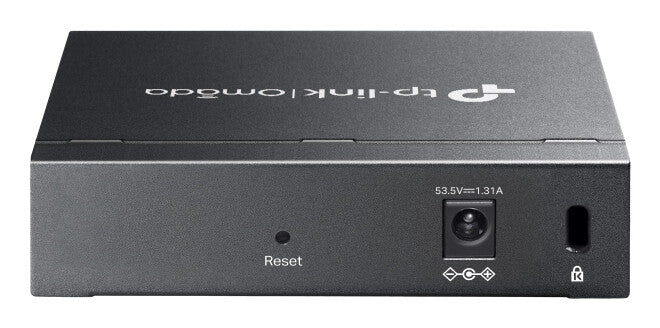

| Reset button |
Yes |
| Product colour |
Black |
| Power |
|---|
| DC input voltage |
53.5 V |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
65 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
25 mm |
| Depth |
98 mm |
| Width |
100 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Packaging data |
|---|
| Package type |
Box |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
