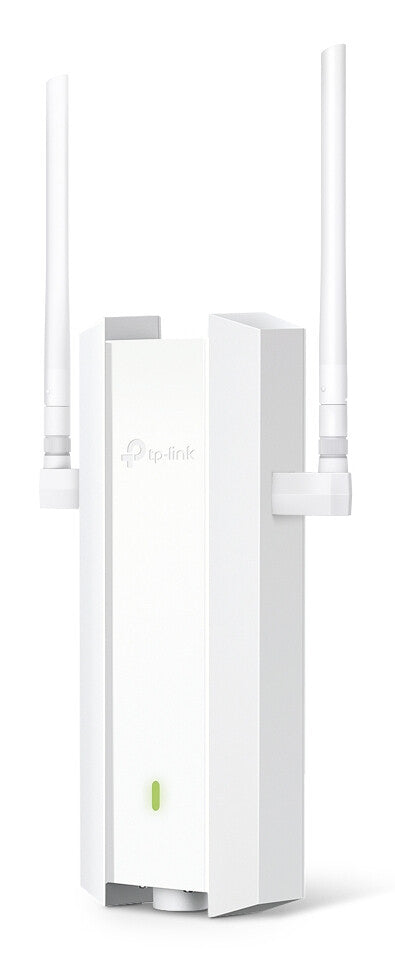

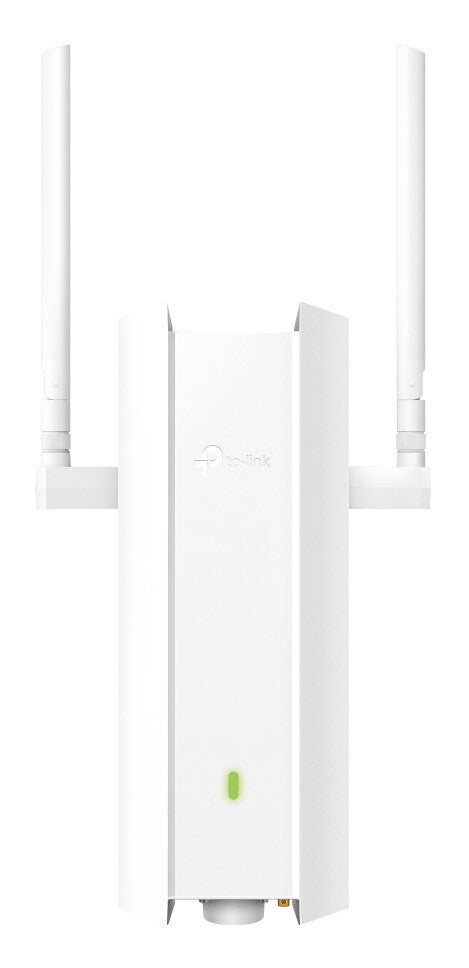

Long Distance Starts with External Antennas
Two detachable external antennas for 5 GHz and 2.4 GHz provide optimal coverage and greater flexibility for your network.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP625-Outdoor HD withstands the most extreme environments.
Flexible Deployment with Omada Mesh and PoE Support
- Less Wiring with Omada Mesh
- Powered with PoE+ Switch
- Powered with Passive PoE
| Features |
|---|
| Number of users |
1020 user(s) |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band |
2.4 - 5 GHz |
| Maximum data transfer rate (5 GHz) |
1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate |
1800 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| IP address filtering |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Reset button |
Yes |
| International Protection (IP) code |
IP67 |
| Product colour |
White |
| Placement |
Pole, Wall |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna type |
External |
| General |
|---|
| Product family |
Omada |
| Weight & dimensions |
|---|
| Height |
56.9 mm |
| Depth |
182.2 mm |
| Width |
280.4 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
