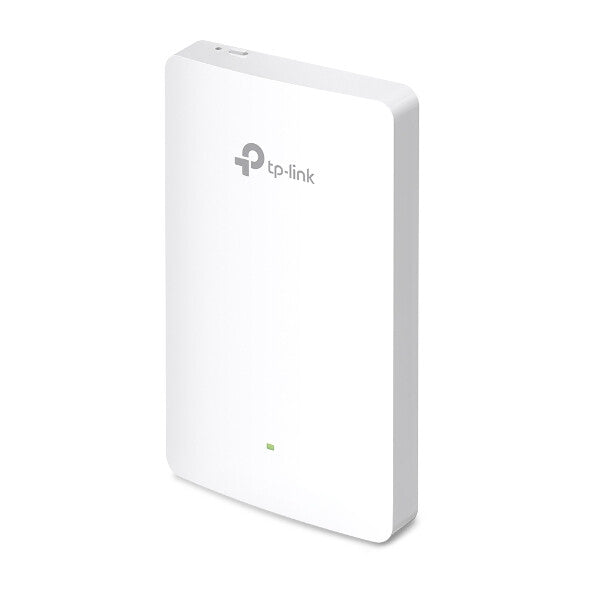

AX1800 Wall Plate WiFi 6 Access Point
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..

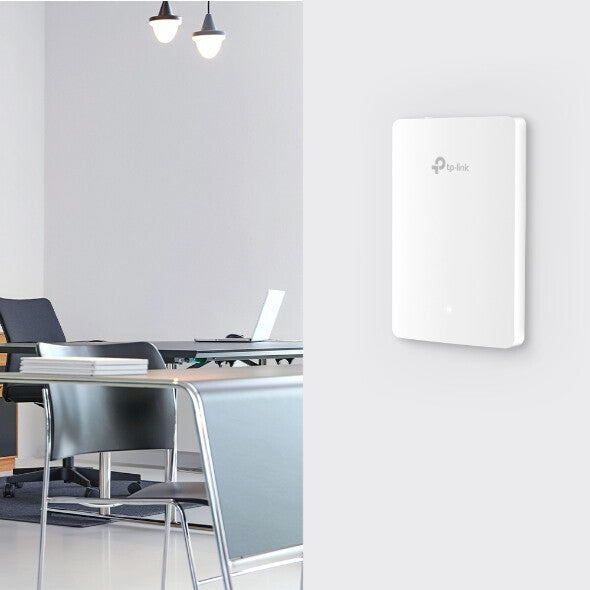

Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
| Features |
|---|
| Transmitting power (CE) |
20 dBm |
| Transmitting power (FCC) |
21 dBm |
| BeamForming |
Yes |
| Quality of Service (QoS) support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Wireless isolation |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Automatic channel scanning |
Yes |
| Automatic channel selection |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate |
1774 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Number of SSID supported |
16 |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Security algorithms |
WPA, WPA2, WPA3 |
| Management features |
|---|
| Firmware upgradeable |
Yes |
| Syslog |
Yes |
| Ports & interfaces |
|---|

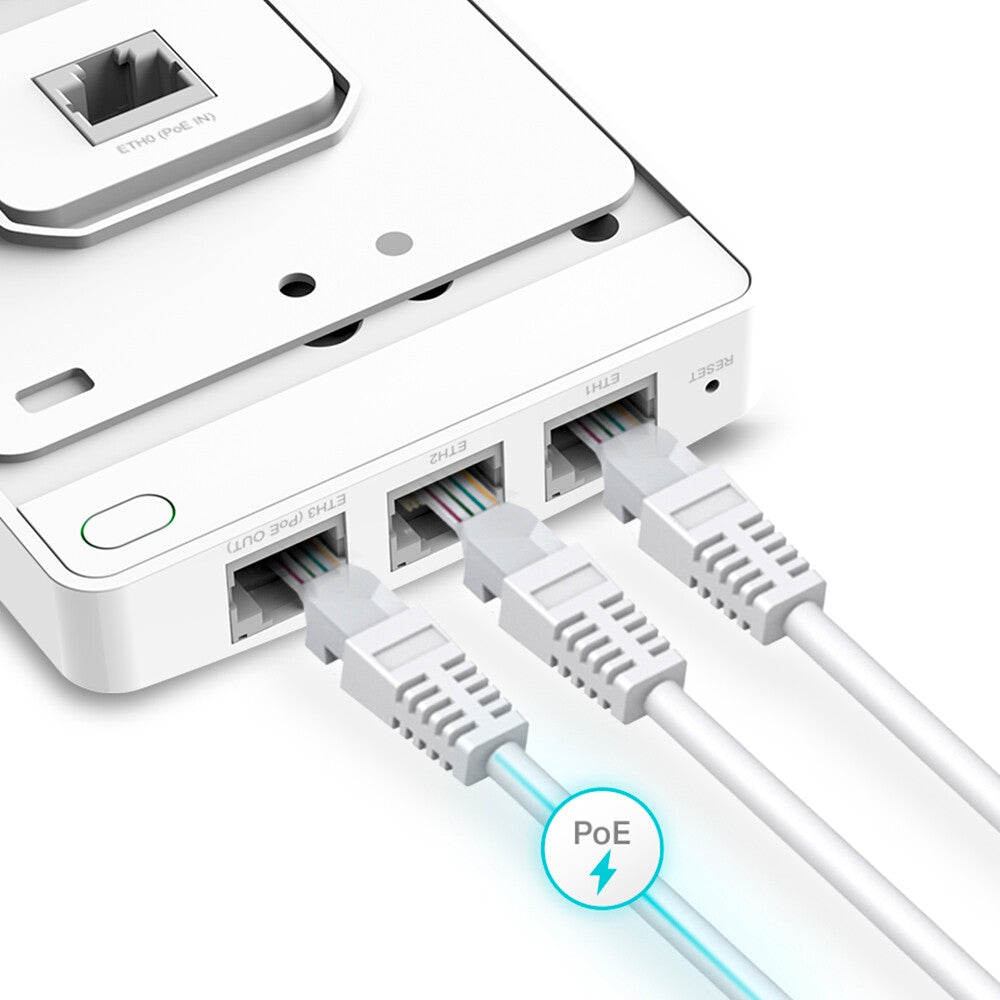

| Ethernet LAN (RJ-45) ports |
4 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| LED indicators |
Power |
| Reset button |
Yes |
| On/off switch |
Yes |
| Product colour |
White |
| Placement |
Wall |
| Antenna |
|---|
| Antenna gain level (max) |
4 dBi |
| Antennas quantity |
4 |
| Antenna type |
Internal |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Weight & dimensions |
|---|
| Height |
20 mm |
| Depth |
86 mm |
| Width |
143 mm |
| Packaging data |
|---|
| Package weight |
330 g |
| Package height |
210 mm |
| Package depth |
495 mm |
| Package width |
385 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
