Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity
DR3650v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
IPSec/PPTP/L2TP/GRE/WireGuard/ Open VPN/ SSL VPN easily builds secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
Yes |
| SIM card slot |
No |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (second band) |
2402 Mbit/s |
| WLAN data transfer rate (first band) |
574 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
2402 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN support |
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL |
| Built-in FTP server |
Yes |
| Static route |
Yes |
| Policy-based routing |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Load balancing system |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| DSL features |
|---|
| VDSL2 |
Yes |
| ADSL2+ |
Yes |
| ADSL2 |
Yes |
| ADSL |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| RJ-11 ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| MU-MIMO technology |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Security |
|---|
| NAT functionality |
One-to-One NATMulti-Net NATVirtual ServerPort Triggering1NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUPnP |
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| System event log |
Yes |
| URL filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Guest access |
Yes |
| Security algorithms |
WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| Protocols |
|---|
| Voice codecs |
G.711a, G.711ulaw, G.722, G.726, G.729ab |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| LED indicators |
DSL, LAN, USB, WLAN |
| Indication light |
Yes |
| Wall mountable |
Yes |
| Product colour |
Black |
| Product type |
Tabletop router |
| General |
|---|
| Product family |
Omada |

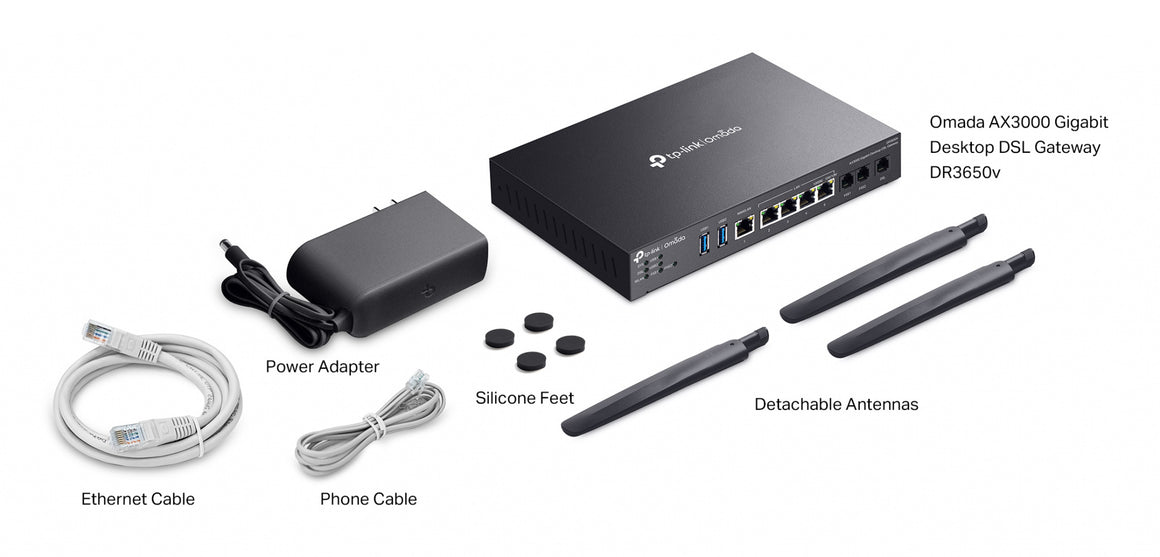

| Packaging content |
|---|
| Antenna included |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45), Phone |
| Antenna |
|---|
| Detachable antenna(s) |
Yes |
| Antennas quantity |
3 |
| Antenna gain level (max) |
4.5 dBi |
| Antenna design |
External |
| Features |
|---|
| Mean time between failures (MTBF) |
671034 h |
| Internal memory |
512 MB |
| Internal memory type |
DDR4 |
| Power |
|---|
| Output current |
3.3 A |
| Output voltage |
12 V |
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
226 mm |
| Depth |
131.2 mm |
| Height |
35 mm |
