SKU: EAP683 UR

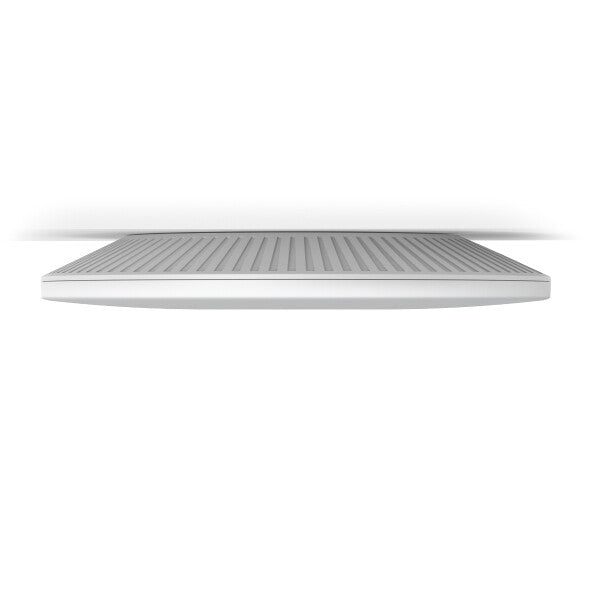

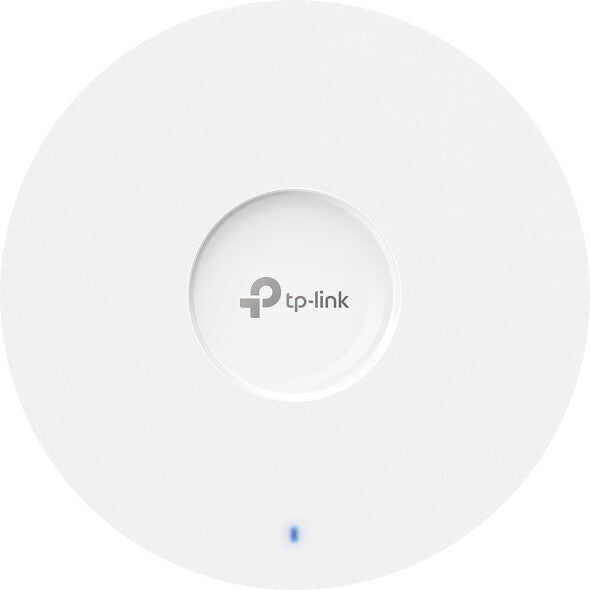

TP-Link Omada AX6000 Ceiling Mount WiFi 6 Access Point

TP-LINK
£151.93
iFrame
  • 2.4 GHz 1148 Mbit/s
  • 5 GHz 4804 Mbit/s
  • Maximum data transfer rate: 6000 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
  • HTTPS, SNMP, SNMPv2, SNMPv3, SSH
  • Power over Ethernet (PoE)
  • Internal
Features
BeamForming Yes
Quality of Service (QoS) support Yes
Airtime Fairness (ATF) Yes
Band steering Yes
Rate limiting Yes
VLAN support Yes
Fast roaming Yes
MIMO type Multi User MIMO
MIMO Yes
Automatic channel scanning Yes
Automatic channel selection Yes
Number of users 510 user(s)
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Frequency band 2.4 - 6 GHz
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Maximum data transfer rate (5 GHz) 4804 Mbit/s
Maximum data transfer rate (2.4 GHz) 1148 Mbit/s
Maximum data transfer rate 6000 Mbit/s
5 GHz Yes
6 GHz No
2.4 GHz Yes
Security
Access Control List (ACL) Yes
Service Set Identifier (SSID) features Multiple SSIDs
MAC address filtering Yes
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH
Management features
Firmware upgradeable Yes
Syslog Yes

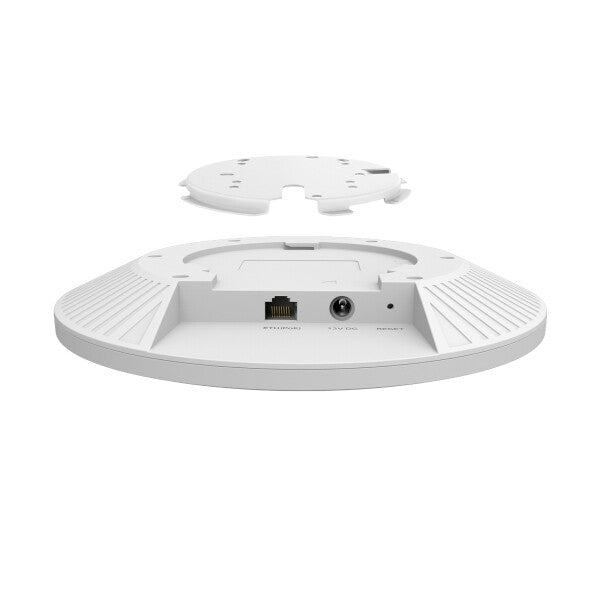

Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
Power
DC voltage range 12 V
Power over Ethernet (PoE) Yes
Design
LED indicators Yes
Reset button Yes
Product colour White
Placement Ceiling, Wall
Antenna
Antenna gain level (max) 5 dBi
Antenna direction type Omni-directional
Antenna type Internal
General
Product family Omada
Weight & dimensions
Height 32.5 mm
Depth 220 mm
Width 220 mm
Packaging data
Package type Box
Packaging content
Quick start guide Yes
Mounting kit Yes
Quantity per pack 1 pc(s)
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
