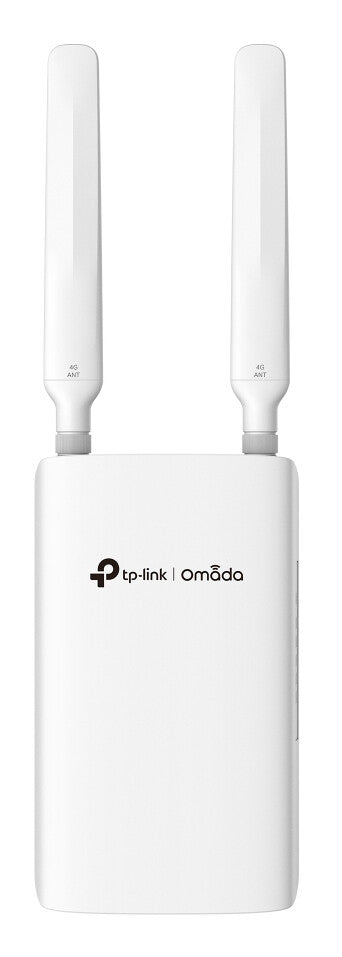

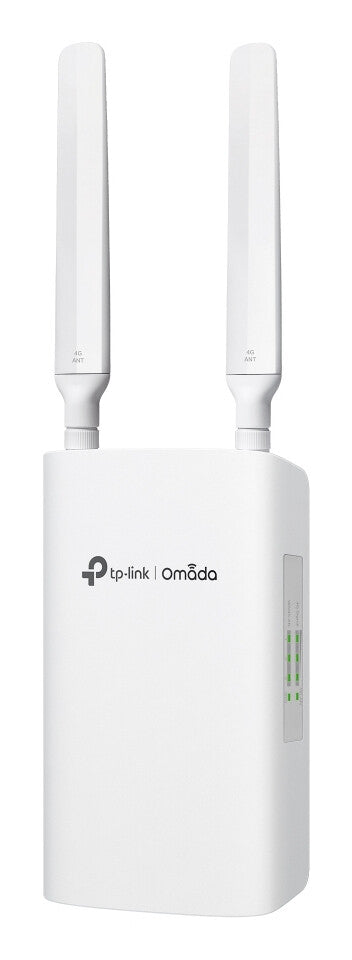

All-in-one Device

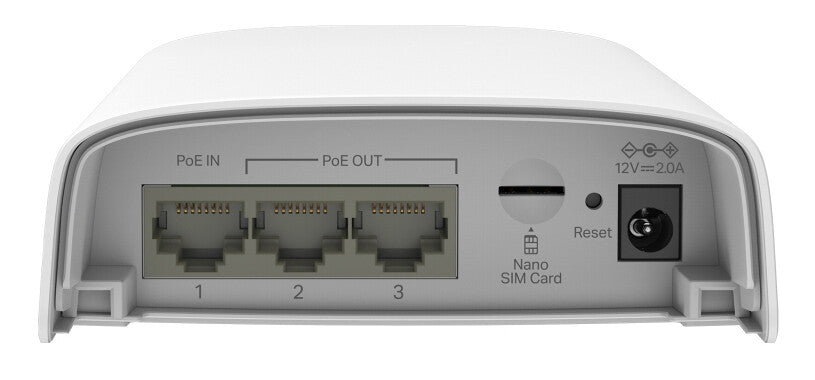

Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.
Multiple Power Supply Options
Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.
Plug and Play
Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.
Centralized Management
Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.
Easy Installation

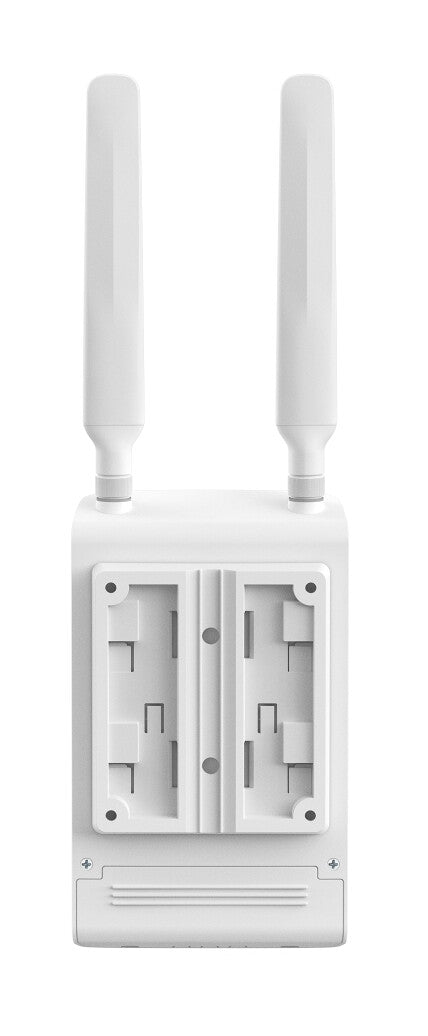

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
| Design |
|---|
| LED indicators |
Status |
| Mounting type |
Wall mounting |
| Product colour |
White |
| Features |
|---|
| Short Message Service (SMS) |
Yes |
| Antennas quantity |
2 |
| Antenna gain level (max) |
4 dBi |
| Antenna type |
External |
| Performance |
|---|
| Flash memory |
256 MB |
| Internal memory |
512 MB |
| Internal memory type |
DDR4 |
| Control display unit |
No |
| Protocols |
|---|
| DHCP server |
Yes |
| Network |
|---|
| SSL VPN throughput |
0.0866 Gbit/s |
| PPTP/L2TP VPN tunnels (max) |
50 |
| SSL VPN tunnels (max) |
50 |
| All services ready time |
3.8 s |
| Frequency band |
2.4/5 GHz |
| GSM bands supported |
850,900,1800,2100 MHz |
| Downlink/uplink speed |
300/50 Mbit/s |
| Data network |
LTE |
| Mobile network generation |
4G |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Forwarding rate |
1453489 Mpps |
| Security |
|---|
| Security algorithms |
SSID, WPA2, WPA3 |
| MAC address filtering |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| SIM card slot |
Yes |
| SIM card type |
NanoSIM |
| Management features |
|---|
| Web-based management |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
16.6 W |
| Weight & dimensions |
|---|
| Width |
174 mm |
| Depth |
100.4 mm |
| Height |
38.7 mm |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-30 - 60 °C |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
