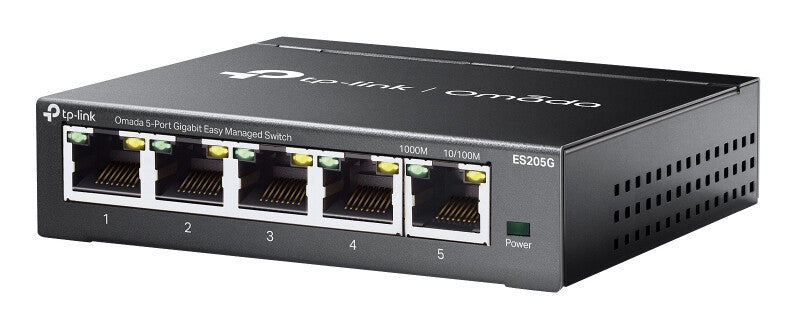

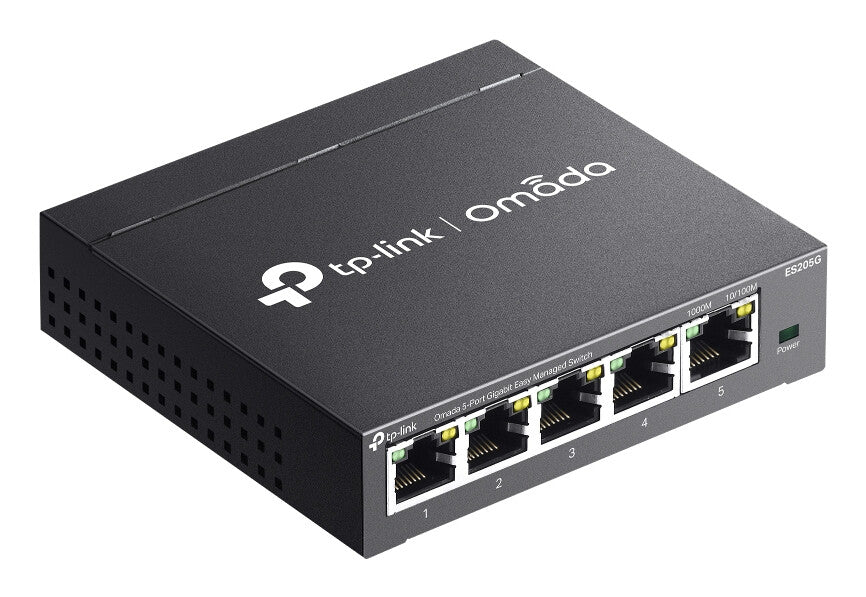

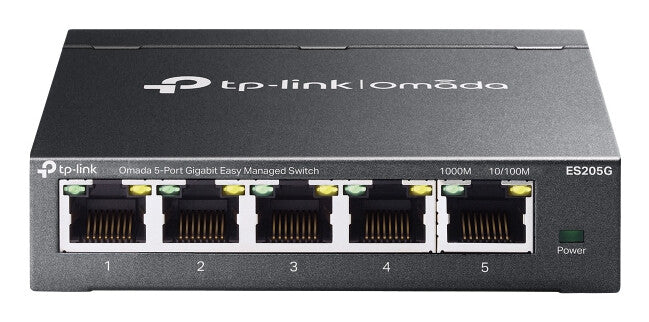

TP-Link Omada 5-Port Gigabit Easy Managed Switch

SKU: ES205G
£29.34 inc. VAT
Pay in 4 interest-free payments with Clearpay
  • 5× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralised Cloud Management via the web or the Omada app†
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

Omada 5-Port Gigabit Easy Managed Switch

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Management features
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch type Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
VLAN support Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Link aggregation Yes
Auto-negotiation Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Data transmission
Packet buffer memory 4 MB
Jumbo frames 15
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 7.4 Mpps
Switching capacity 10 Gbit/s
MAC address table 8000 entries
Security
Loop protection Yes
IGMP snooping Yes
DHCP features DHCP client
Design

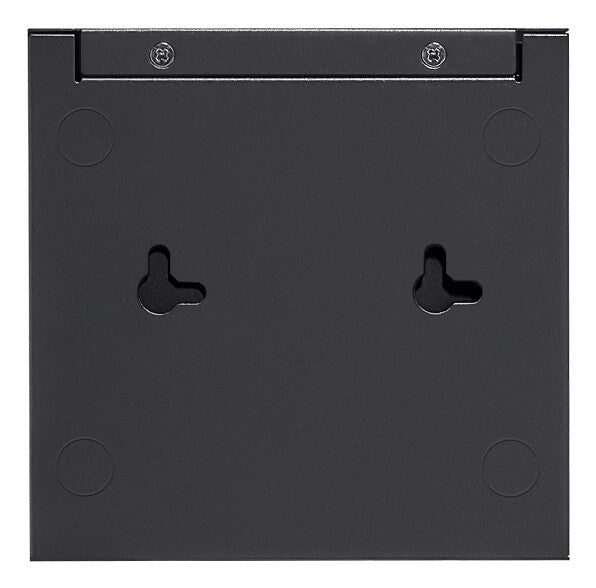

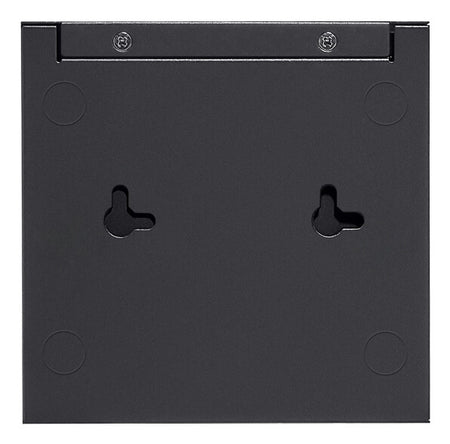

Wall mountable Yes
LED indicators Yes

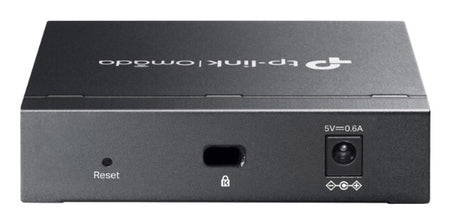

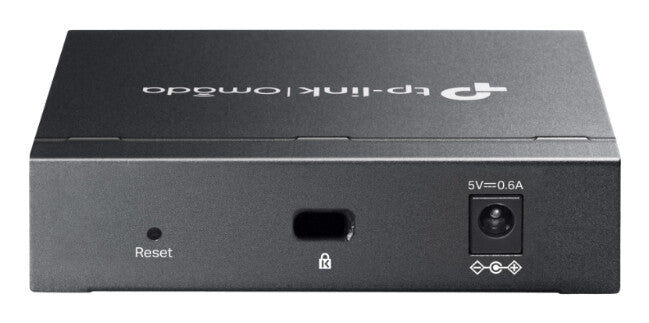

Reset button Yes
Product colour Black
Performance
Fanless Yes
Power
DC input voltage 5 V
Power supply included Yes
Power source AC/DC
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 25 mm
Depth 98 mm
Width 100 mm
Packaging content
User guide Yes
Packaging data
Package type Box
General
Product family Omada
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
