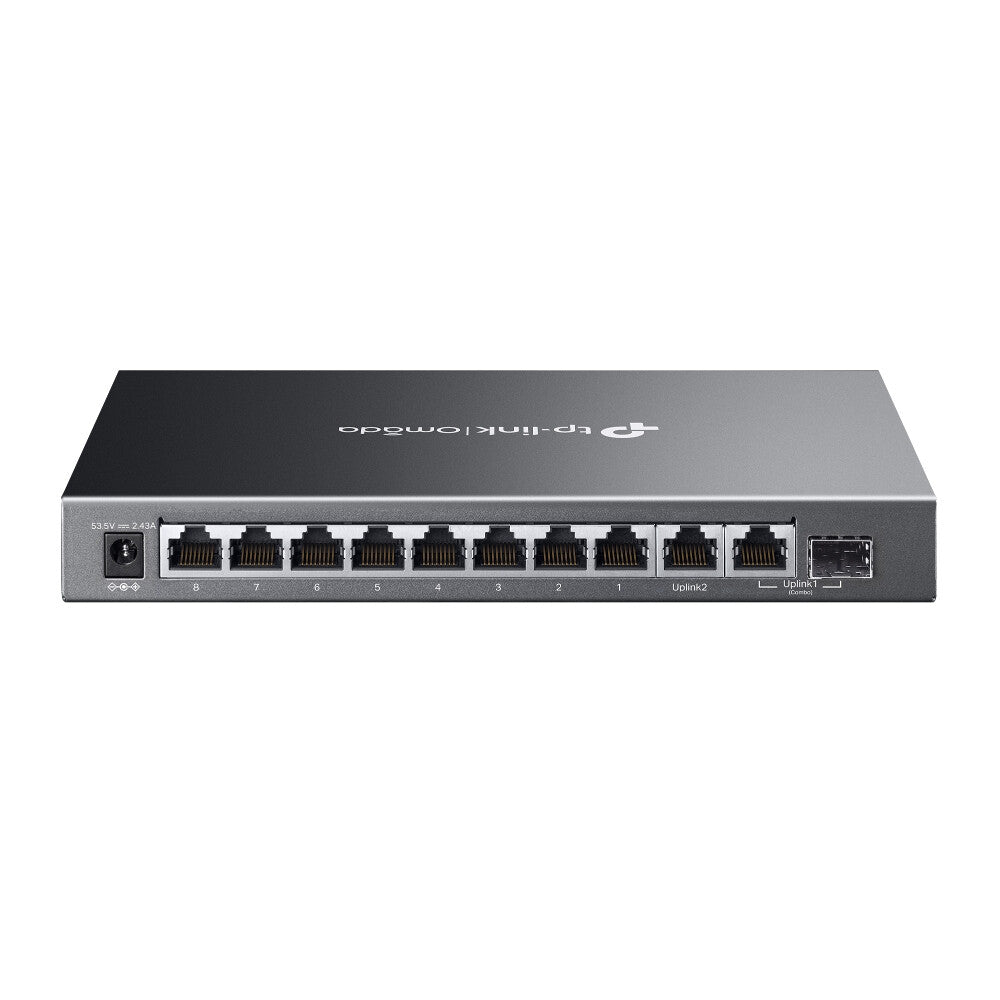

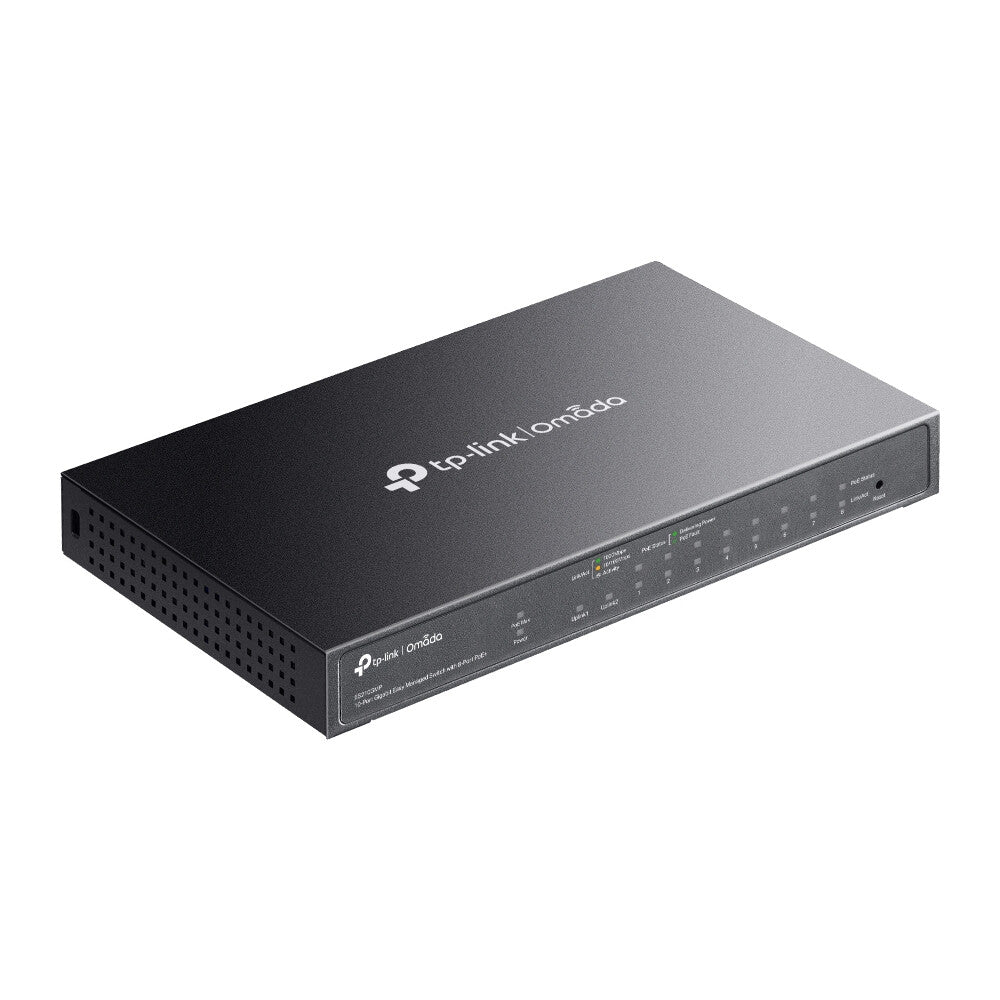

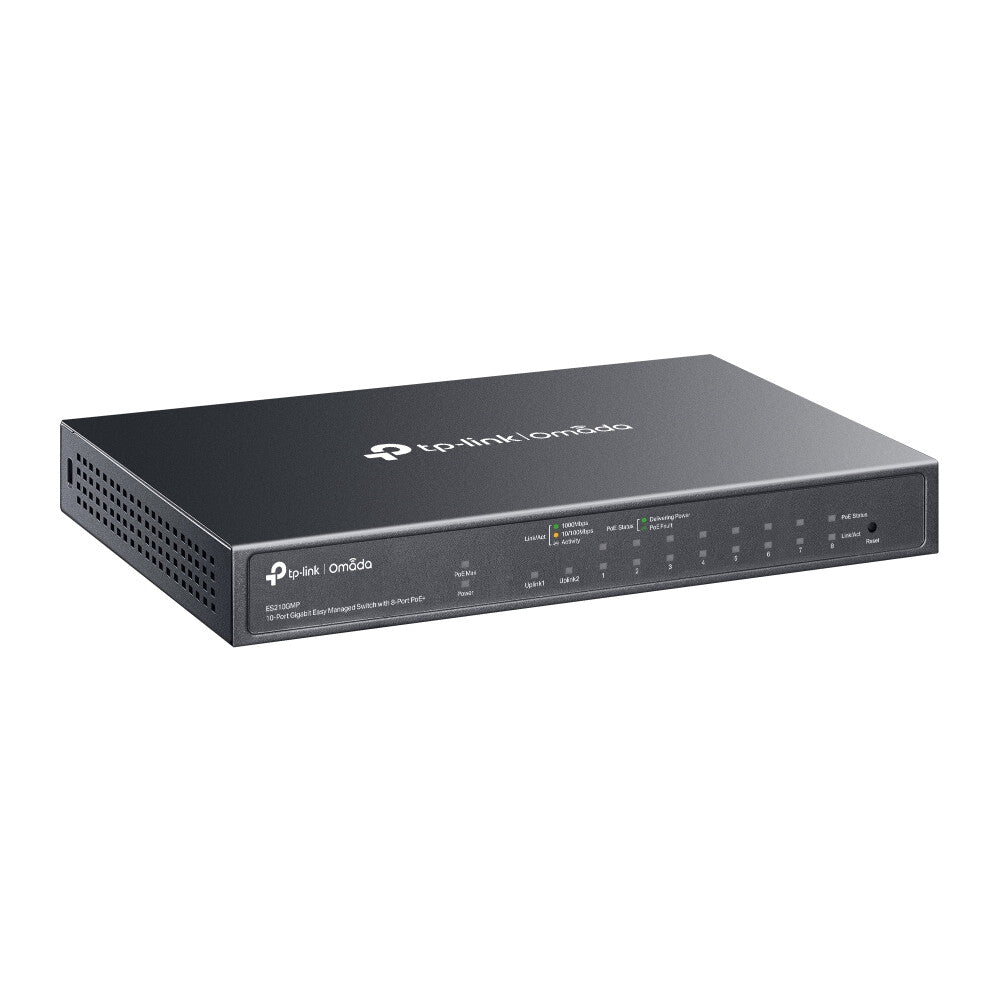

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+

SKU: ES210GMP
£129.47 inc. VAT
Pay in 4 interest-free payments with Clearpay
  • 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
  • 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
  • 123W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation

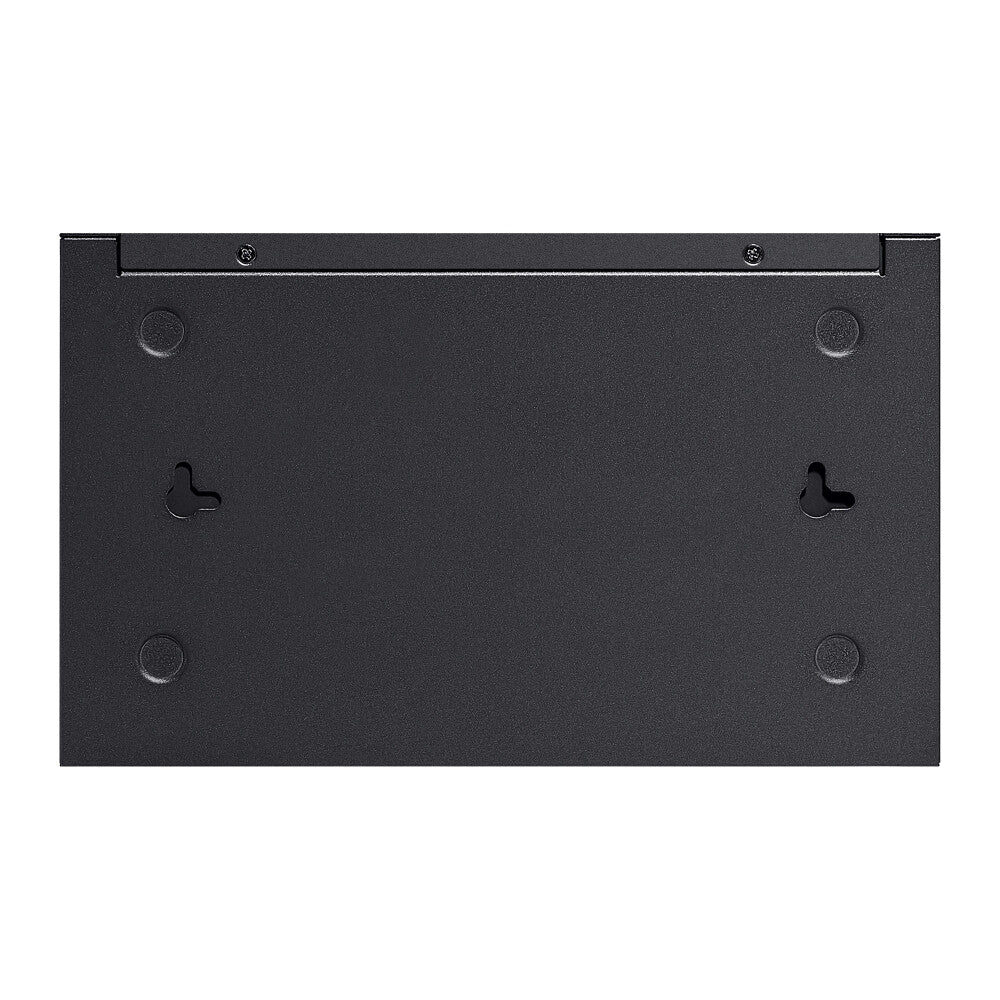

  • Durable metal casing and desktop/wall mounting design

Omada 10-Port Gigabit Easy Managed
Switch with 8-Port PoE+

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralized Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing
- Upgrade to Standard with a Seamless Subscription

Management features
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch type Managed
Ports & interfaces
Combo SFP ports quantity 1
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 10
Network
Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN
VLAN support Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Link aggregation Yes
Auto-negotiation Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Optical fiber
Transmission distance (max) 0.25 km
Data transmission
Packet buffer memory 4 MB
Jumbo frames 15
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 14.88 Mpps
Switching capacity 20 Gbit/s
MAC address table 8000 entries
Security
IGMP snooping Yes
DHCP features DHCP client
Design
Wall mountable Yes
Reset button Yes
Product colour Black
Performance
Fanless Yes
Power
Input current 2.43 A
DC input voltage 53.5 V
Power supply included Yes
Power source DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 123 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 26 mm
Depth 126 mm
Width 209 mm
Packaging content
User guide Yes
Cables included AC
Packaging data
Package type Box
General
Product family Omada
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
