Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
| Management features |
|---|
| Unified static configuration |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |

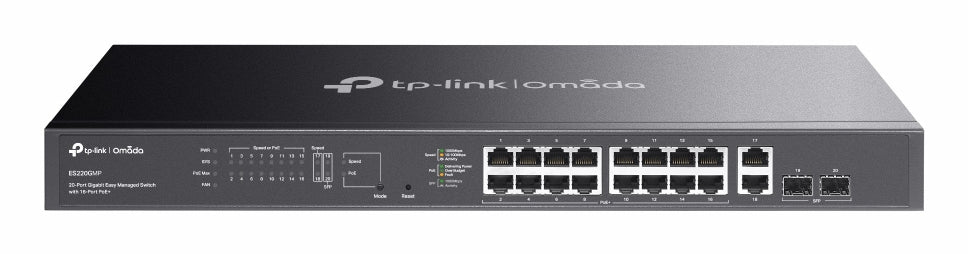

| Ports & interfaces |
|---|

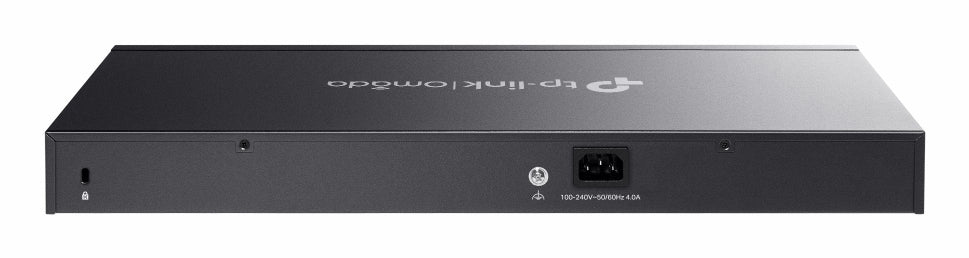

| Power connector |
AC-in jack |
| SFP module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
18 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
18 |
| Network |
|---|
| Number of VLANs |
32 |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Fast leave |
Yes |
| Link aggregation |
Yes |
| Auto-negotiation |
Yes |
| Port mirroring |
Yes |
| Zero Touch Provisioning (ZTP) |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
|---|
| Packet buffer memory |
4 MB |
| Jumbo frames |
15000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
29.76 Mpps |
| Switching capacity |
40 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP client |
| Design |
|---|
| Number of fans |
2 fan(s) |
| LED indicators |
Yes |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
310550.7 h |
| Noise level |
41.5 dB |
| Firmware upgradeable |
Yes |
| Flash memory |
64 MB |
| Power |
|---|
| Surge protection voltage |
6 kV |
| Surge protection |
Yes |
| Power consumption (max) |
289.7 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
250 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Heat dissipation |
984.88 BTU/h |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Weight & dimensions |
|---|
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Rack mount kit |
Yes |
| Cables included |
AC |
| Packaging data |
|---|
| Package type |
Box |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
