SKU: TL-POE10E

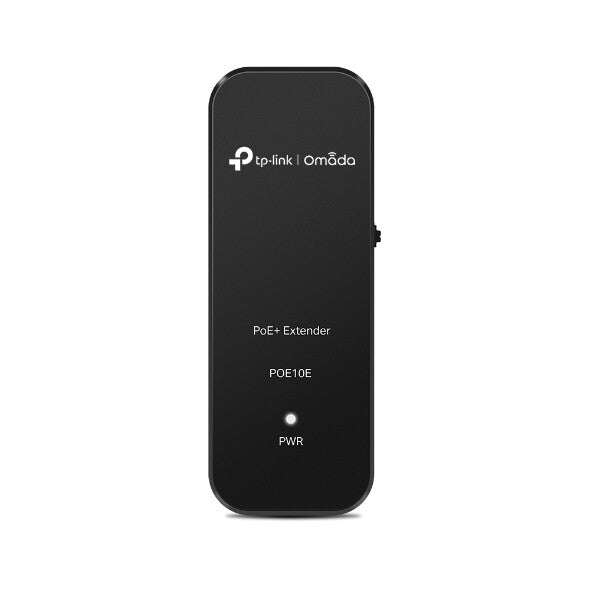

TP-Link Omada Fast Ethernet PoE+ Extender

TP-LINK
£25.58
iFrame
  • 2×10/100 Mbps ports
  • Compliance with 802.3af/at devices
  • Supplies up to 20 W, which meets the power consumption requirements of most IP cameras
  • Extends a PoE/PoE+ network connection an additional 100 m/250 m (10 Mbps mode) from the PoE power sourcing equipment
  • Plug and Play, no configuration required

The Fast Ethernet PoE+ Extender TL-POE10E extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. TL-POE10E expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.

Performance
Plug and Play Yes
Auto-negotiation Yes
Ethernet LAN data rates 10,100 Mbit/s
Cable types supported Cat5e
Data transfer rate 100 Mbit/s
Maximum transfer distance 250 m
Type Network repeater
Network
Networking standards IEEE 802.3i, IEEE 802.3u
Cabling technology 10/100Base-T(X)
Ports & interfaces
RJ-45 input ports 1
RJ-45 output ports 1
Power over Ethernet (PoE) ports quantity 2
Ethernet LAN (RJ-45) ports 2
Host interface RJ-45
Design
Certification FCC, CE, RoHS
LED indicators Power
Quantity per pack 1 pc(s)
Housing material Plastic
Product colour Black
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Height 16 mm
Depth 26 mm
Width 71 mm
Packaging content
Quick start guide Yes
Sustainability
Sustainability compliance Yes
General
Product family Omada
Certificates
Compliance certificates Federal Communications Commission (FCC), RoHS
