SKU: OC400

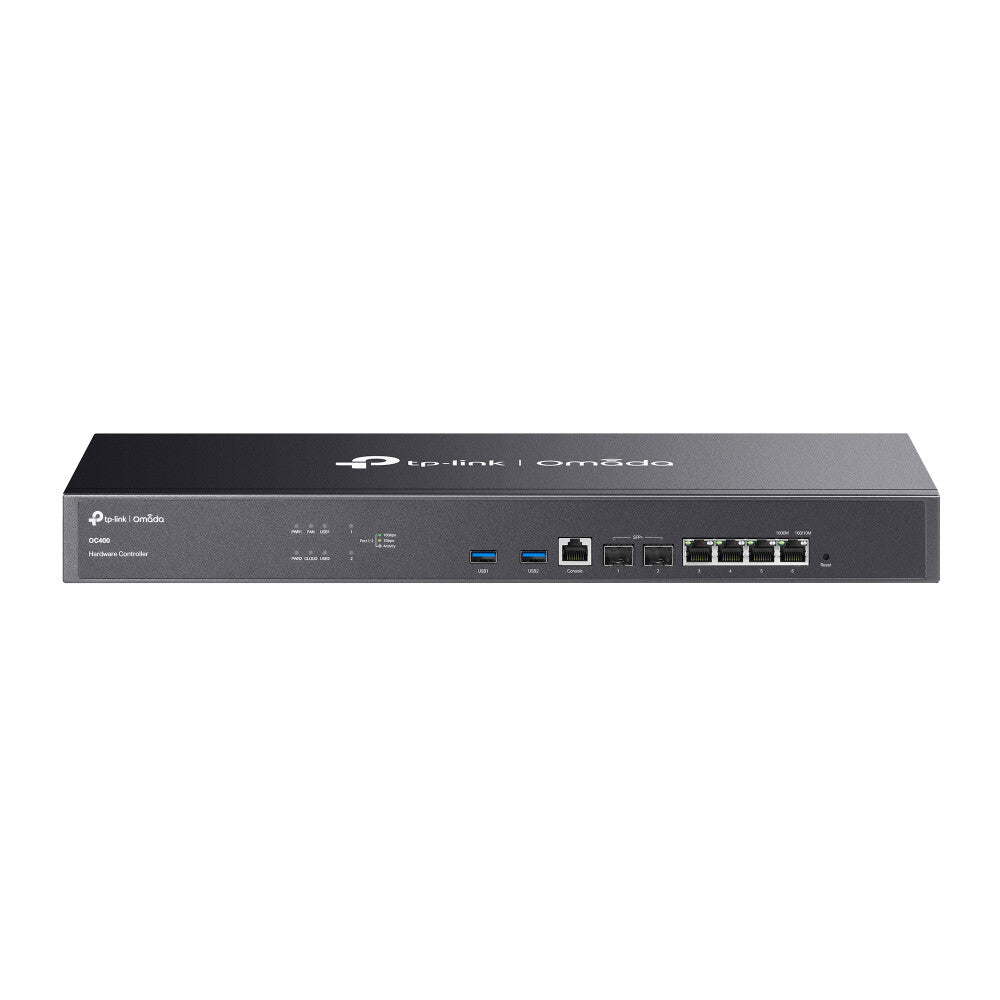

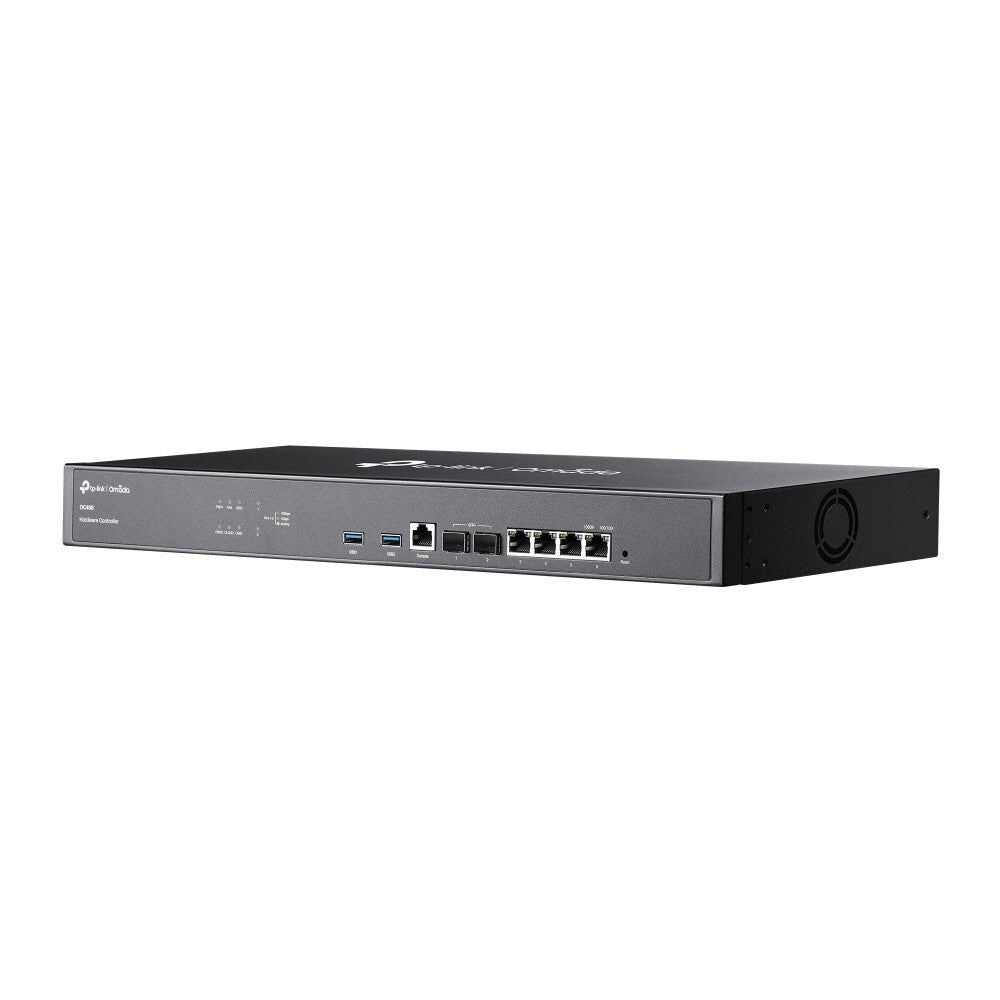

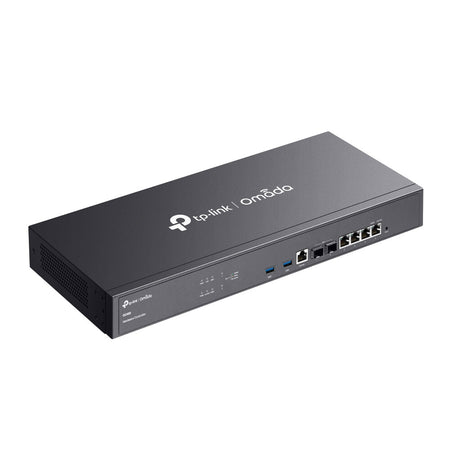

TP-Link Omada Hardware Controller

TP-LINK
£314.27
  • Centralized Management: for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.*
  • 2× 10GE SFP+ Slots, 4× GE RJ45 Ports, and 2× USB 3.0 Ports

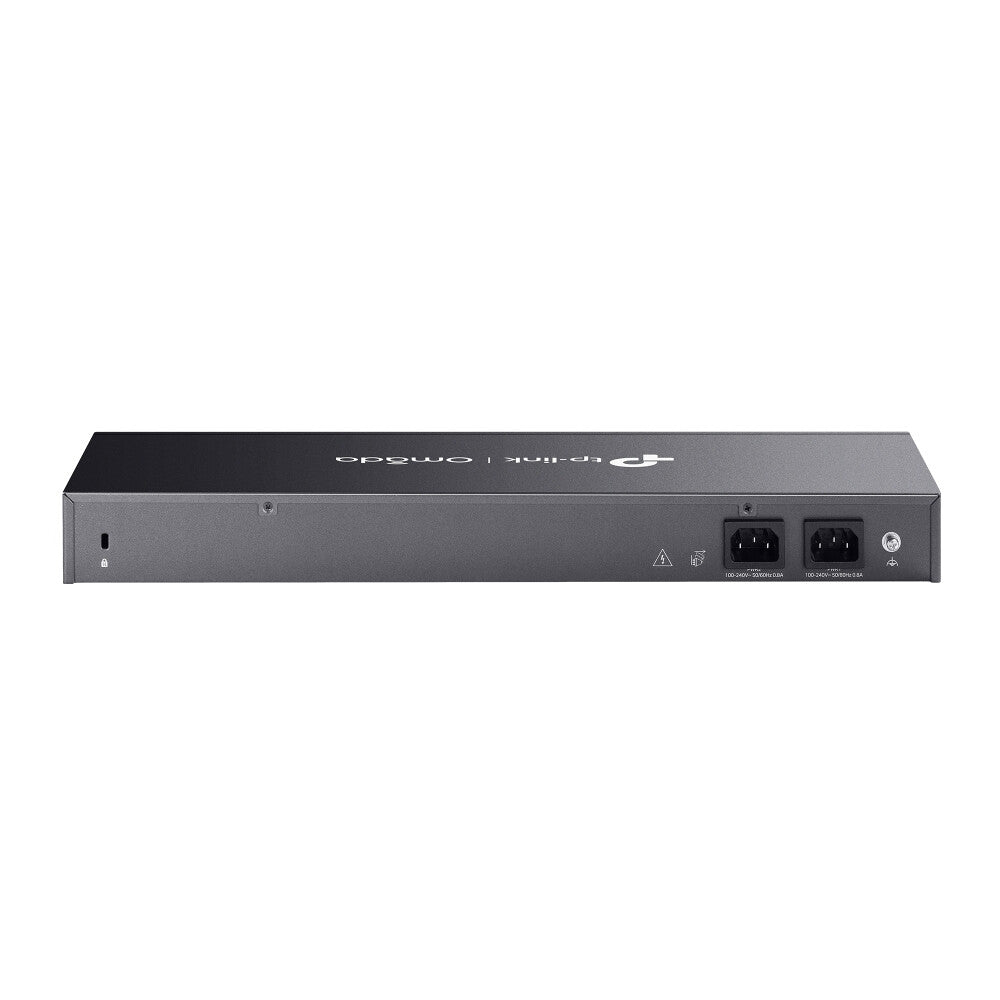

  • Redundant power supplies offer a reliable networking architecture
  • Free cloud access with the Omada app or Web UI from anywhere, anytime
  • On-premises manages to locally monitor and manage devices
  • The easy-to-use dashboard and real-time network topology make network monitoring easy
  • Batch and multi-site management benefit network maintenance

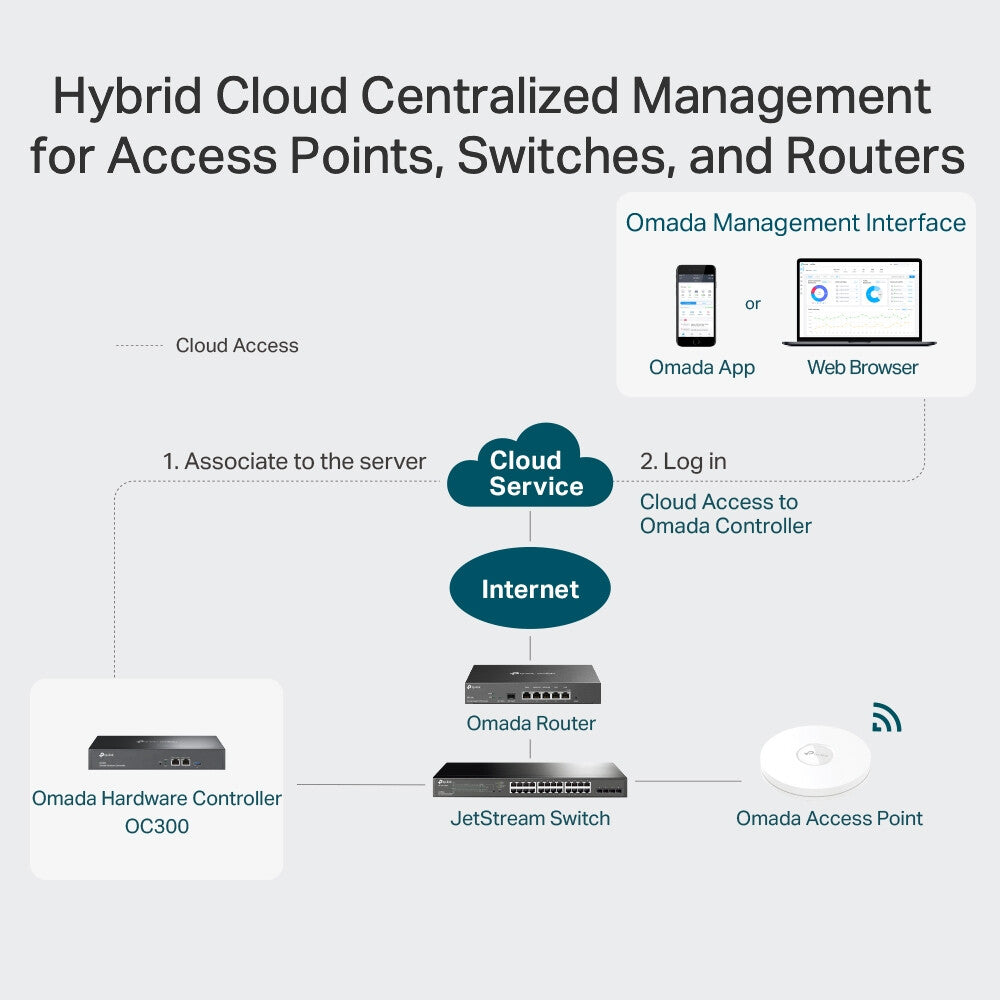

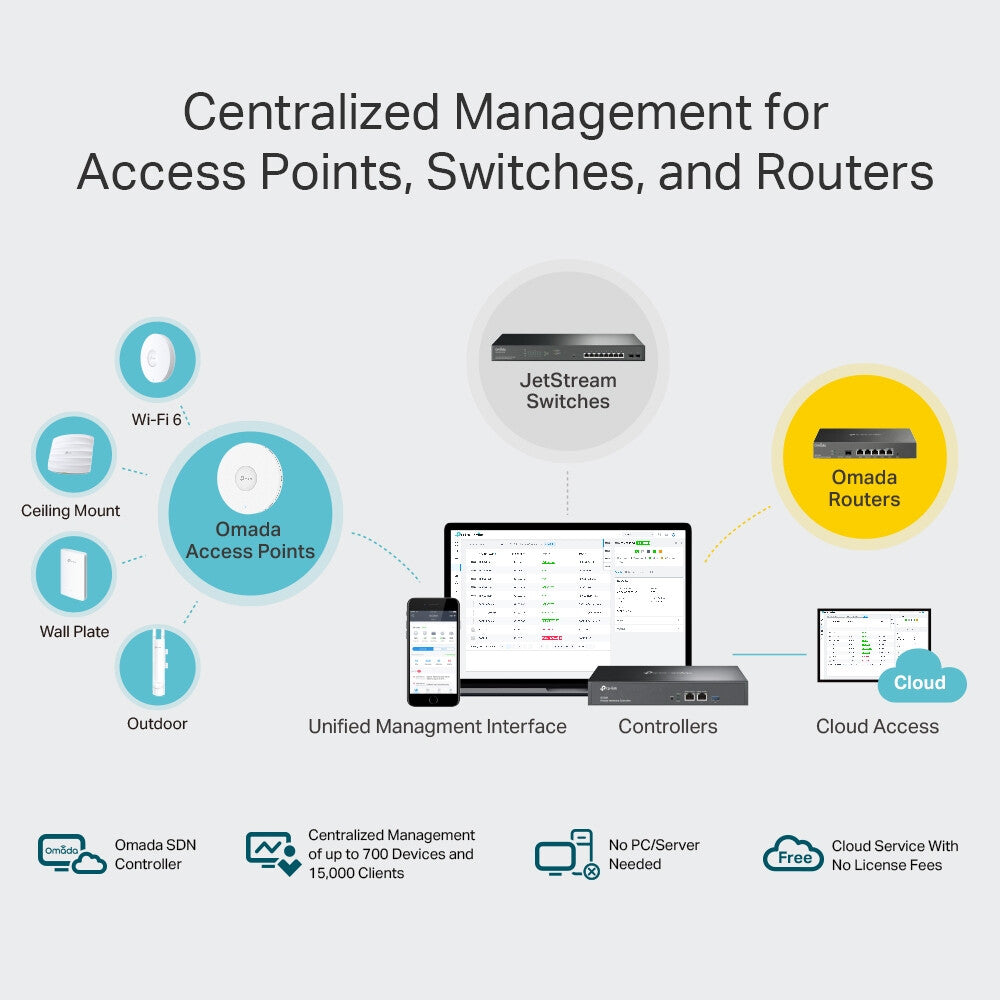

Centralized Management
The Omada hardware controller (OC400) for the Omada Software Defined Networking (SDN) platform, supports centralized management for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.* Enjoy cloud service with no license fees with the use of OC400.

Design
LED indicators Yes
Product colour Grey
Performance
Flash memory 4 MB
Internal memory 8 MB
Internal memory type DDR4
SSD capacity 32 GB
Built-in processor Yes
Control display unit No
Network
Ethernet LAN data rates 1000,10000 Mbit/s
Ports & interfaces
DC-in jack Yes
SFP+ ports quantity 2
Ethernet LAN (RJ-45) ports 4
Number of console ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Management features
Management platform Omada App
Performance management • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients
Reset button Yes
Power
Input frequency 50/60 Hz
Input voltage 100 - 240 V
Weight & dimensions
Width 440 mm
Depth 180 mm
Height 44 mm
Packaging content
Cables included LAN (RJ-45), Power
Quick installation guide Yes
Packaging content • Omada Hardware Controller OC400• Quick Installation Guide• Ethernet Cable• Power Cord• Rackmount Kit
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Sustainability
Sustainability compliance Yes
General
Product family Omada
Certificates
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
