SKU: SG3452XMPP

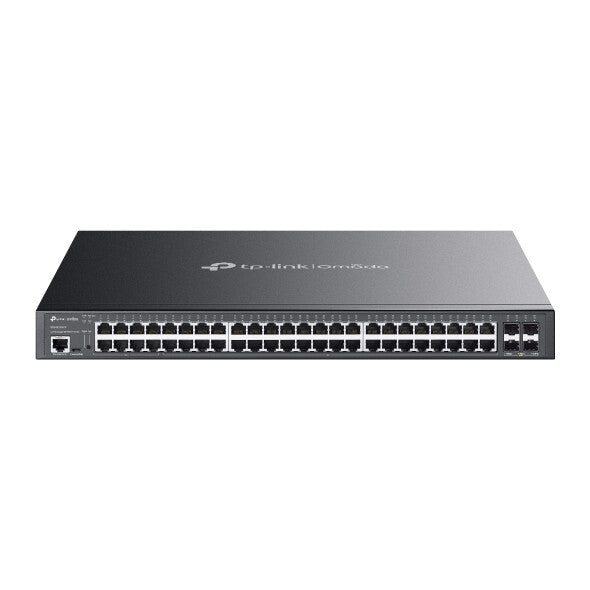

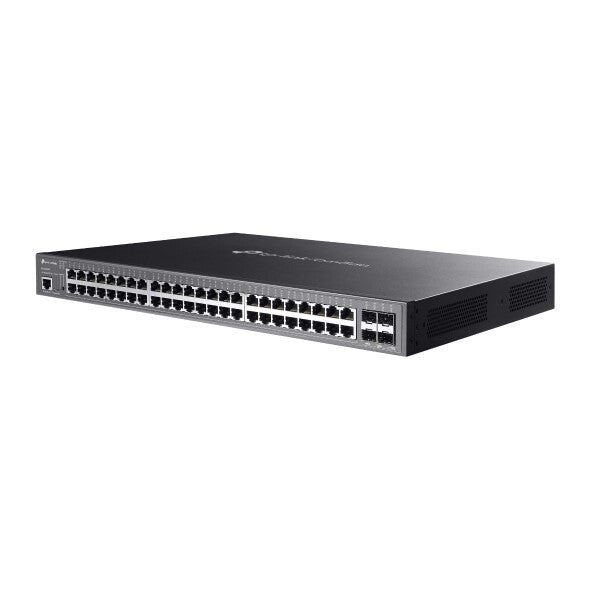

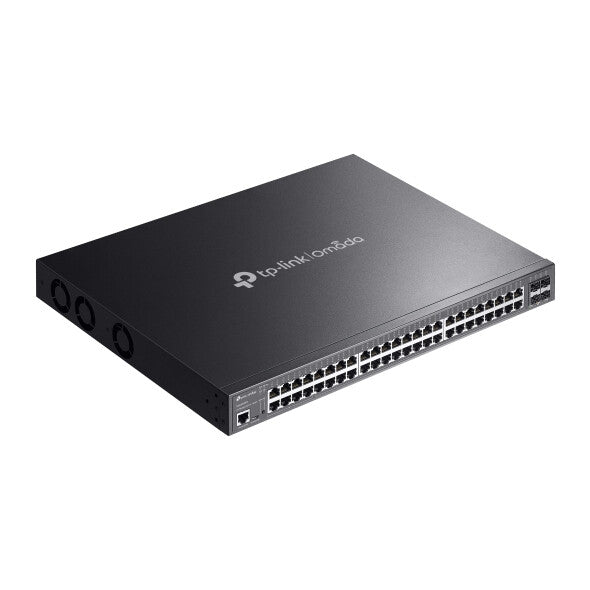

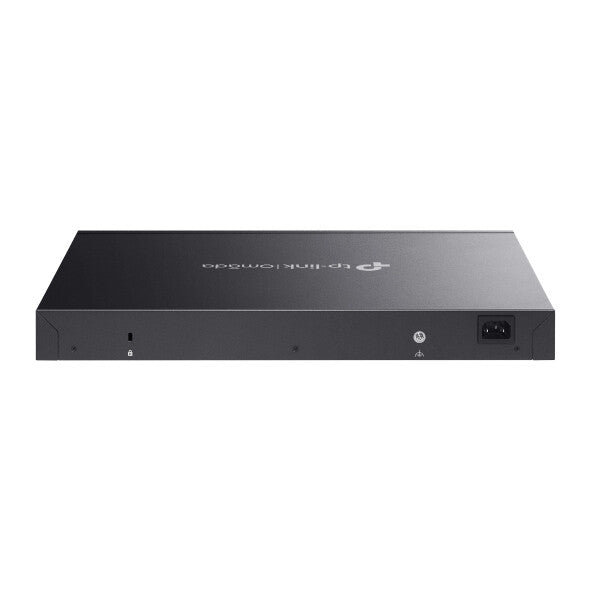

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-LINK
£881.60
iFrame
  • 4× 10 Gbps SFP+ slots
  • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • 750 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
Management features
System event log Yes
ARP inspection Yes
Configuring Location Settings (CLI) Yes
Web-based management Yes
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch layer L2+
Switch type Managed
Ports & interfaces
Power connector AC-in jack
Console port RJ-45/Micro-USB
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
VLAN support Yes
Rate limiting Yes
Flow control support Yes
Link aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
Port mirroring Yes
10G support Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Data transmission
Packet buffer memory 12 MB
Jumbo frames 9000
Jumbo frames support Yes
Store-and-forward Yes
Forwarding rate 130.9 Mpps
Switching capacity 176 Gbit/s
MAC address table 16000 entries
Security
IP-MAC-Port binding Yes
Static port security Yes
SSH/SSL support Yes
BPDU filtering/protection Yes
Authentication Auto VLAN, Guest VLAN
MAC address filtering Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP relay, DHCP server
Multicast features
Multicast support Yes
Design
Number of fans 3 fan(s)
LED indicators Yes
Reset button Yes
Product colour Black
Form factor 1U
Rack mounting Yes
Power
Power consumption (max) 635.7 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 750 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet 4PPoE (PoE++) ports quantity 8
Power over Ethernet plus (PoE+) ports quantity 40
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 2169.2 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 44 mm
Depth 330 mm
Width 440 mm
Packaging content
Quick start guide Yes
Cables included AC
General
Product family Omada
Certificates
Certification CE, FCC, RoHS
