SKU: DS-PMA-C+

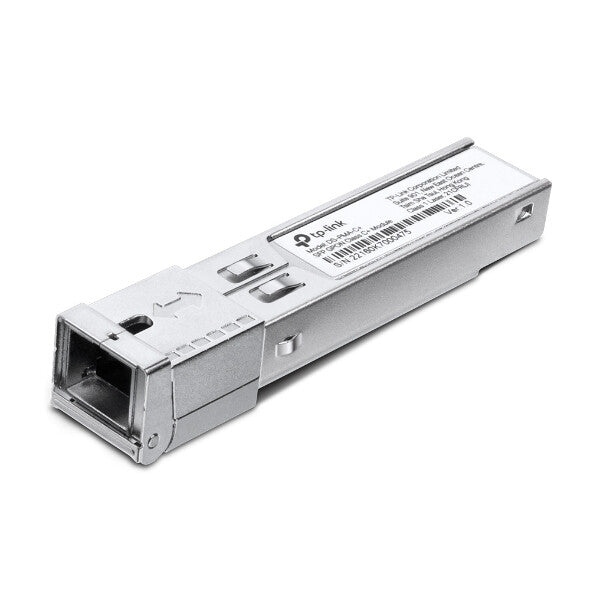

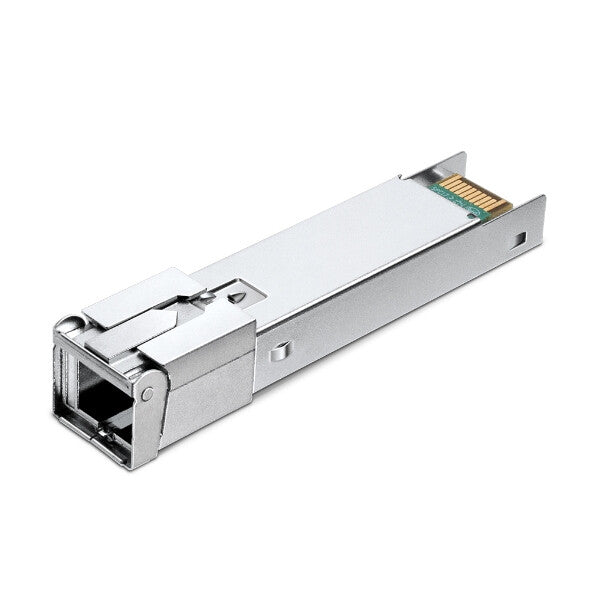

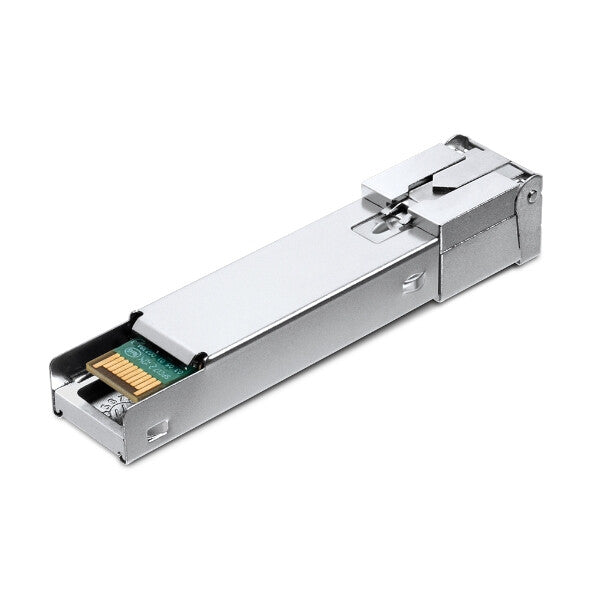

TP-Link SFP GPON Class C+ Module

TP-LINK
£34.03
  • Single-fiber SFP GPON Class C+ Module
  • Hot-Pluggable with maximum flexibility
  • Supports Digital Diagnostic Monitoring (DDM)
  • Compatible with TP-Link GPON OLT, such as DS-P7001-16, DS-P7001-08, and DS-P7001-04
Performance
Rx power (max) -12 dBmW
Rx power (min) -30 dBmW
Tx power (max) 7 dBmW
Tx power (min) 3 dBmW
Rx wavelength (max) 1310 nm
Tx wavelength (max) 1490 nm
Wavelength 1490 nm
Maximum transfer distance 20000 m
Fiber cable diameters supported (core/cladding) 9/125 µm
Single-mode fiber (SMF) supported Yes
Interface type SFP
Maximum data transfer rate 2488.32 Mbit/s
SFP transceiver type Fiber optic
Features
Hot-swap Yes
Product colour Stainless steel
Power
Input voltage 3.3 V
