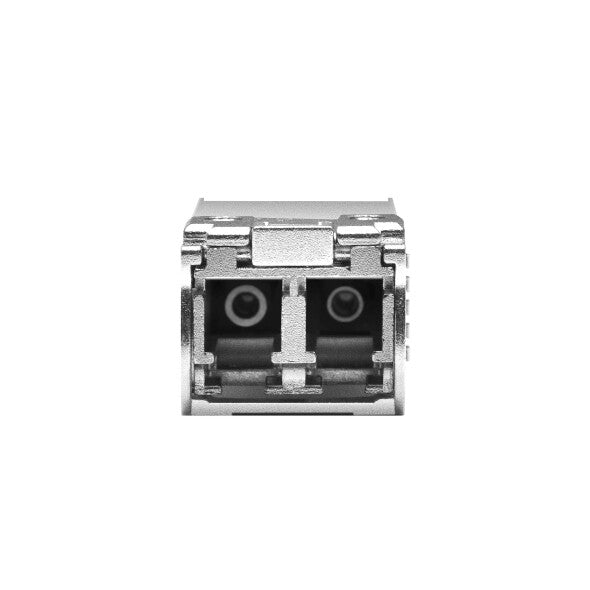

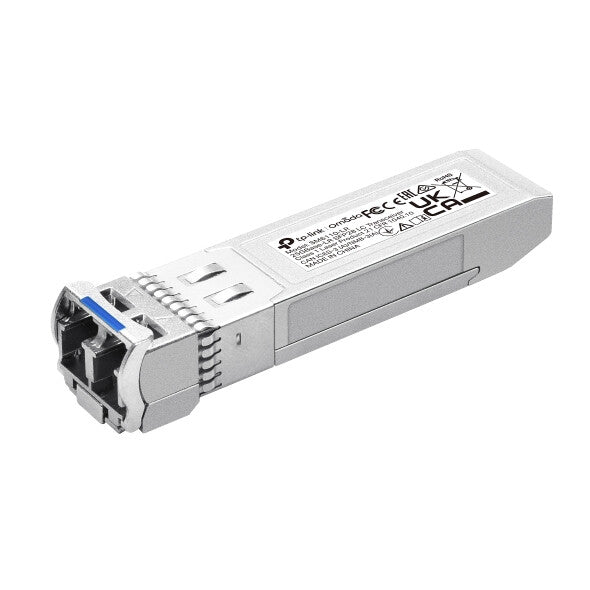

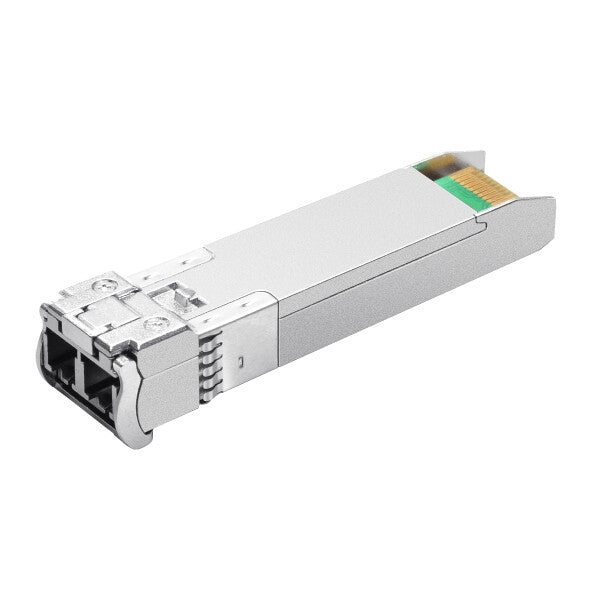

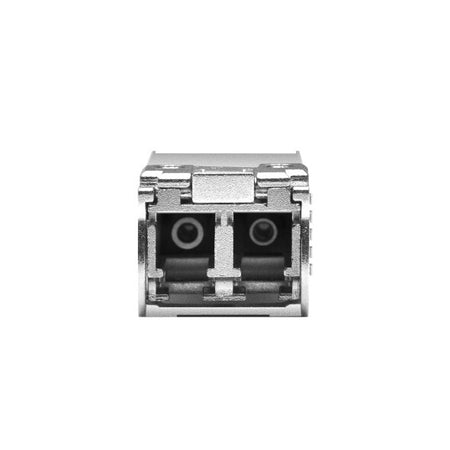

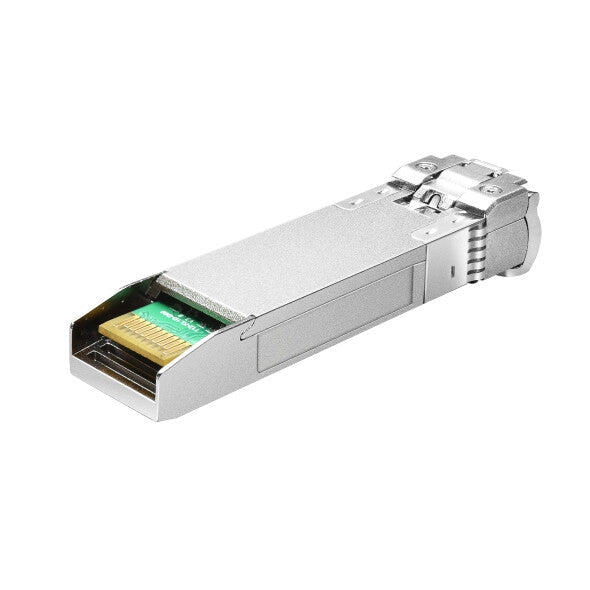

The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
| Performance |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
10000 m |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Interface type |
SFP+ |
| Maximum data transfer rate |
25780 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Hot-swap |
Yes |
| Hot-Plug support |
Yes |
| Product colour |
Grey |
| Power |
|---|
| Input voltage |
3.3 V |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Maximum operating temperature |
70 °C |
| Minimum operating temperature |
0 °C |
| Weight & dimensions |
|---|
| Height |
12 mm |
| Depth |
14 mm |
| Width |
57 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
