Smart.Secure.Easy.
Always Know Who’s There
2K 5MP Head-to-Toe 180° DFOV
Details matter, and with 2K 5MP clarity, D235 exceeds traditional Full HD resolution with finer details and incredible clarity. Experience the full picture with our 180° ultra-wide field of view, capturing every detail from head to toe in a single sweeping glance.
Flexible Wedges, Flexible Views
Different wedge choices give users possibilities to make the doorbell suits more placement scenarios. Users can also use these wedges to adjust the views.
Local and Cloud Storage
Save recorded videos on the microSD Card* (up to 512 GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).
Smart AI Detection and Notification
Smart AI identifies people, pets, vehicles, and packages, notifying users as needed.
| Features |
|---|
| Certification |
CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
| Product colour |
Black, White |
| Mounting type |
Wall |
| Night-light |
Yes |
| LED type |
IR |
| Easy to install |
Yes |
| Package detection |
Yes |
| Human detection |
Yes |
| Motion detection supported |
Yes |
| Detection angle |
130° |
| Built-in spotlight |
Yes |
| International Protection (IP) code |
IP66 |
| Performance |
|---|
| Reset button |
Yes |
| Camera |
|---|
| Night vision |
Yes |
| Night vision distance |
10 m |
| Diagonal field of view |
170.6° |
| Maximum aperture number |
1.18 |
| Fixed focal length |
1.18 mm |
| Sensor type |
CMOS |
| Image sensor size |
1/2.7" |
| Maximum frame rate |
15 fps |
| Maximum video resolution |
2560 x 1920 pixels |
| Megapixel (approx.) |
5 MP |
| Built-in camera |
Yes |
| Ports & interfaces |
|---|
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols |
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Mobile operating systems supported |
Android 10, Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 8.1, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
| Frequency |
2400 MHz |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Security algorithms |
WPA, WPA2-PSK |
| Wi-Fi |
Yes |
| Connectivity technology |
Wireless |

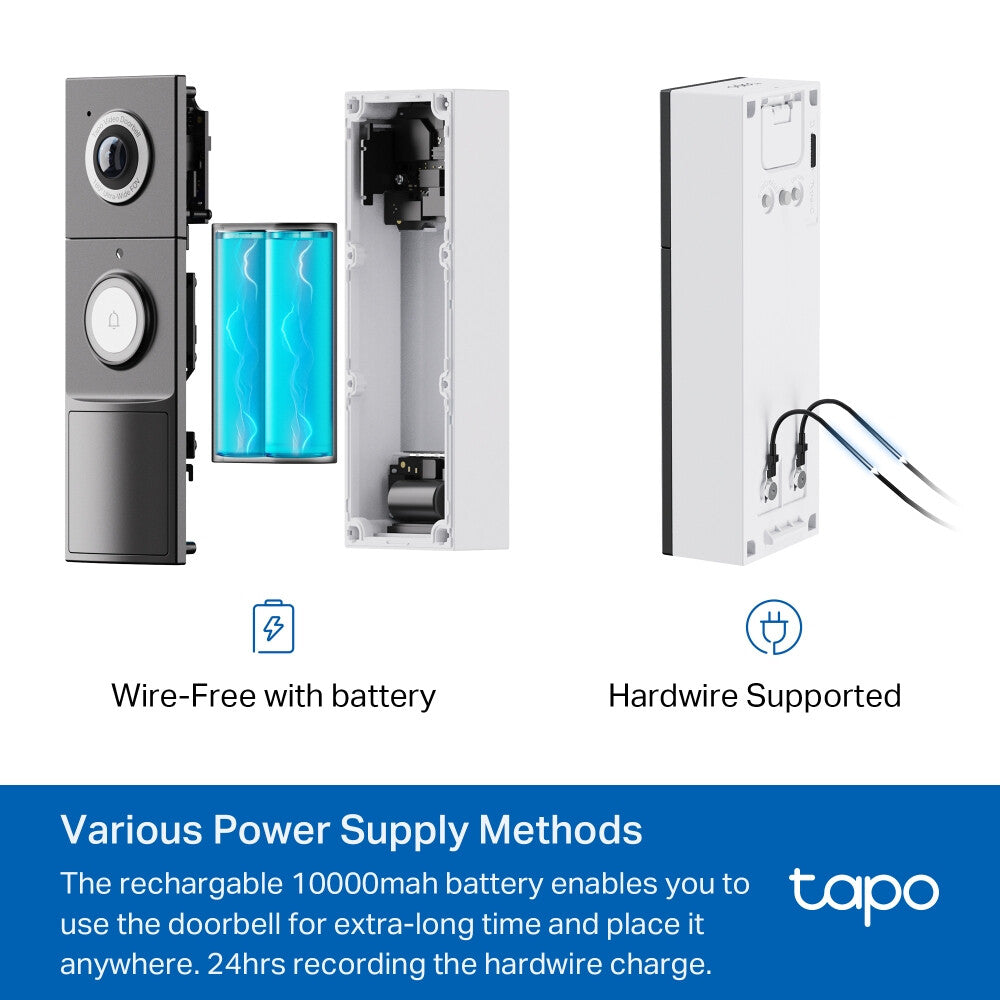

| Power |
|---|
| Battery type |
Lithium-Ion (Li-Ion) |
| Battery capacity |
10000 mAh |
| Rechargeable battery |
Yes |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
100 - 240 V |
| Power source type |
Battery, DC |
| Weight & dimensions |
|---|
| Package weight |
670 g |
| Package depth |
189.5 mm |
| Package width |
155 mm |
| Package height |
106.5 mm |
| Bell height |
5 cm |
| Bell depth |
3.84 cm |
| Bell width |
15 cm |
| Height |
54.6 mm |
| Depth |
48 mm |
| Width |
73 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
-20 - 45 °C |
| General |
|---|
| Product family |
Tapo |
| Packaging content |
|---|
| Packaging content |
Tapo Video Doorbell × 1Tapo Chime × 1Mounting Template × 1Mounting Bracket × 1Vertical Mounting Wedge× 1Horizontal Mounting Wedge × 1USB Adapter Cable × 1Jumper for Existing Chime × 1Extension Wires × 2Mounting Screws and Anchors × 3Hardwire Installation Screws × 2Doorbell Detaching Pin × 1Mounting Wedge Screws × 53M Adhesive × 1Foam Pad × 1Wire Nuts × 2Quick Start Guide |
