Dependable 4G Wi-Fi Internet Connectivity
The TL-MR100-Outdoor supports 4G LTE for internet download speeds up to 150 Mbps, paired with fast Wi-Fi speeds of up to 300 Mbps, enabling seamless networking experience.
Durable Outdoor Design for Stable Performance
Engineered for extreme environments, TL-MR100-Outdoor features IP65 waterproofing, operates from -30°C to 60°C, and 6kV lightning & 15kV ESD protection. Maintains uninterrupted connectivity in harsh weather conditions, delivering stable outdoor network performance.

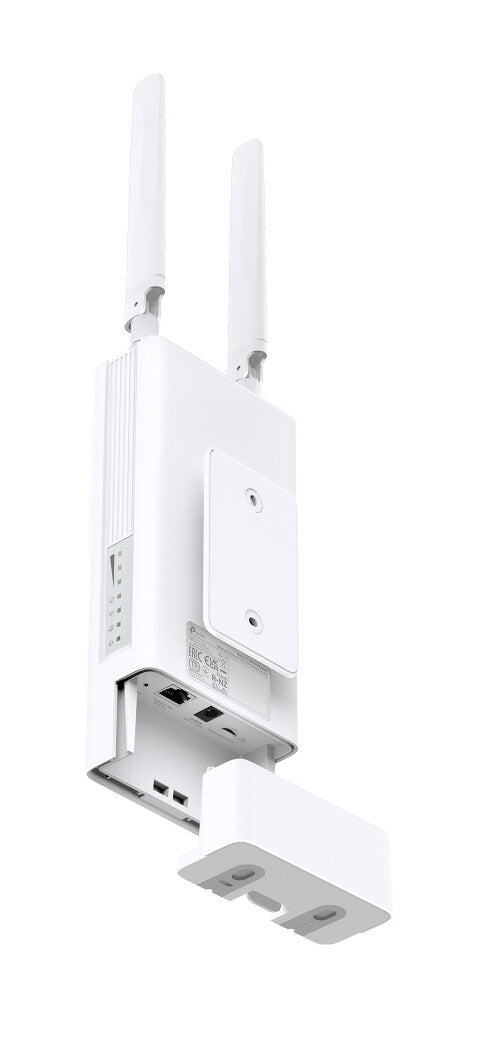

Versatile Installation for Diverse Environments
The TL-MR100-Outdoor offers versatile installation options—mount on a pole or a wall, or adhesive to a window. This flexibility allows for installation in a wide range of environments, from urban areas to rural settings. Easily find the best location for optimal signal, ensuring reliable connectivity.
PoE/DC Power Support: Simplified Outdoor Setup
The TL-MR100-Outdoor features PoE and DC power supply, simplifying outdoor setup with flexible power options and ensuring reliable connectivity in diverse outdoor environments.
Easy Setup and Management
Set up TL-MR100-Outdoor in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
| WAN connection |
|---|
| WAN connection type |
RJ-45 |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
Yes |
| DSL WAN |
Yes |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Network |
|---|
| Receiver sensitivity |
11g 54M: -74 dBm11n HT20: -73 dBm11n HT40: -70 dBm |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) |
20 dBmW |
| Wireless radio |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 4G bands supported |
700,800,850,900,1800,2100,2600 MHz |
| 3G bands supported |
850,900,2100 MHz |
| 4G standard |
LTE-TDD & LTE-FDD |
| 3G standards |
HSPA, HSPA+, UMTS |
| 3G |
Yes |
| 4G |
Yes |
| Mobile network generation |
4G |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Management features |
|---|
| Reset button |
Yes |
| Wireless statistics |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Security |
|---|
| DMZ support |
Yes |
| IP address filtering |
Yes |
| MAC address filtering |
Yes |
| Schedule access |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| Guest access |
Yes |
| Firewall |
Yes |
| Security algorithms |
WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Supported network protocols |
IPv4, IPv6 |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| International Protection (IP) code |
IP65 |
| Wall mountable |
Yes |
| Product colour |
White |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Mounting kit |
Yes |
| PoE injector included |
Yes |
| Cables included |
LAN (RJ-45) |
| Certificates |
|---|
| Certification |
CE, RoHS |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna design |
External |
| Features |
|---|
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) voltage |
48 V |
| Power over Ethernet (PoE) |
Yes |
| Output current |
1 A |
| Output voltage |
12 V |
| Power source type |
DC, PoE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
226.6 mm |
| Depth |
100 mm |
| Height |
54.7 mm |
