600Mbps Powerline Speeds Ideal for HD Streaming
Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. With speed of up to 600Mbps,
TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.

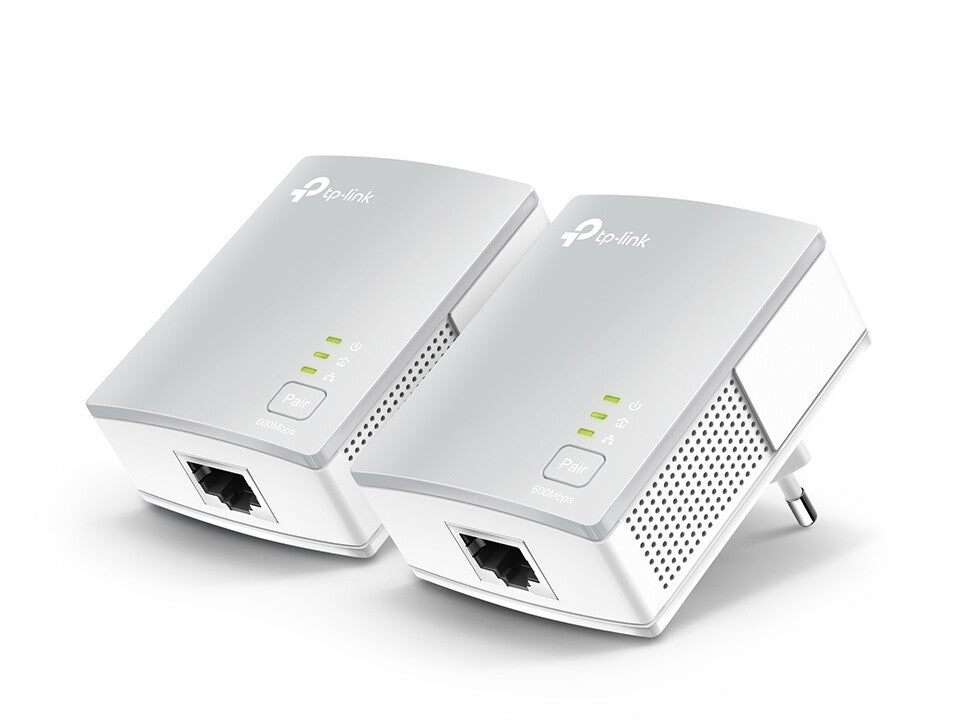

Miniature Design
With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link’s legacy mini 600Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.
Pair Button for Easy Network Security
Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.
It's that simple!
1. Plug the adapter into the power outlet
2. Connect the device via the network cable to the adapter
3. Press the pair buttons—and you're done!
| Performance |
|---|
| Plug and Play |
Yes |
| Encryption button |
Yes |
| Maximum operating distance |
300 m |
| Security algorithms |
128-bit AES |
| Modulation |
OFDM |
| PowerLine standard |
HomePlug AV |
| Built-in power socket |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Wi-Fi |
No |
| Ethernet LAN (RJ-45) ports |
1 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Maximum data transfer rate |
600 Mbit/s |
| Power |
|---|
| Power consumption (standby) |
0.88 W |
| Power consumption (typical) |
4.26 W |
| Design |
|---|
| Certification |
CE, FCC |
| Product colour |
White |
| LED indicators |
Yes |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
28.5 mm |
| Depth |
52 mm |
| Width |
65 mm |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| Quick installation guide |
Yes |
| Quantity per pack |
2 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85171800 |
