What This Product Does

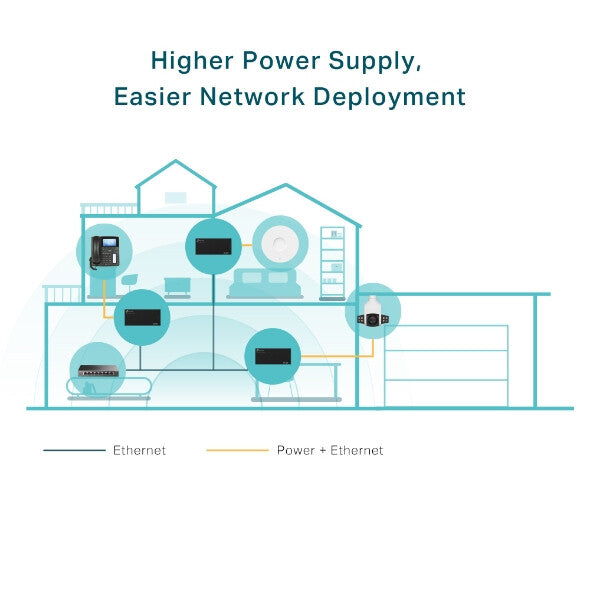

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
| Network |
|---|
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) |
Yes |
| Cabling technology |
10/100/1000 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Features |
|---|

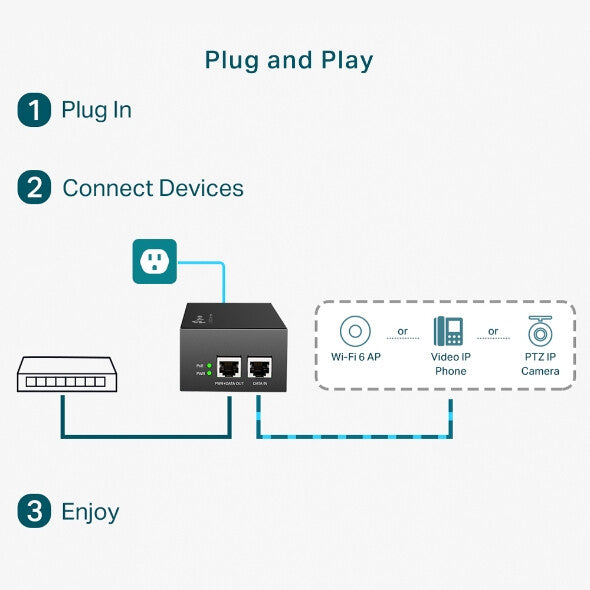

| Plug and Play |
Yes |
| Wall mountable |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Ports & interfaces |
|---|
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Power |
|---|
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| Output power |
60 W |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 45 °C |

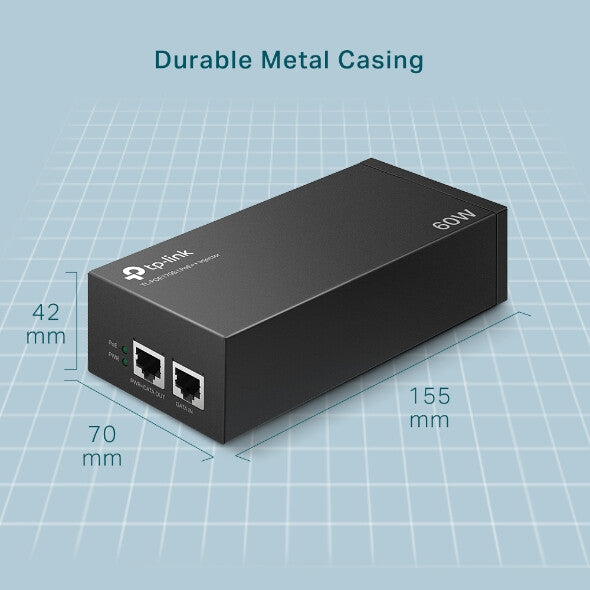

| Weight & dimensions |
|---|
| Height |
42 mm |
| Depth |
70 mm |
| Width |
155 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Number of products included |
1 pc(s) |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
920 g |
| Package height |
95 mm |
| Package depth |
250 mm |
| Package width |
190 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
