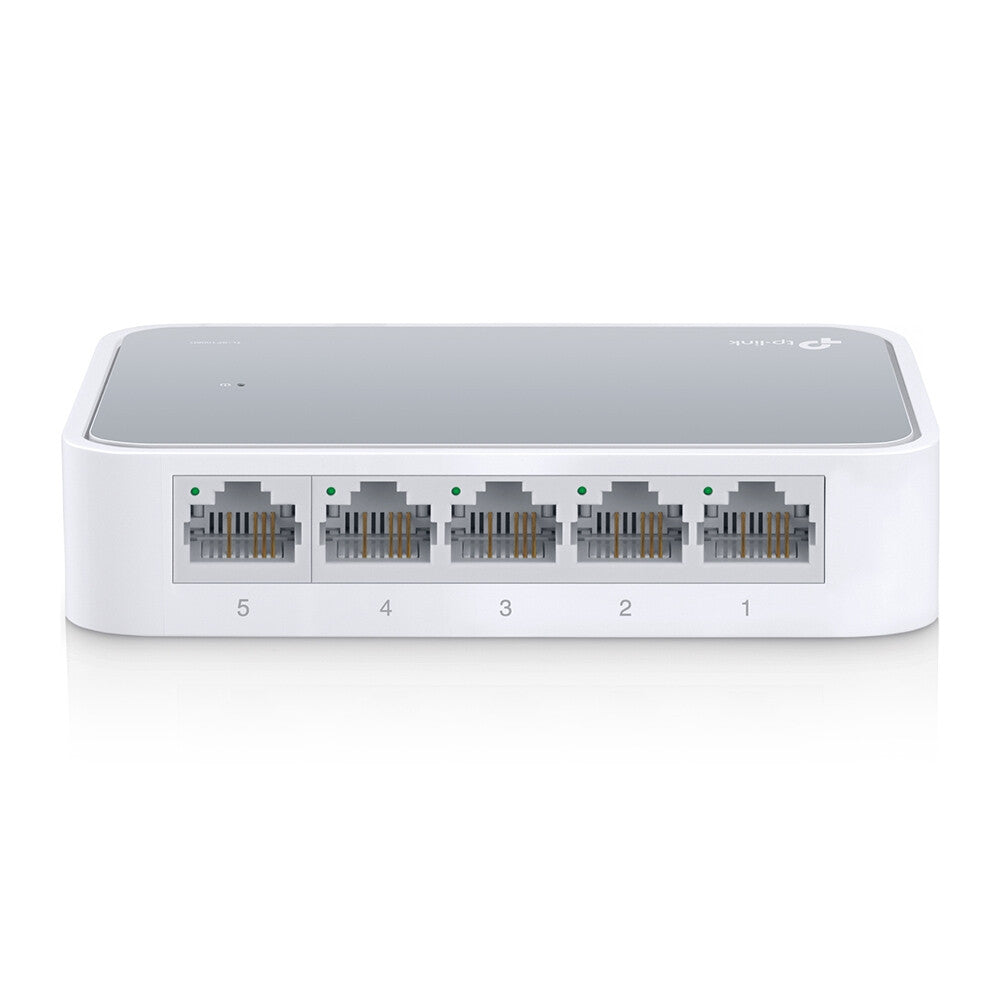

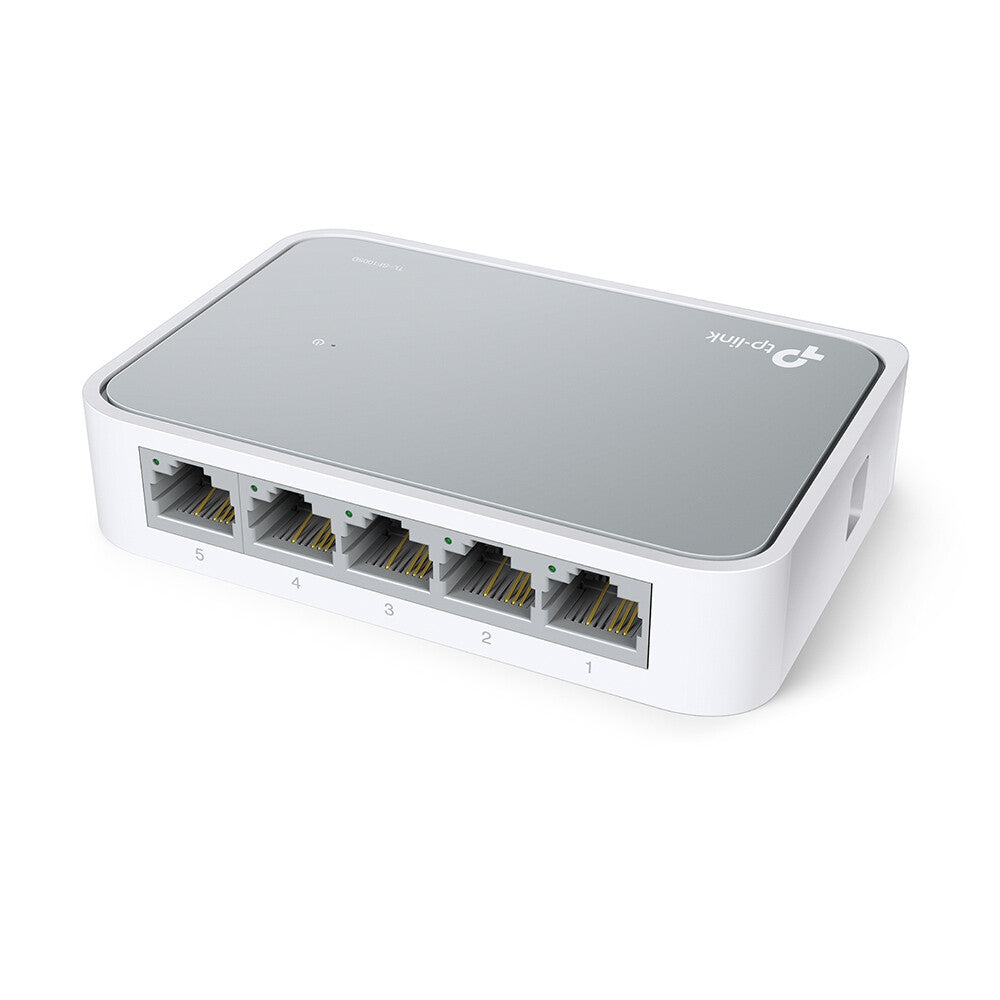

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
| Management features |
|---|
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Power connector |
DC-in jack |
| Fast Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
|---|
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Flow control support |
Yes |
| Spanning tree protocol |
Yes |
| Auto-negotiation |
Yes |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Store-and-forward |
Yes |
| Switching capacity |
1.6 Gbit/s |
| MAC address table |
1000 entries |
| Protocols |
|---|
| Supported network protocols |
CSMA/CD, TCP/IP |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
White |
| Rack mounting |
No |
| Power |
|---|
| Power consumption (max) |
1.87 W |
| Power consumption (typical) |
1.87 W |
| Input current |
0.6 A |
| DC input voltage |
5 V |
| AC input frequency |
50 Hz |
| AC input voltage |
220 V |
| Power supply included |
No |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Heat dissipation |
6.38 BTU/h |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
22 mm |
| Depth |
70 mm |
| Width |
103.5 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
|---|
| Package weight |
190 g |
| Package height |
85 mm |
| Package depth |
108 mm |
| Package width |
91 mm |
| Package type |
Box |
| AC adapter included |
Yes |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Certificates |
|---|
| Certification |
FCC, RoHs |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
