SKU: TL-SG1210MP

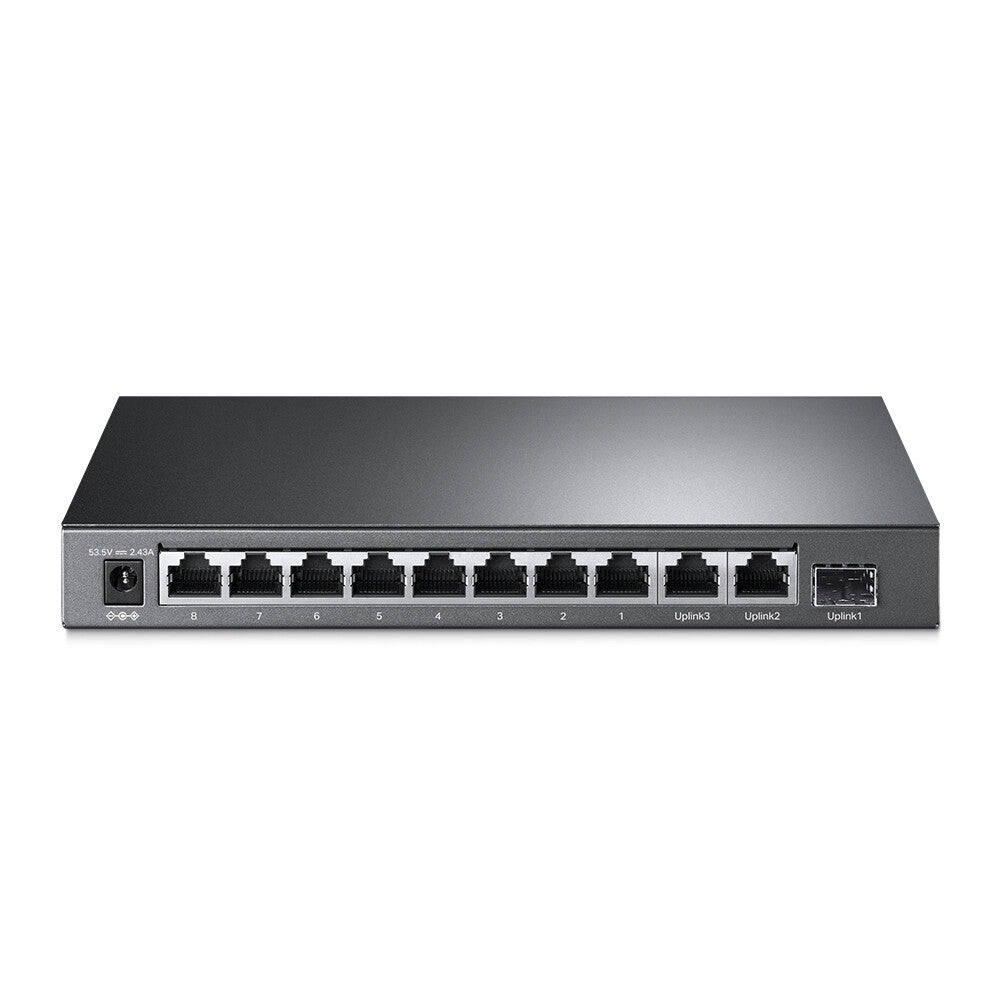

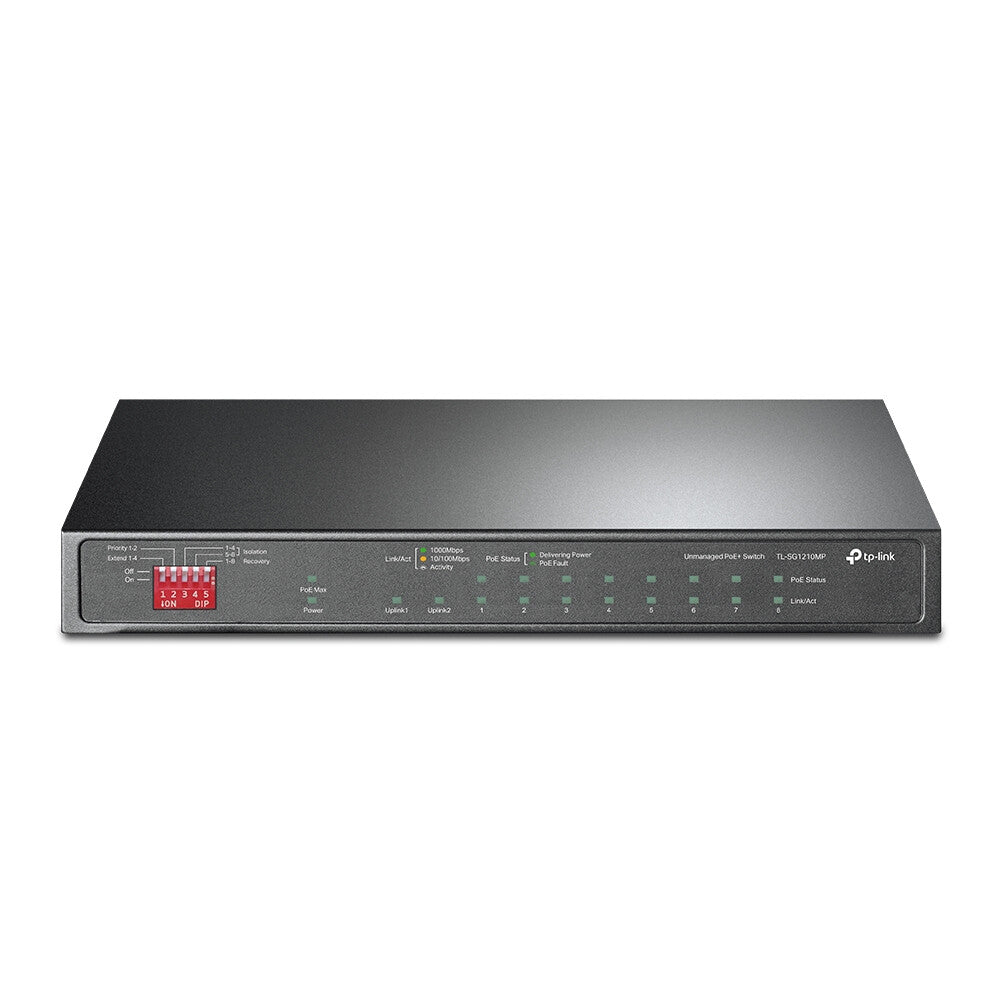

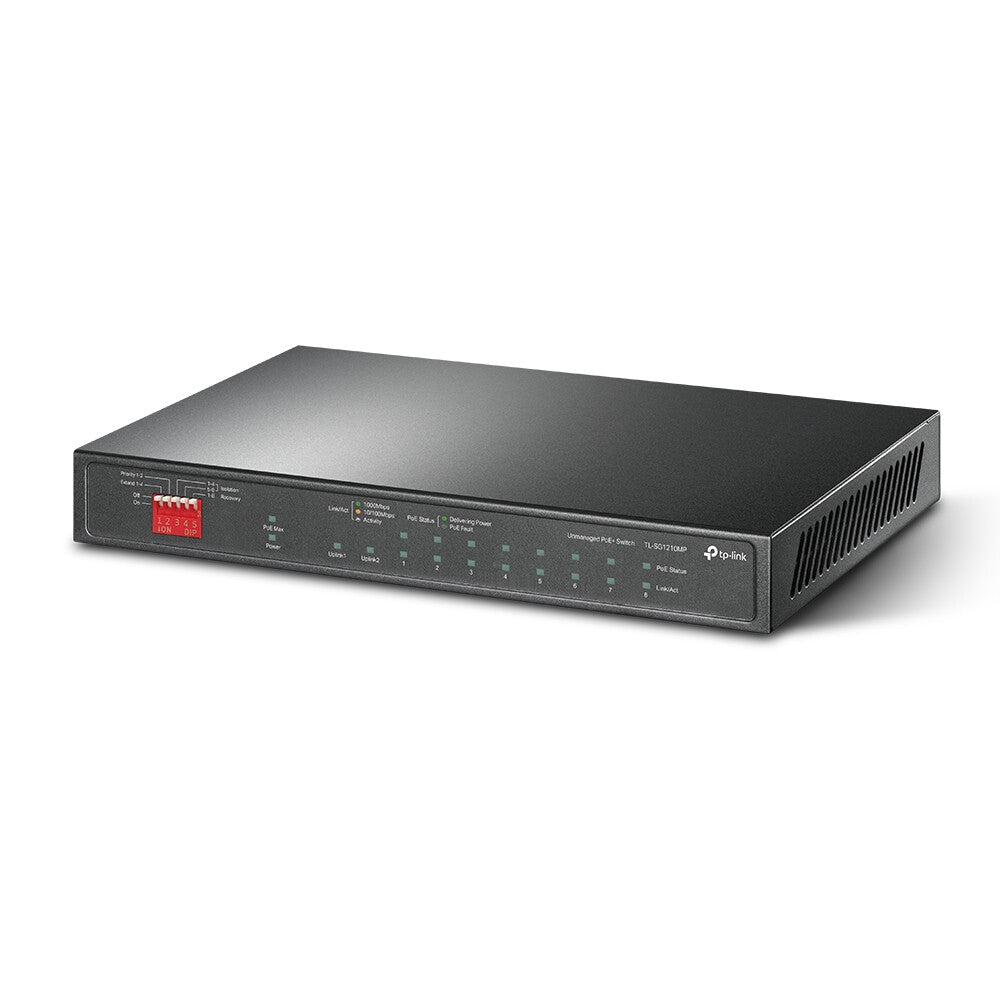

TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-LINK
£109.09
iFrame
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 9
  • Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX
  • MAC address table: 4000 entries Switching capacity: 20 Gbit/s
  • DC Power over Ethernet (PoE)
Management features
Switch type Unmanaged
Ports & interfaces
Combo SFP ports quantity 1
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 9
Network
MAC address auto-aging supported Yes
Auto MDI/MDI-X Yes
MAC address auto-learning supported Yes
Flow control support Yes
Auto-negotiation Yes
Cable types supported Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
10G support No
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 14.88 MB
Store-and-forward Yes
Switching capacity 20 Gbit/s
MAC address table 4000 entries
Design
LED indicators Yes
Product colour Black
Rack mounting No
Performance
Fanless Yes
Power
Power consumption (max) 141.4 W
Input voltage 53.5 V
Input current 2.43 A
Power source DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 123 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 482.17 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 26 mm
Depth 126 mm
Width 209 mm
Packaging content
Quick start guide Yes
Packaging data
Package weight 1.41 kg
Package height 70 mm
Package depth 315 mm
Package width 240 mm
Certificates
Certification CE, FCC
Logistics data
Harmonized System (HS) code 85176990
