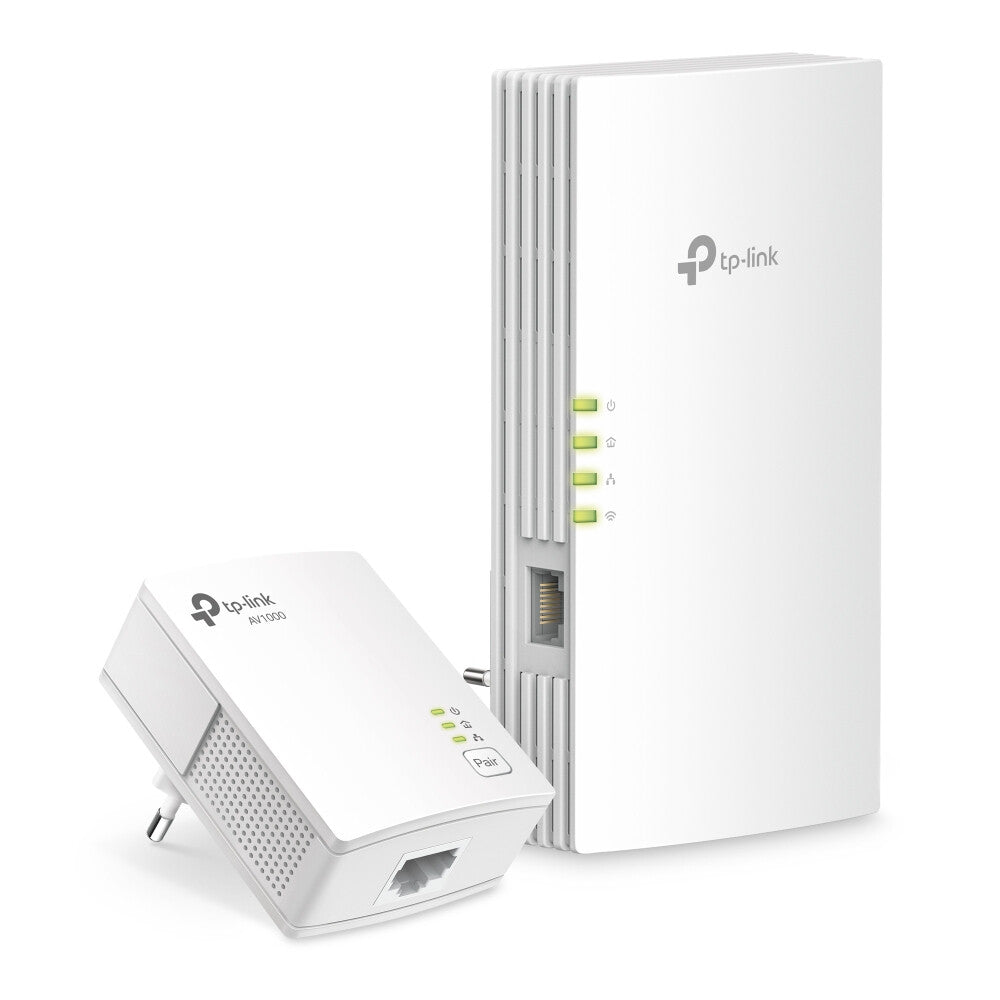

Extend AX1500 Wi-Fi and Gigabit Networking to Every Room
AV1000 Gigabit Powerline AX1500 Wi-Fi 6 Kit

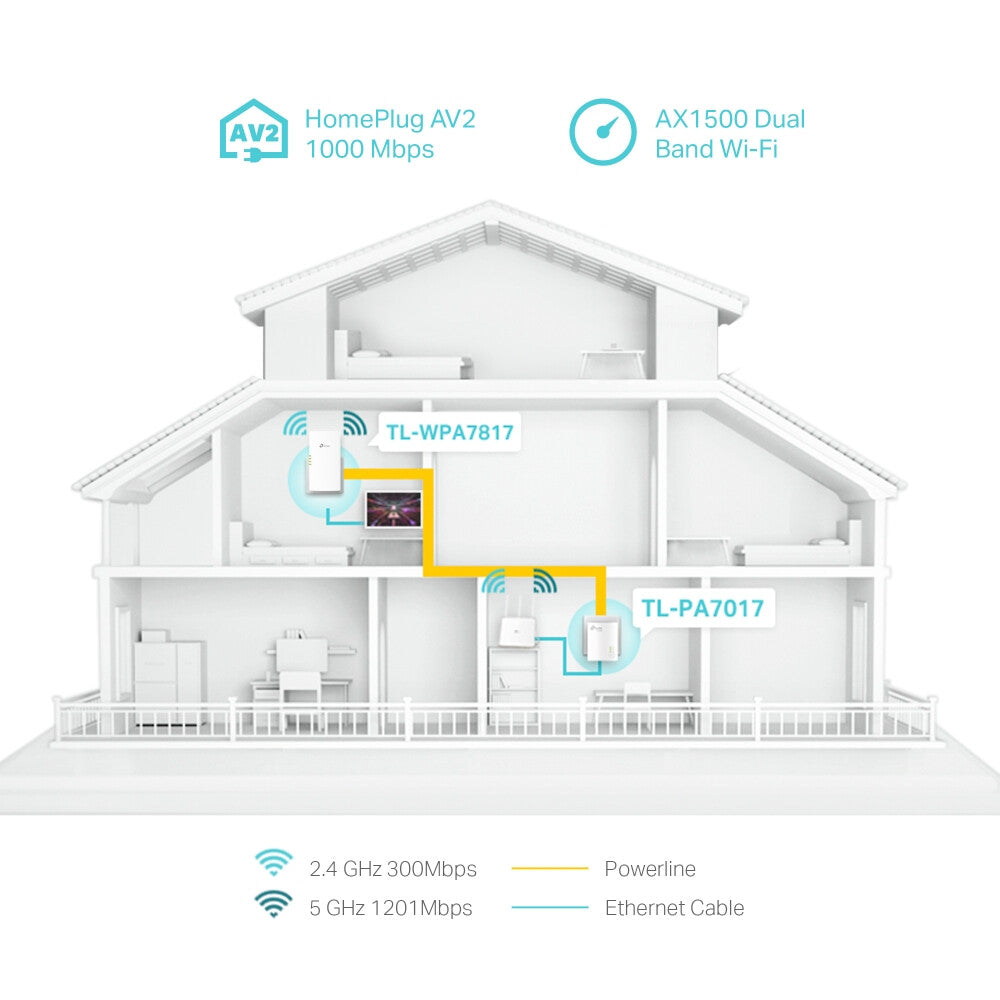

Extend Wired and Wireless Network Using Electrical System
TL-WPA7817 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
> No need for drilling or wire installation
> Network passes through walls and floors
> Expand coverage by adding more extenders

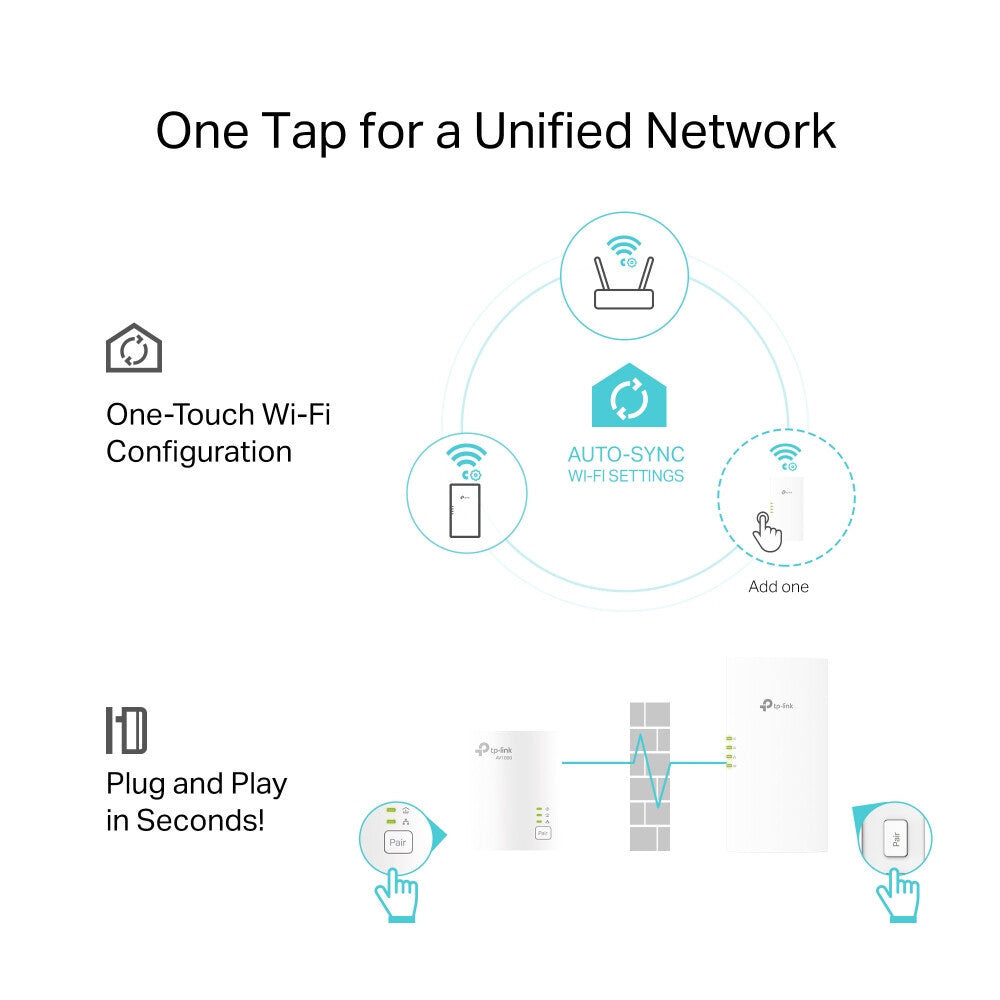

One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup. Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

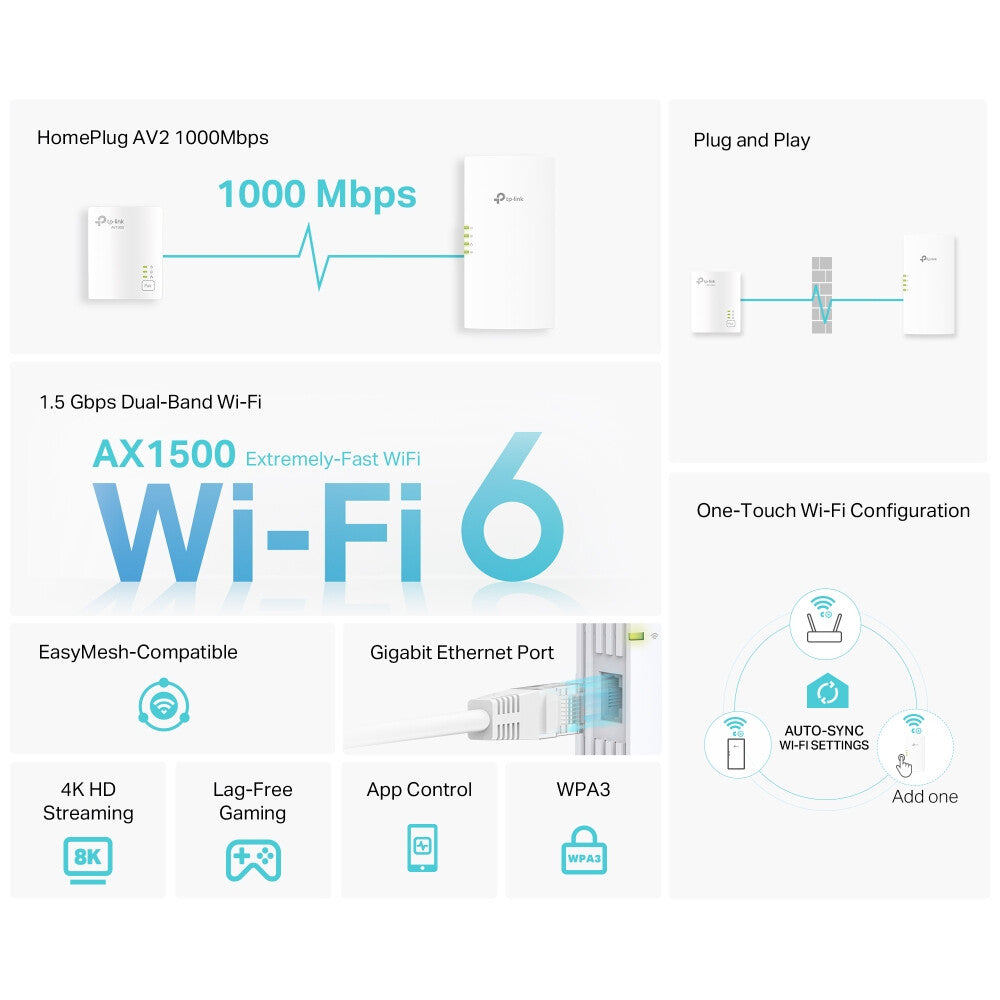

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7817 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters†. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Performance |
Plug and Play |
Yes |
Maximum operating distance |
300 m |
Security algorithms |
128-bit AES, WEP, WPA-PSK, WPA2-PSK |
Modulation |
OFDM |
PowerLine standard |
HomePlug AV2 |
Built-in power socket |
Yes |
Networking standards |
IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
WLAN data transfer rate (first band) |
300 Mbit/s |
WLAN data transfer rate (second band) |
1201 Mbit/s |
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
Wi-Fi |
Yes |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Ethernet LAN interface type |

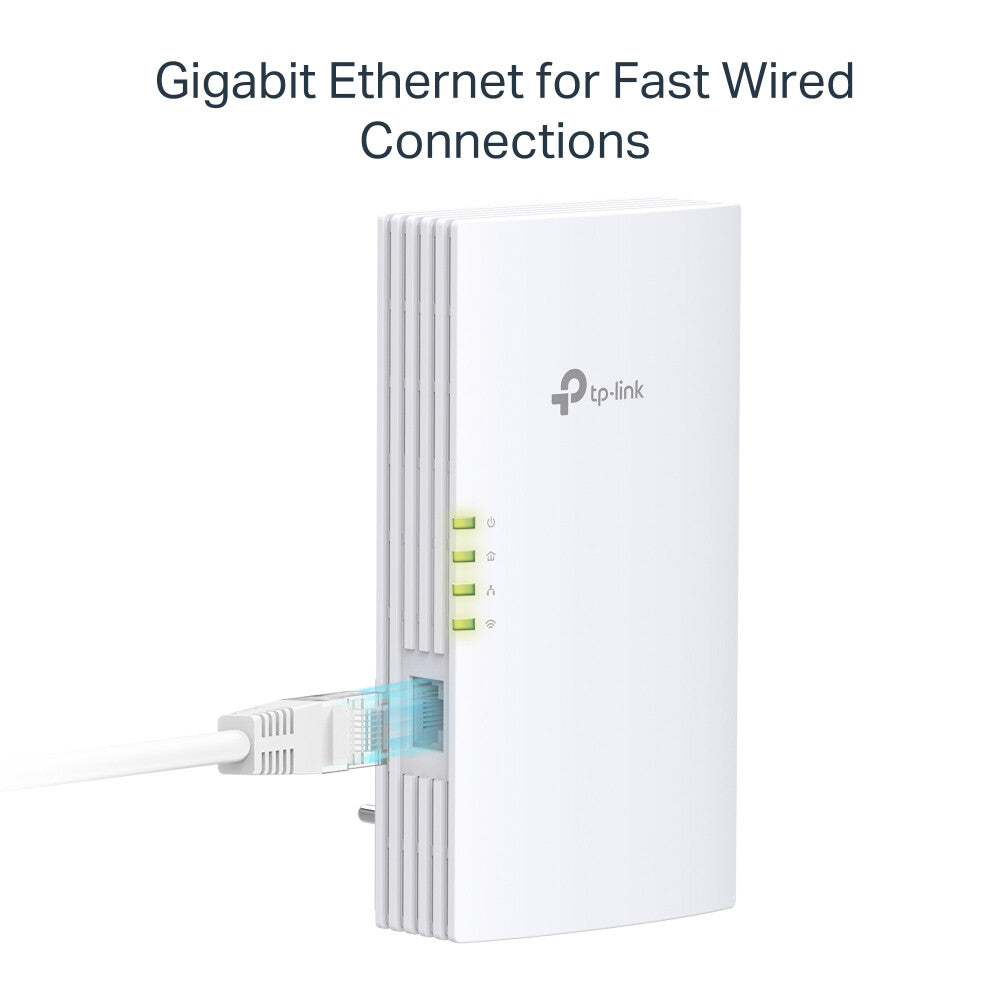

Gigabit Ethernet |
Ethernet LAN |
Yes |
Maximum data transfer rate |
1000 Mbit/s |
Design |
Product colour |
White |
LED indicators |
Yes |
System requirements |
Mac operating systems supported |
Yes |
Linux operating systems supported |
Yes |
Mac compatibility |
Yes |
Windows operating systems supported |
Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Operational conditions |
Operating relative humidity (H-H) |
10 - 90% |
Operating temperature (T-T) |
0 - 40 °C |
Certificates |
Compliance certificates |
CE, RoHS |
Packaging content |
Cables included |
LAN (RJ-45) |
Quick installation guide |
Yes |
