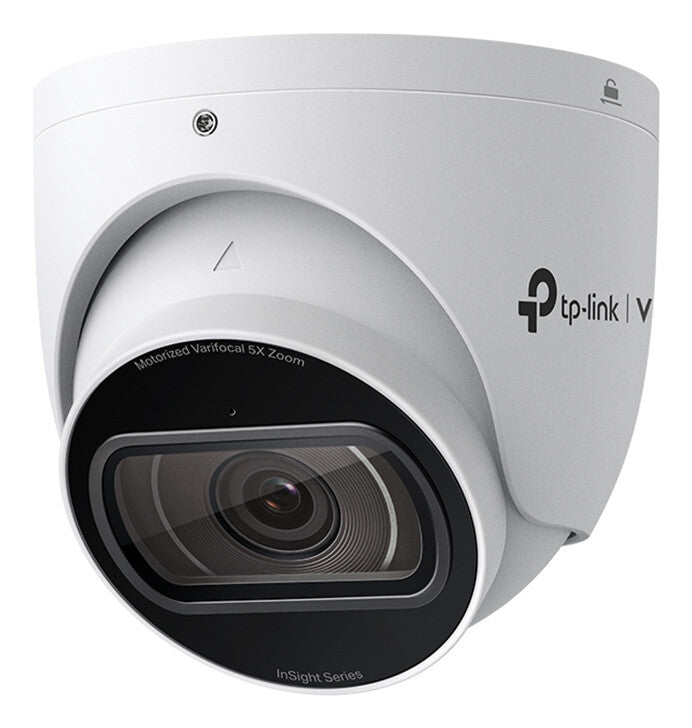

Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance |
|---|
| Dynamic range |
120 dB |
| Remote viewing |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
|---|
| Weatherproof |
Yes |
| International Protection (IP) code |
IP67 |
| Protection features |
Waterproof |
| Housing material |
Metal |
| Product colour |
White |
| Mounting type |
Ceiling |
| Form factor |
Turret |
| Camera |
|---|
| Number of Privacy masking areas |
4 |
| Camera shutter speed |
1/3 to 1/10000 |
| Pan range |
0 - 360° |
| Tilt angle range |
0 - 77° |
| Lens viewing angle, diagonal |
34.1–122.8 |
| Lens viewing angle, vertical |
16.8–53.8 |
| Lens viewing angle, horizontal |
29.6–102 |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9") |
| Sensor type |
CMOS |
| Lens system |
|---|
| Detect distance (wide) |
66 m |
| Detect distance (tele) |
207 m |
| Observe distance (wide) |
28 m |
| Observe distance (tele) |
86 m |
| Recognize distance (wide) |
13 m |
| Recognize distance (tele) |
41 m |
| Identify distance (wide) |
7 m |
| Identify distance (tele) |
21 m |
| Maximum aperture number |
1.6 |
| Auto focus |
Yes |
| Focus |
Motorized |
| Focal length range |
2.7 - 13.5 mm |
| Optical zoom |
5x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
|---|
| Infra-red wavelength |
850 nm |
| Number of illumination LEDs |
4 |
| LED type |
IR |
| Night vision distance |
60 m |
| Night vision |
Yes |
| Video |
|---|
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Smart IR |
Yes |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation, Sharpness |
| Bit rate |
Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps |
| Back Light Compensation (BLC) |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Video recording |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|

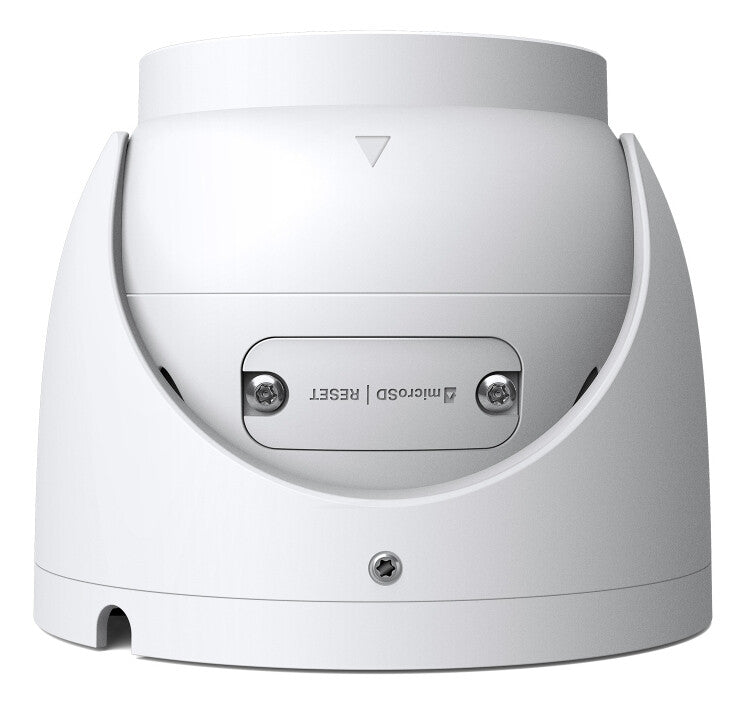

| Card reader integrated |
Yes |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Motion sensor |
Yes |
| Alert notification type |
Push notification |
| Privacy protection |
Yes |
| Human and vehicle targets classification |
Yes |
| Password protection |
Yes |
| Built-in siren |
Yes |
| Alarm output channels |
1 |
| Alarm input channels |
1 |
| Power |
|---|
| DC output voltage |
12 |
| Power consumption (max) |
10.8 W |
| Power source type |
DC, PoE |
| Weight & dimensions |
|---|
| Diameter |
11.2 cm |
| Height |
92.5 mm |
| Packaging data |
|---|
| Package weight |
960 g |
| Packaging content |
|---|
| Screws included |
Yes |
| Number of cameras |
1 |
