Wireless Bridge 5 GH 867 Mbps Long-Range Indoor/Outdoor Access Point
- Long-Distance Transmission
- Auto-Pairing
- Agile LEDs for Easy Deployment

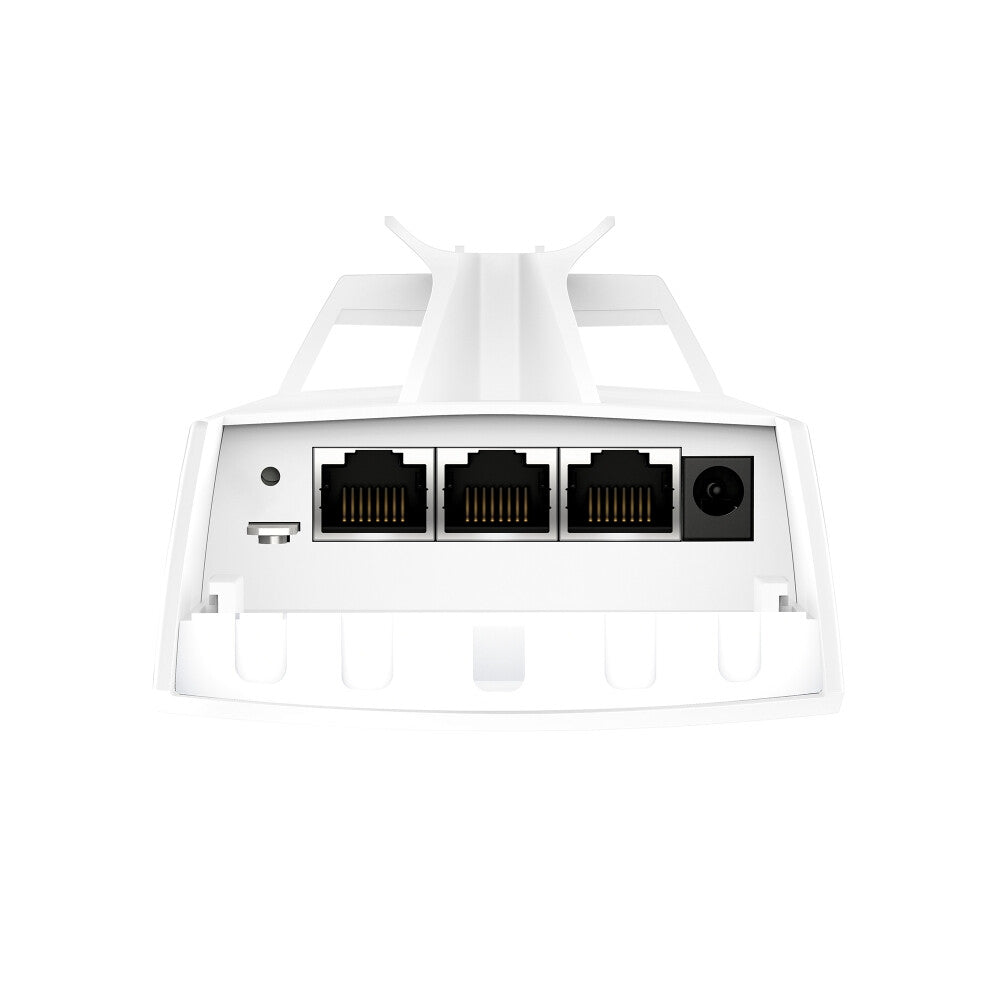

- 3× Fast Ethernet Ports
- 12V DC/Passive PoE
- IP65 Weatherproof & 6 KV Lightning Protection
- Omada Centralized Cloud Management
- Passive PoE Adapter Included
5-km Long-Distance Wi-Fi Transmission
Easy and Simple Deployment
Point-to-Point Connection, Perfect for Surveillance
Seamless Integration into Omada SDN
| Features |
|---|
| BeamForming |
Yes |
| Quality of Service (QoS) support |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate |
867 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
No |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| MAC address filtering |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3, SSH |
| Management features |
|---|
| Syslog |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
3 |
| Power |
|---|
| DC voltage range |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Design |
|---|
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
White |
| Placement |
Pole |
| Antenna |
|---|
| Polarization |
Dual polarization |
| Antenna gain level (max) |
11 dBi |
| Antenna features |
Integrated antenna |
| Antenna direction type |
Directional |
| Antenna type |
Internal |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Weight & dimensions |
|---|
| Weight |
330.9 g |
| Height |
60 mm |
| Depth |
79 mm |
| Width |
224 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
