SKU: XZ000-G6

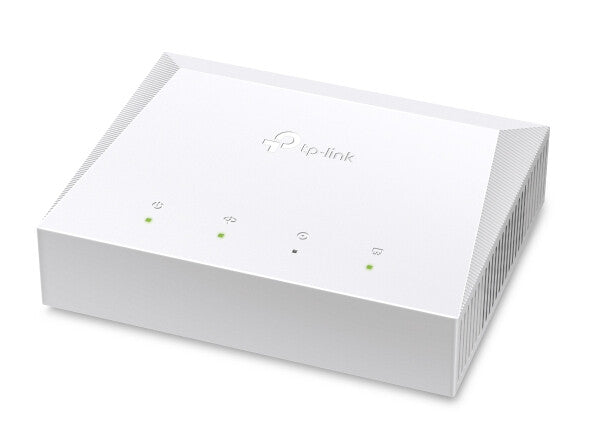

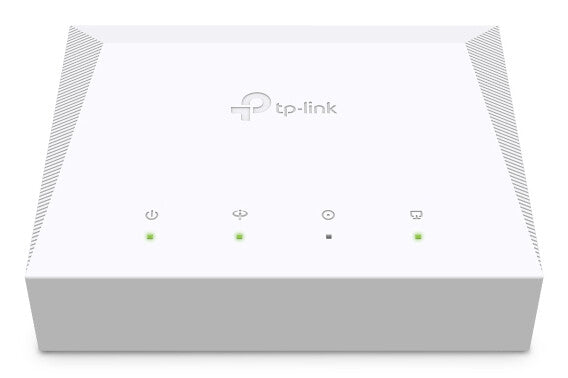

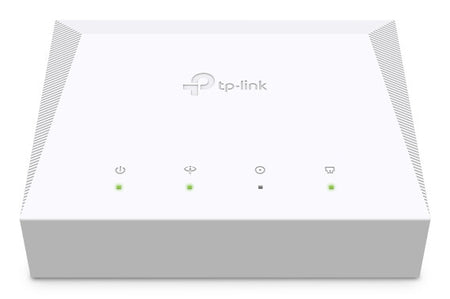

TP-Link XZ000-G6 network terminal/unit Optical network terminal (ONT)

TP-LINK
£14.92
  • Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds.*
  • XPON Support: EPON + GPON dual mode offers greater flexibility for fiber internet access.
  • Ease of Use: Quick and hassle-free installation with easy setup.
  • Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management.

Gig+ Fiber Access
Crafted with GPON + EPON dual-mode capability, XZ000-G6 delivers up to 2.5 Gbps of internet access via GPON, catering to your high-speed home networking needs, while the EPON mode improves flexibility with automatic detection and switch.

Gigabit Wired Connectivity
XZ000-G6 features a gigabit Ethernet LAN port that utilizes XPON technology, delivering transmission speeds of up to 1 Gbps for high-speed internet access and a flawless streaming experience—ideal for FTTH (Fiber to the Home) applications.

Centralized Remote Management
Service providers can remotely configure and manage devices using the OMCI (ONU Management Control Interface) protocol, streamlining operations and delivering a smoother service experience for home users.

Backed by a Comprehensive FTTH
(Fiber-to-the-Home) Solution
Under the Aginet flagship, TP-Link offers comprehensive one-stop solutions for FTTH applications to service providers, whether based on GPON or XGS-PON. Service providers can roll out their service plans with reduced operation and maintenance costs and increase ARPU with improved user satisfaction, while home users can enjoy a better networking experience.

Design
Product colour White
Product type Optical network terminal (ONT)
Network
Transmission distance (max) 20 km
Downstream data rate 1250 Mbit/s
Upstream data rate 1250 Mbit/s
ITU standards G.984.2, G.984.3, G.984.4, G.988
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u
Wireless LAN features
Wi-Fi No
Management features
Reset button Yes

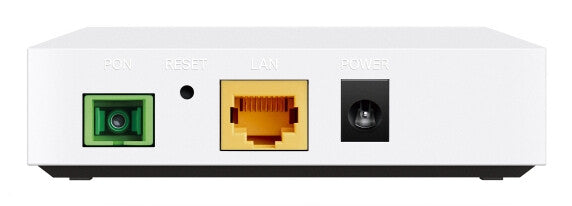

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Fiber ports quantity 1
Certificates
Compliance certificates CE, RoHS
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 29.3 mm
Depth 75 mm
Width 95 mm
