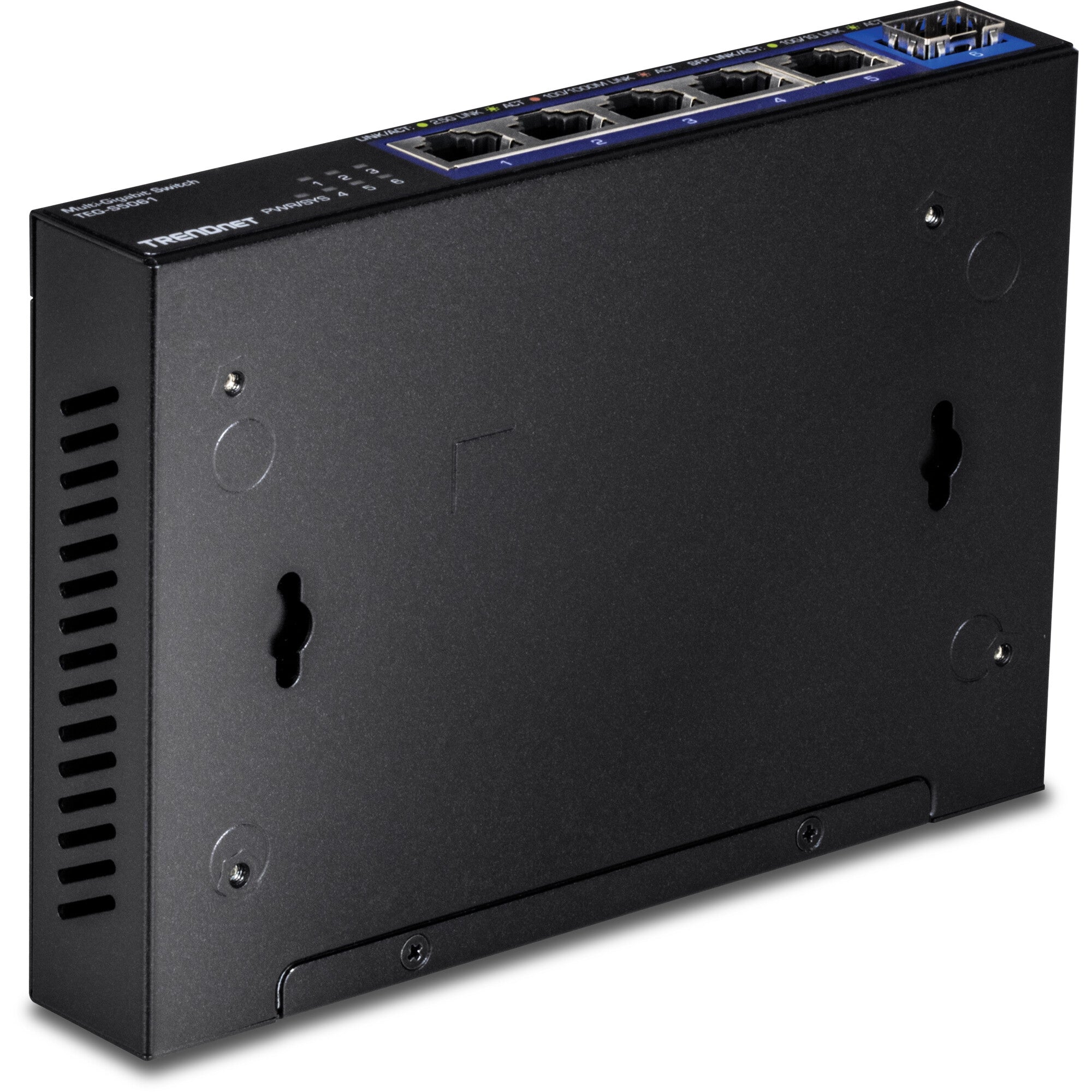

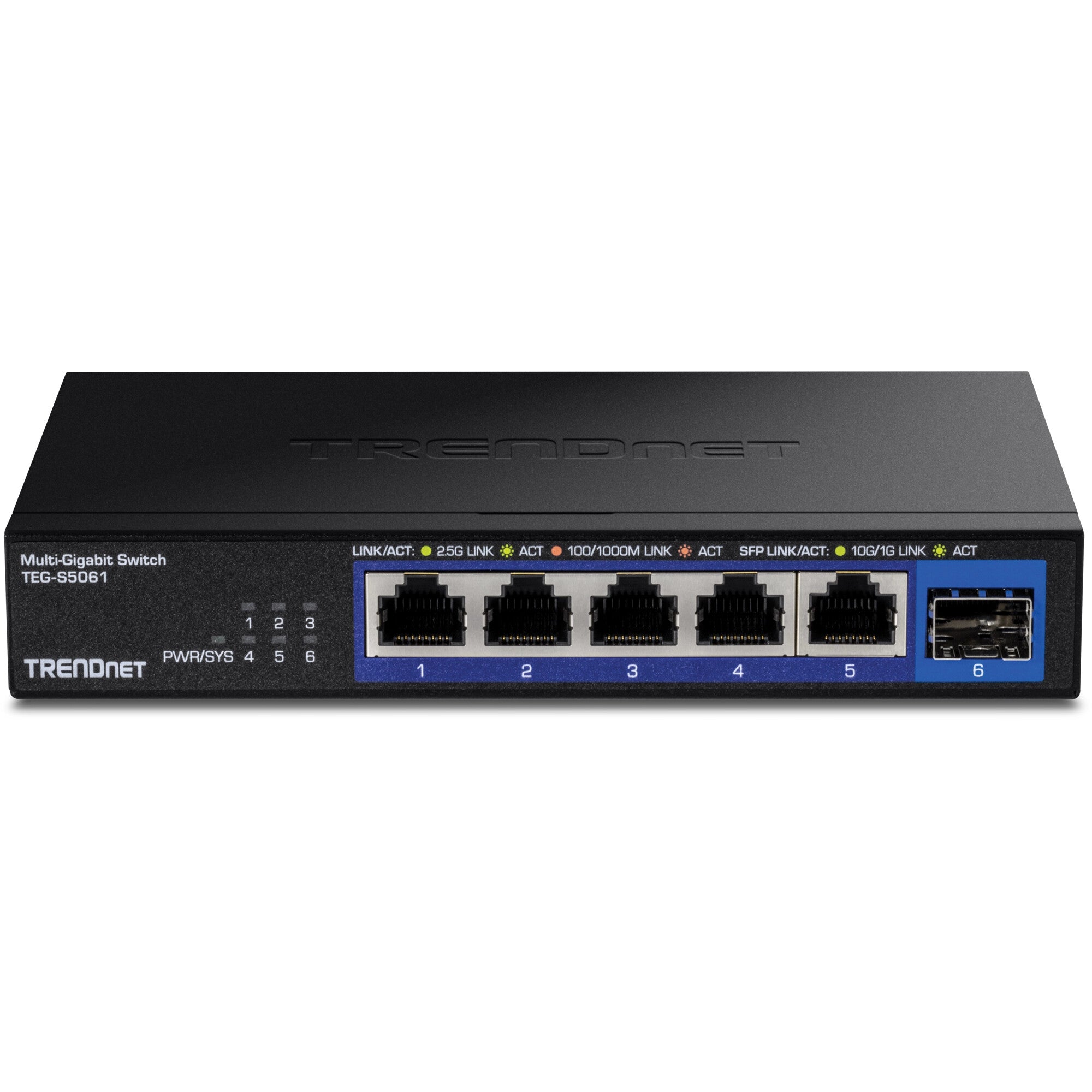

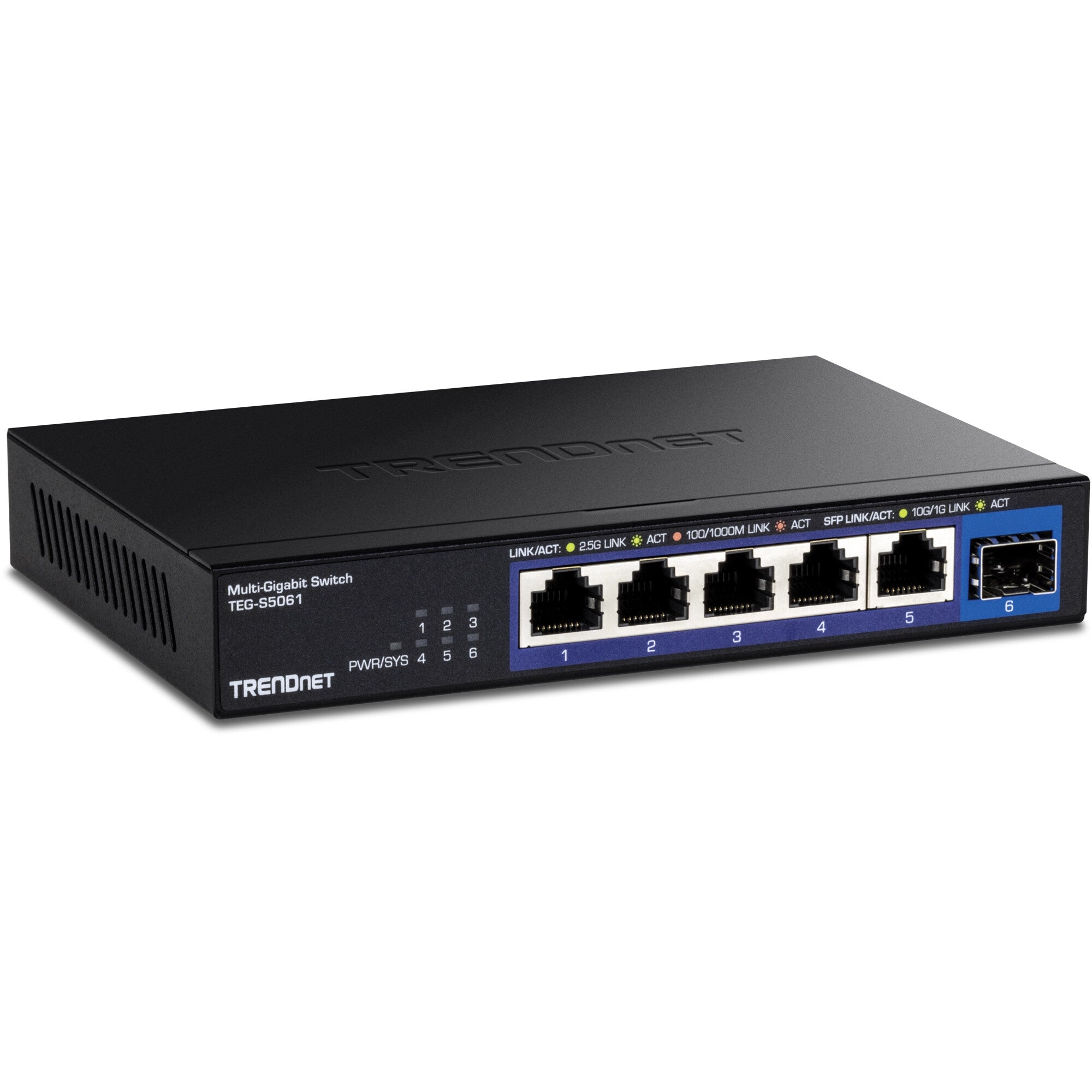

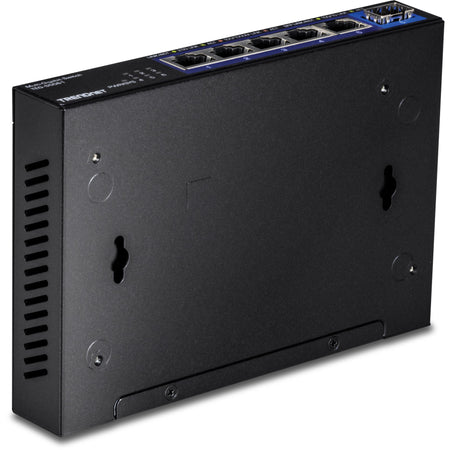

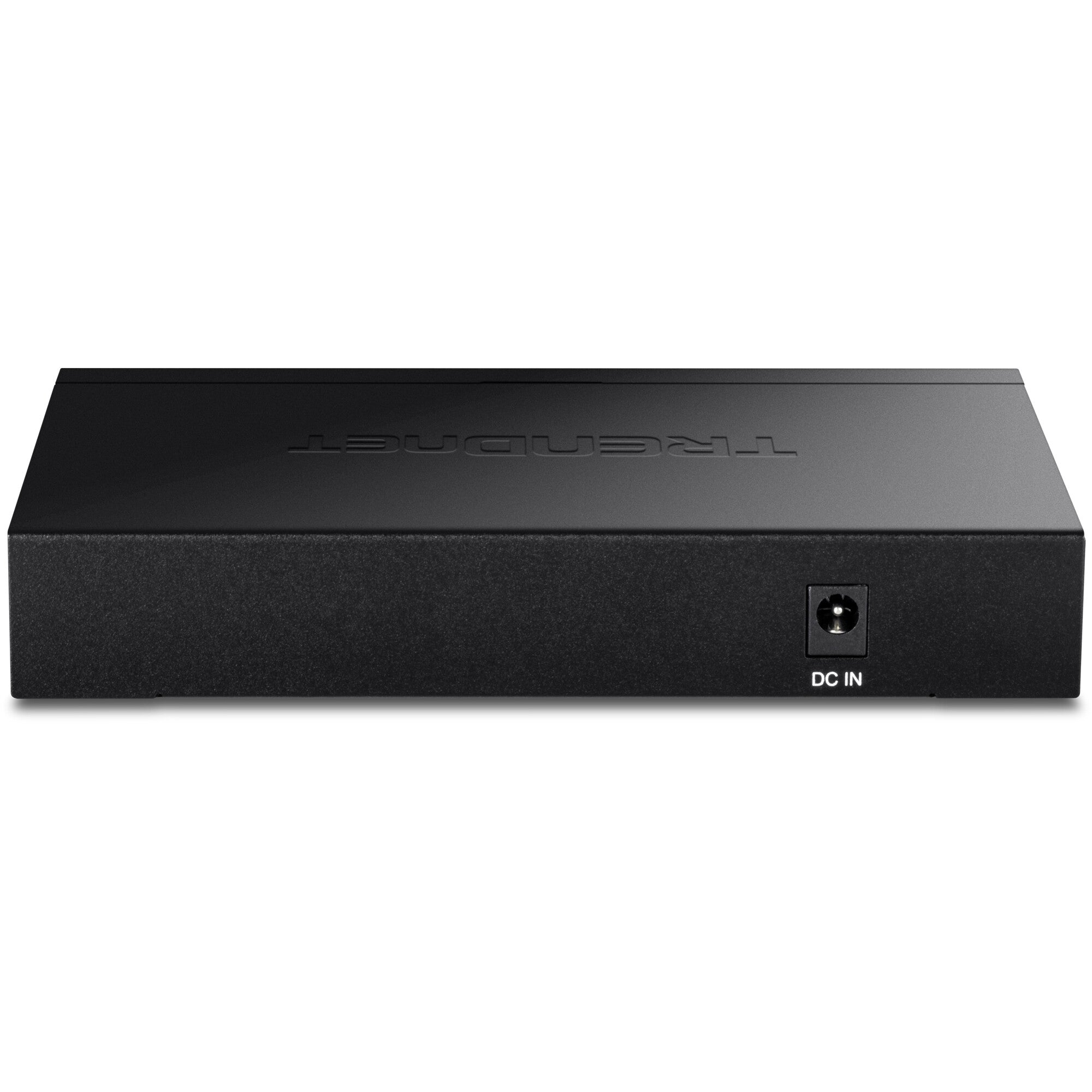

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 6-Port 2.5G Unmanaged Switch with 10G SFP+ Port. These multi-gig network switches come equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ port for long-distance fiber networking. Each multi-gig switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable switches are cost-effective solutions to increase your network’s throughput.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
1 |
| 2.5G Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
|---|
| Full duplex |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
|---|
| Jumbo frames |
12000 |
| Jumbo frames support |
Yes |
| Forwarding rate |
33.8 Mpps |
| Switching capacity |
45 Gbit/s |
| MAC address table |
4000 entries |
| Design |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| Performance |
|---|
| Mean time between failures (MTBF) |
674176 h |
| Fanless |
Yes |
| Power |
|---|
| Power consumption (max) |
9.5 W |
| Input current |
1 A |
| DC input voltage |
12 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
414 g |
| Height |
26 mm |
| Depth |
110 mm |
| Width |
160 mm |
| Certificates |
|---|
| Certification |
FCCCE |
