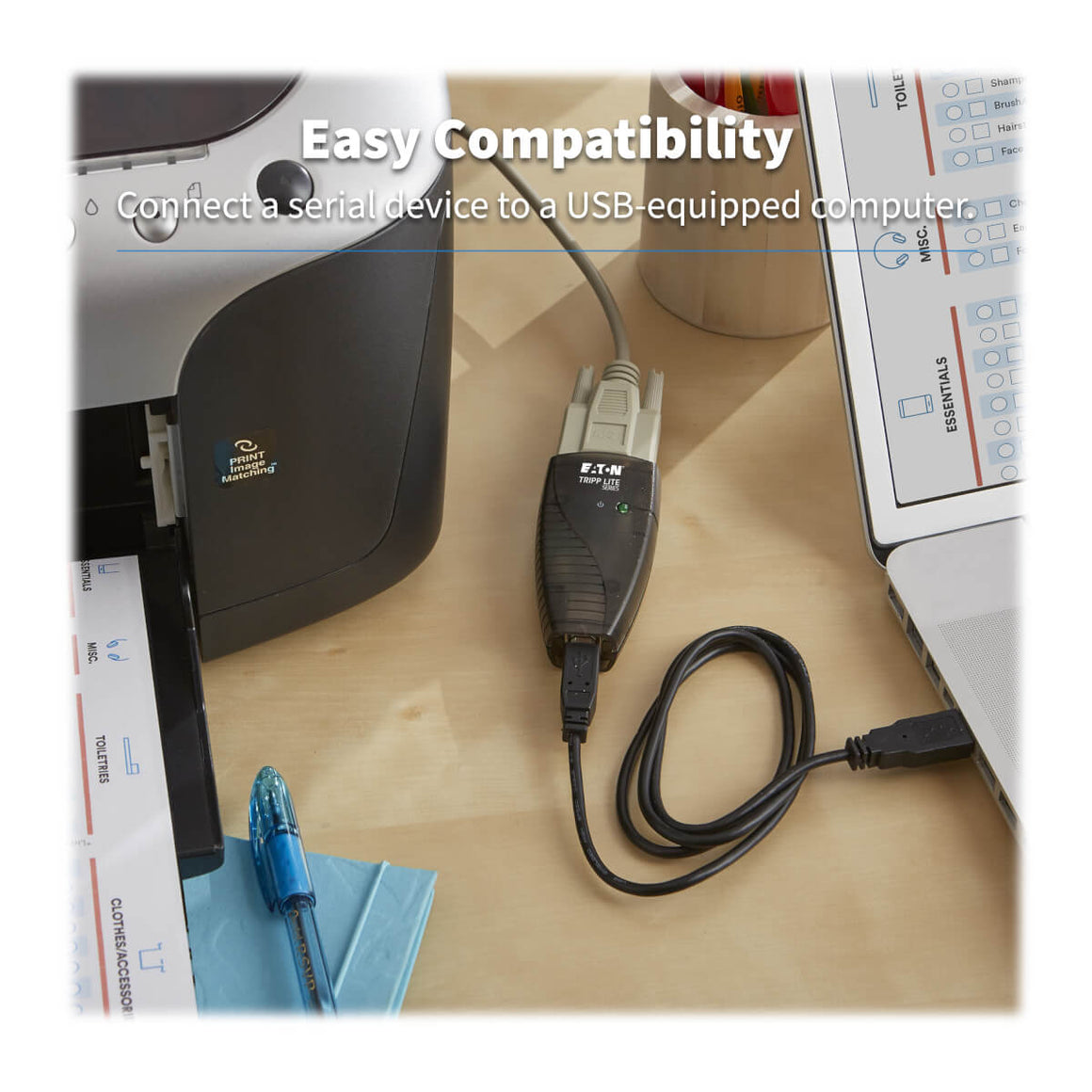

Works with RS-232 Serial Devices

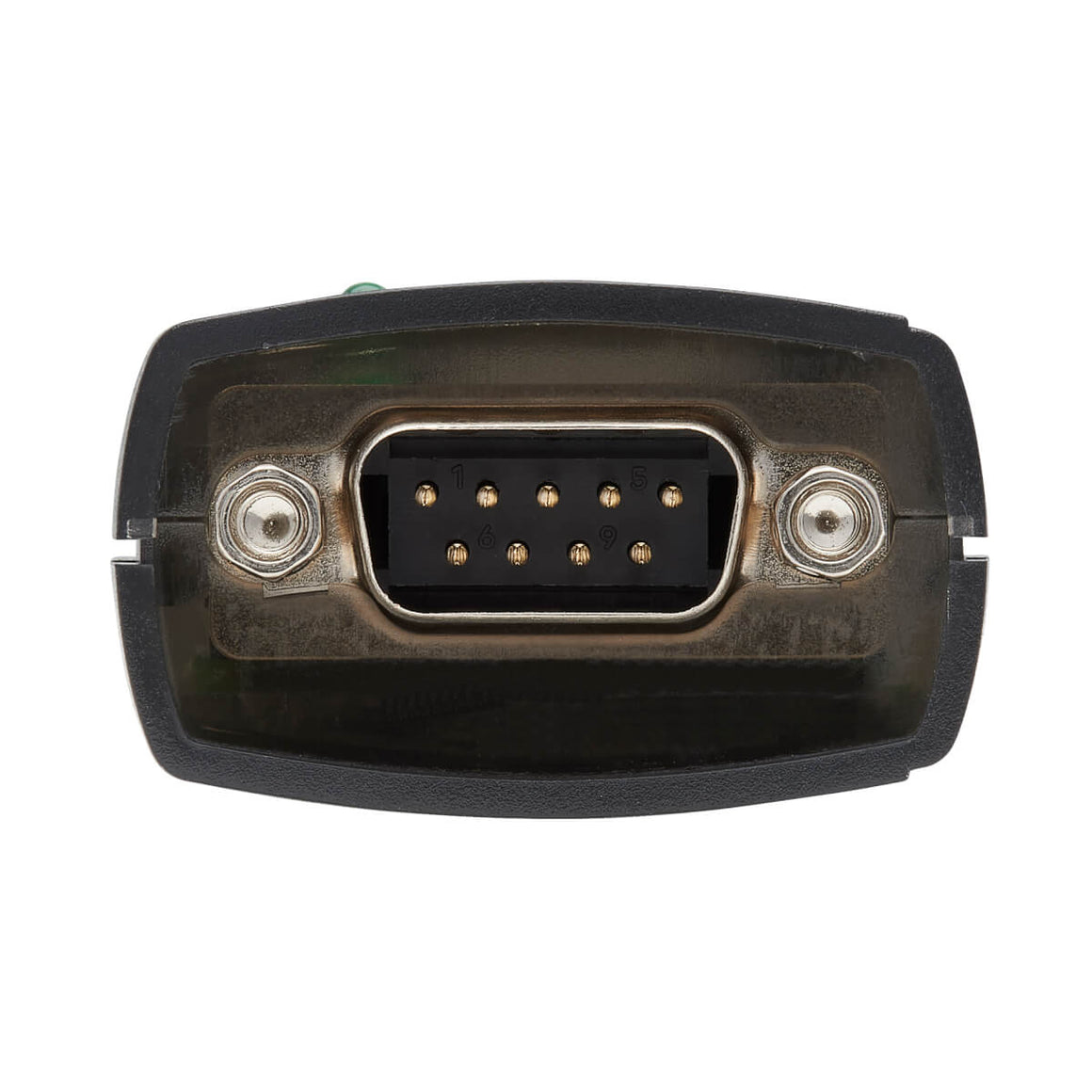

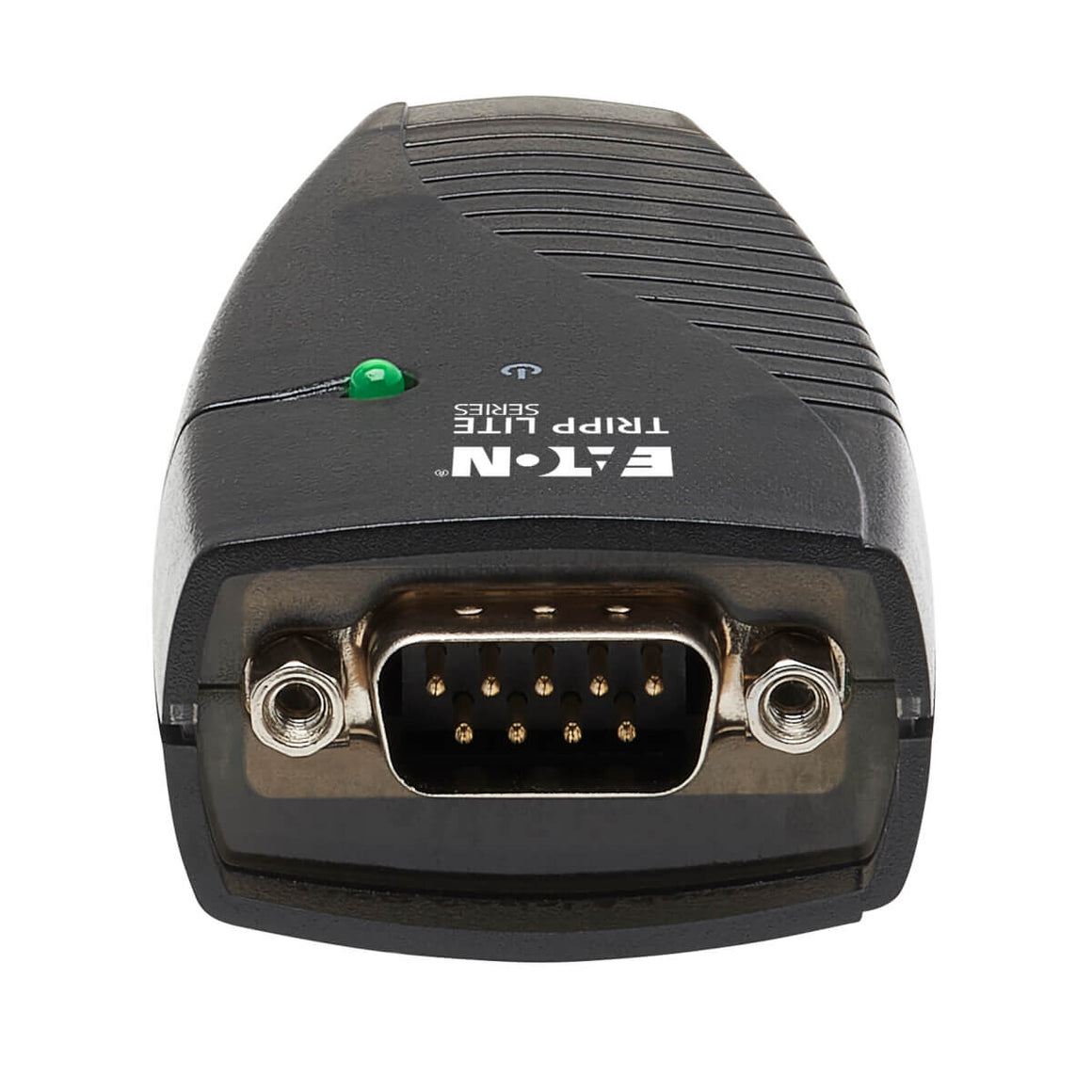

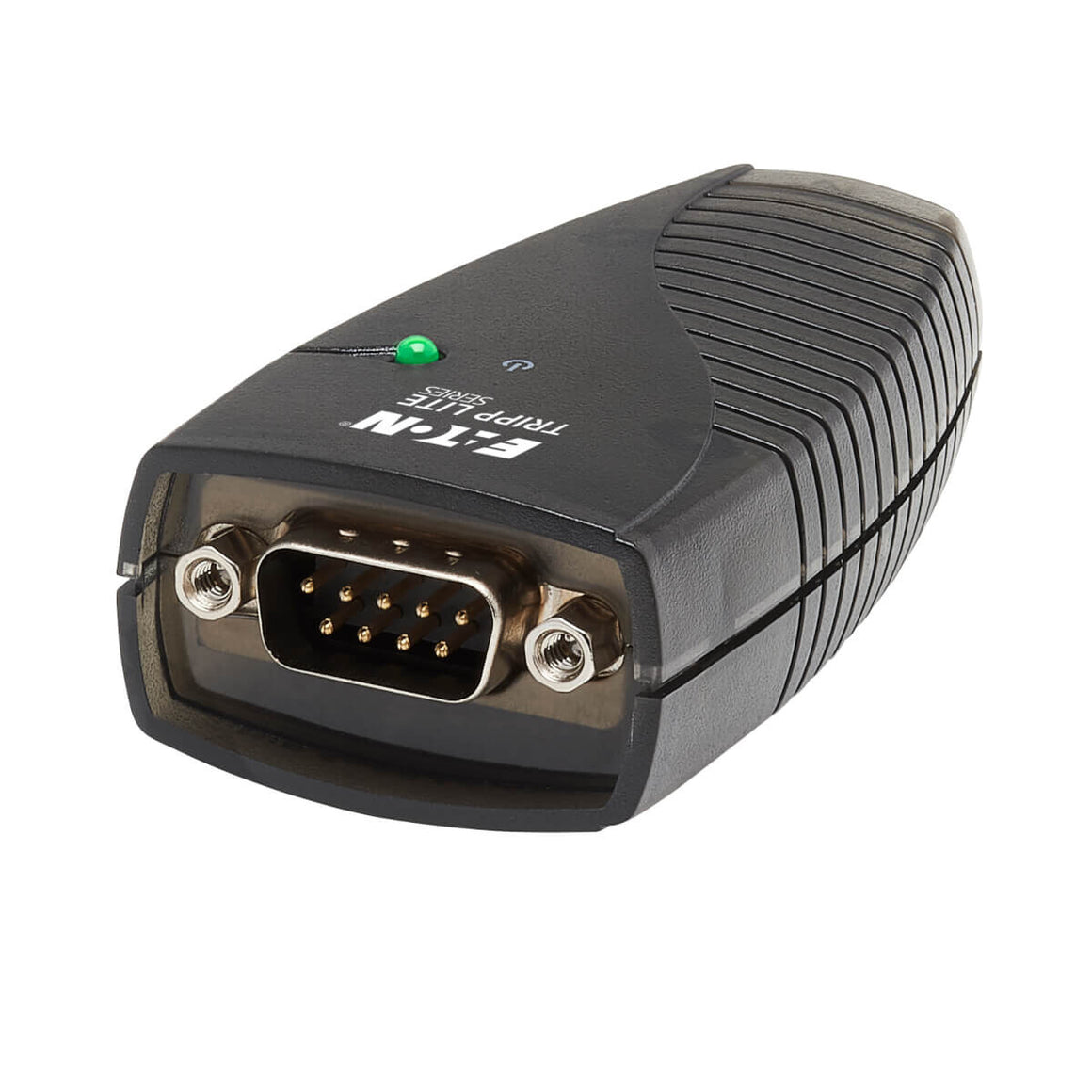

Connects to switches, routers, barcode scanners, GPS units, point-of-sale devices, lab equipment, network storage devices, modems, graphics tablets and other devices with a DB9 serial port. Supports data transfer speeds up to 230 Kbps—twice as fast as a built-in serial port.
Easy to Set Up and Use Right Out of the Box

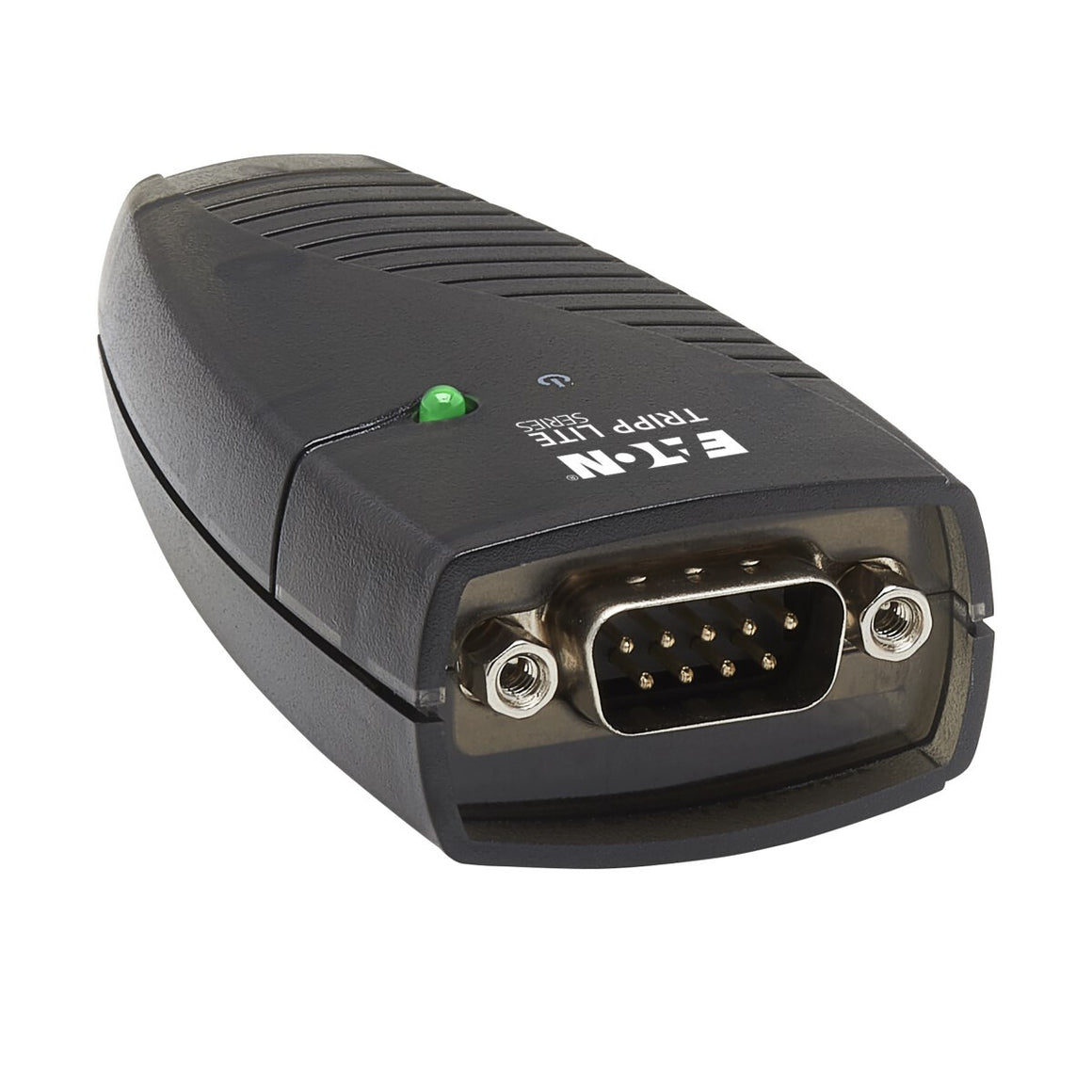

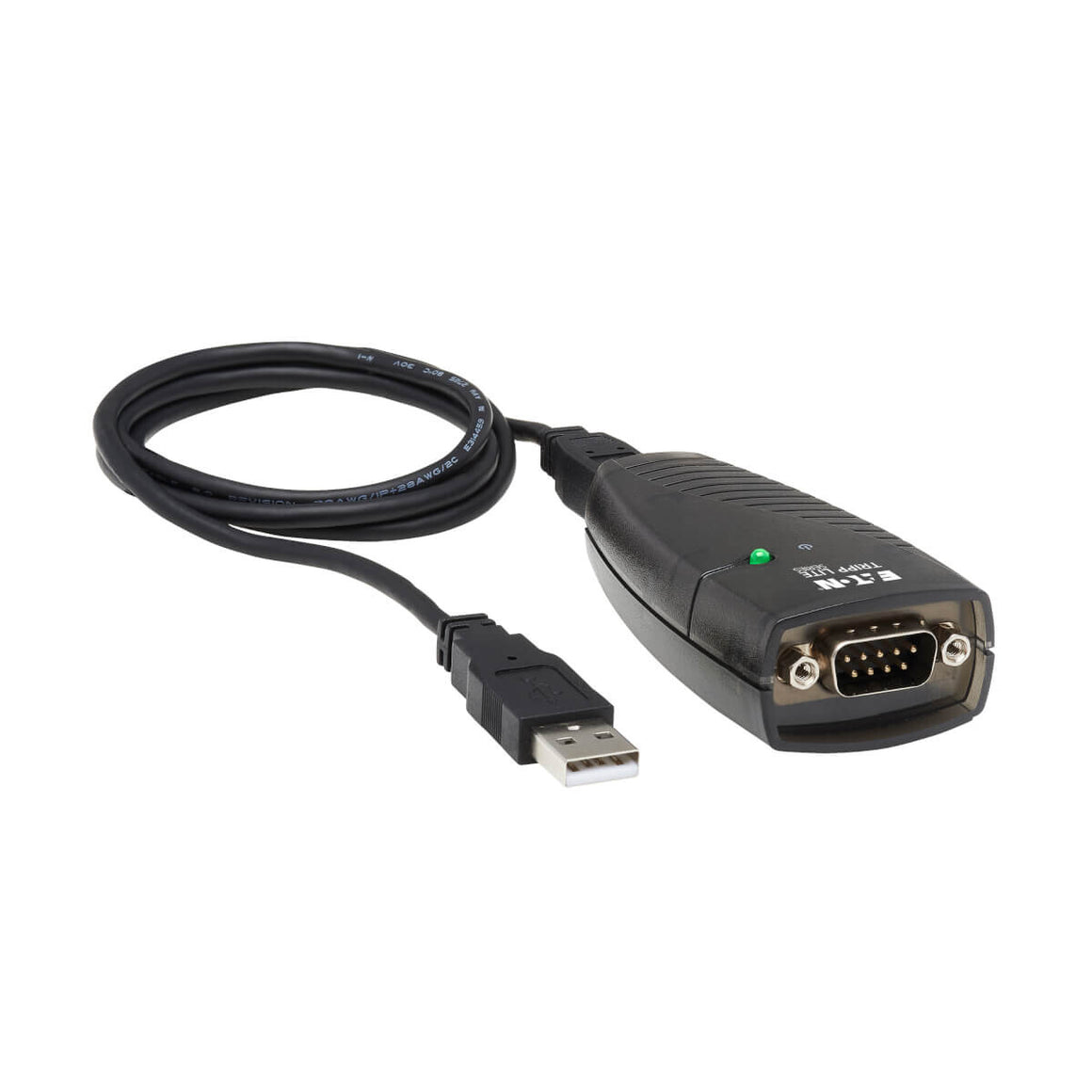

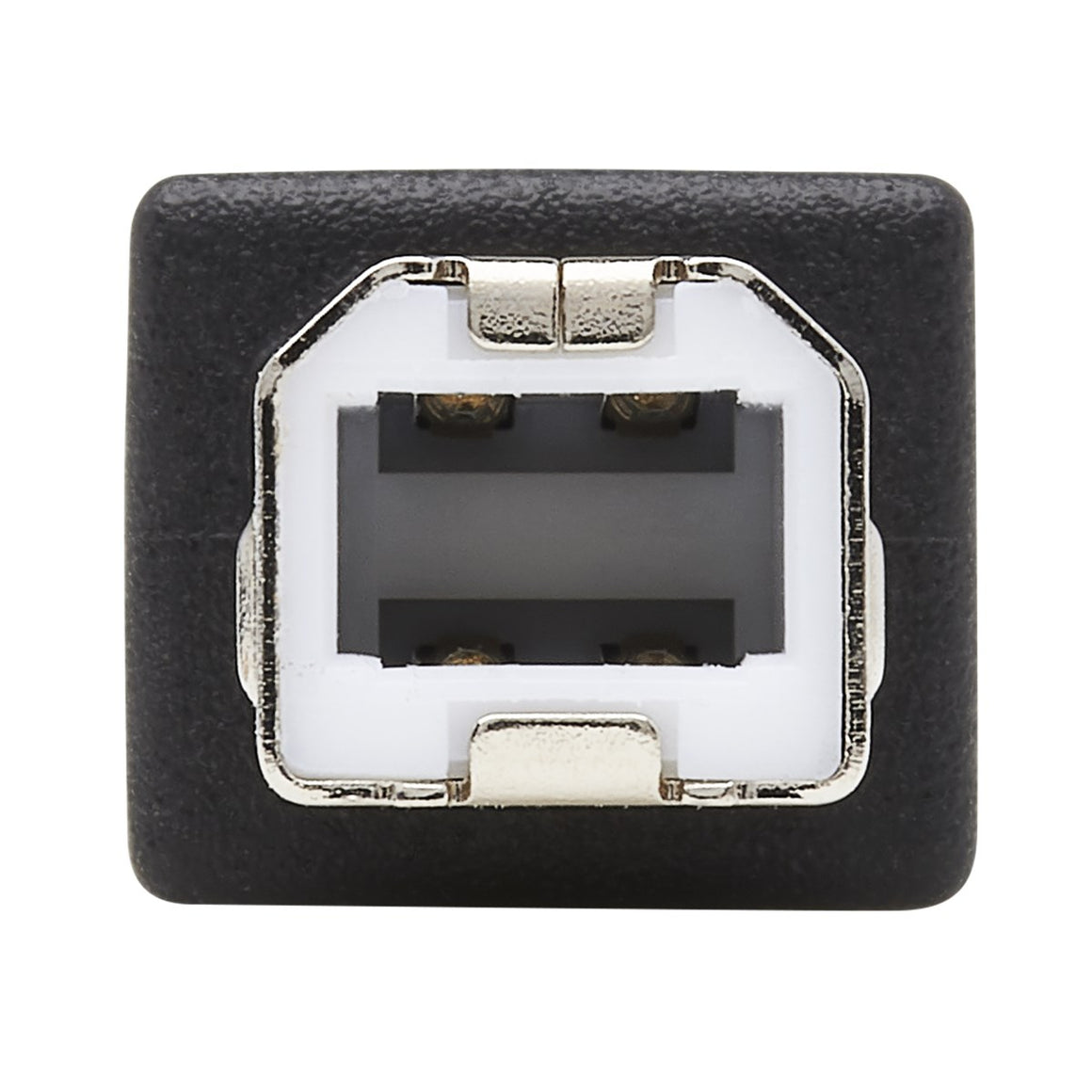

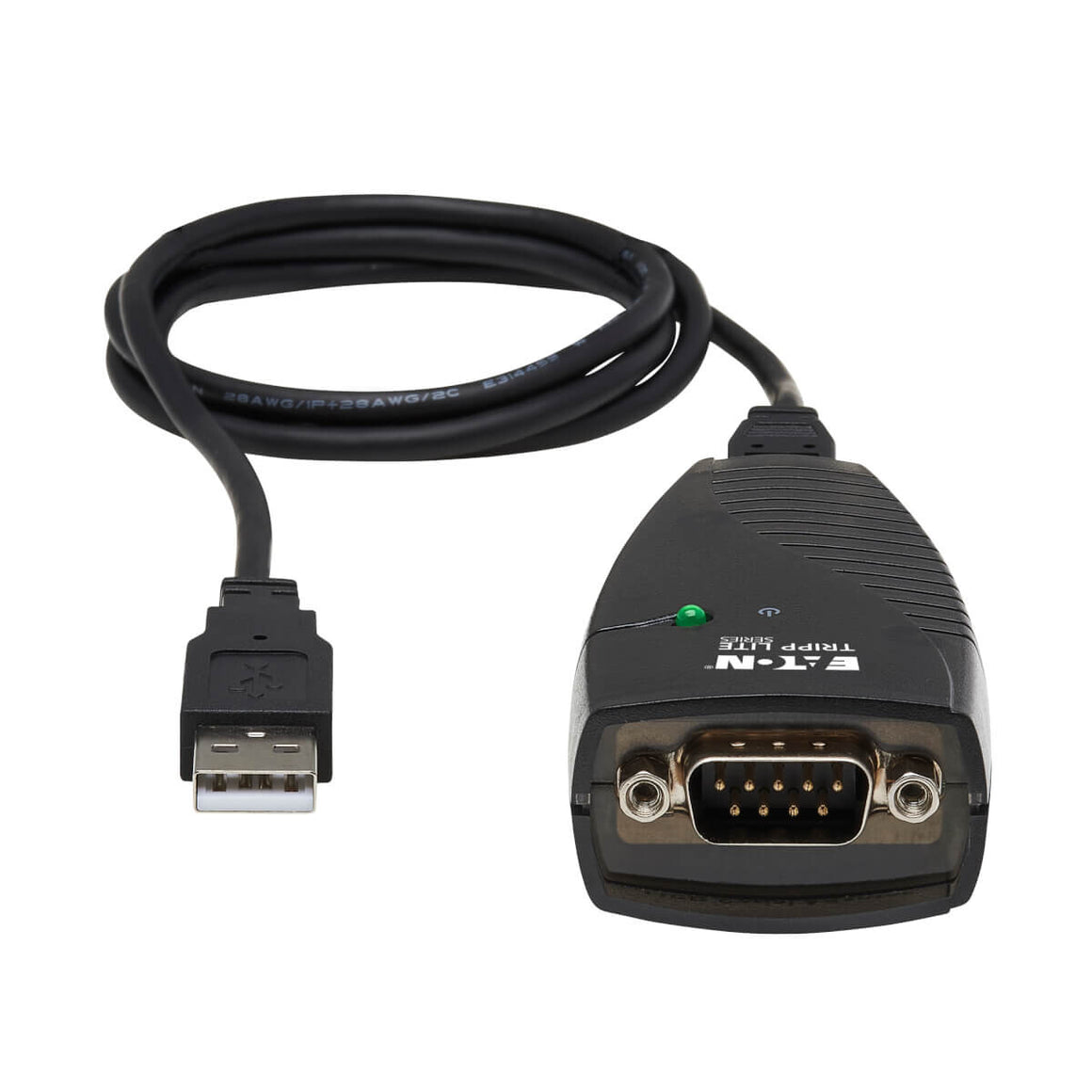

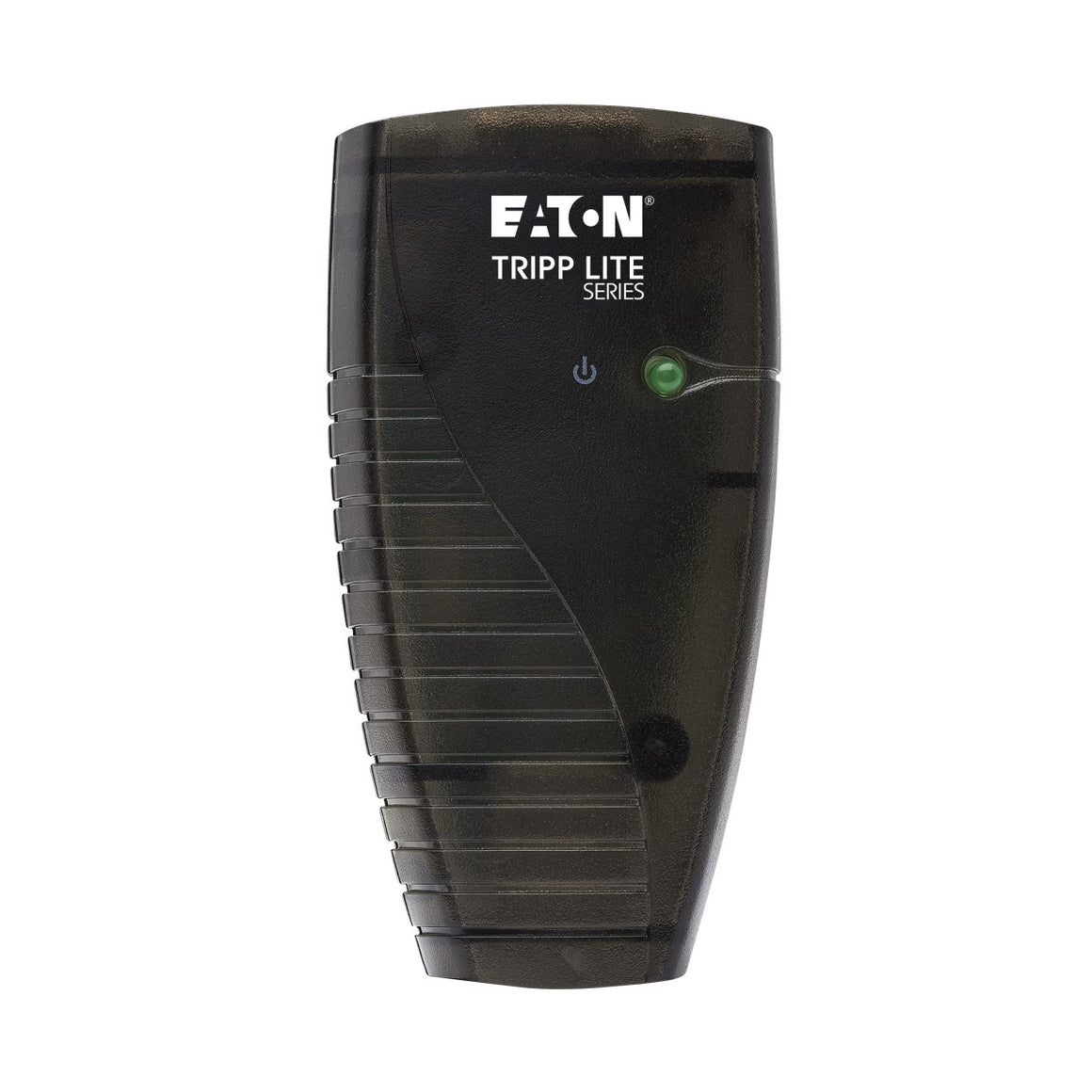

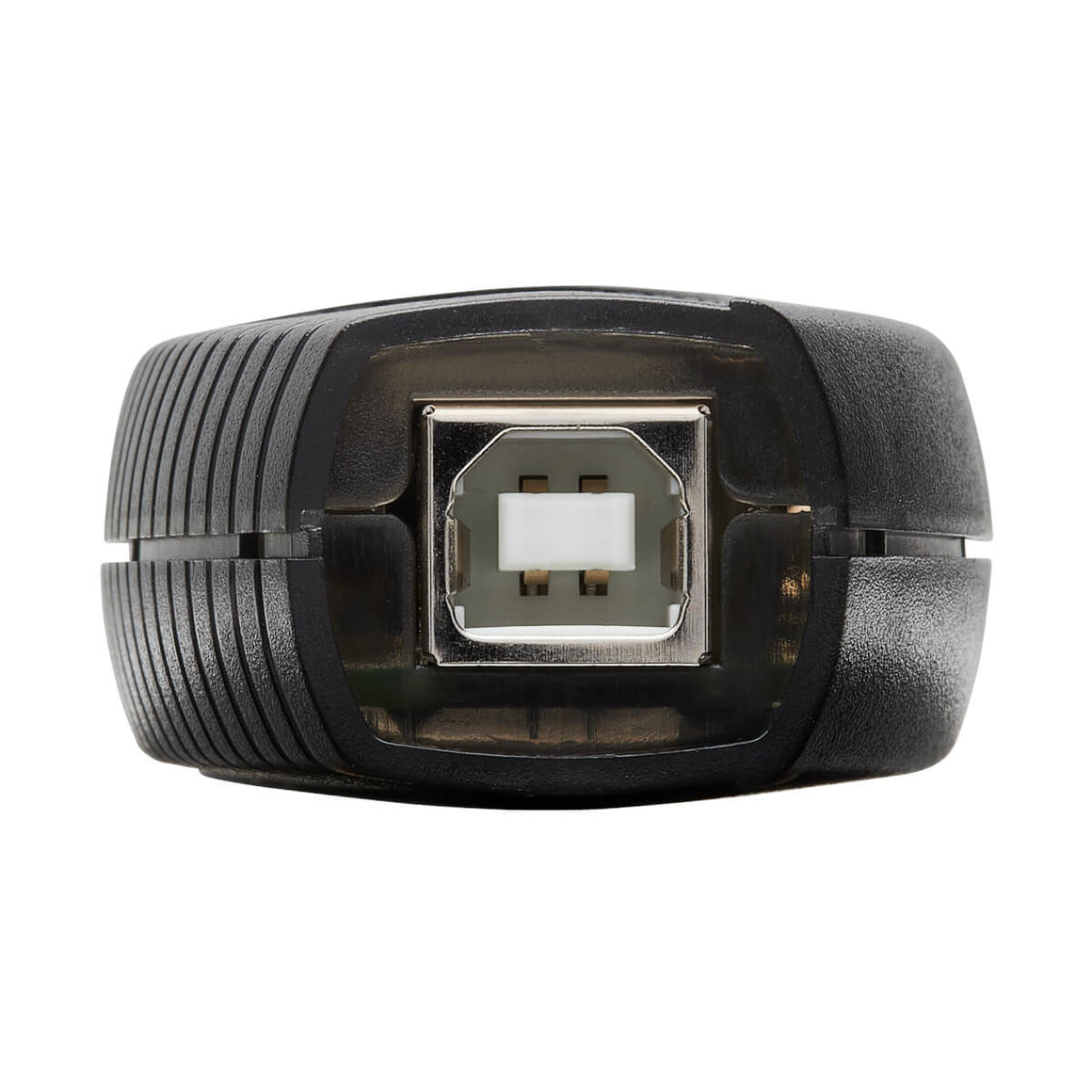

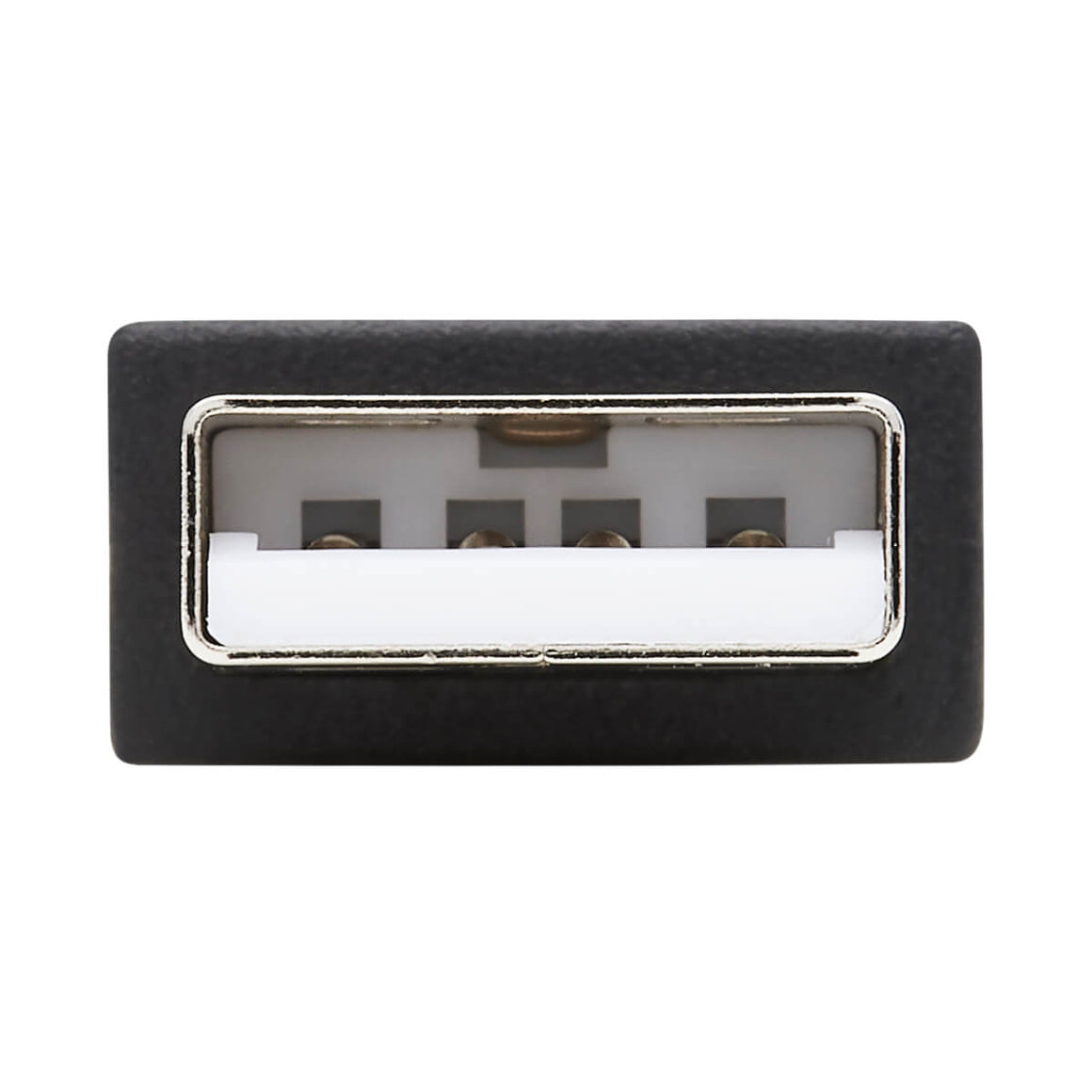

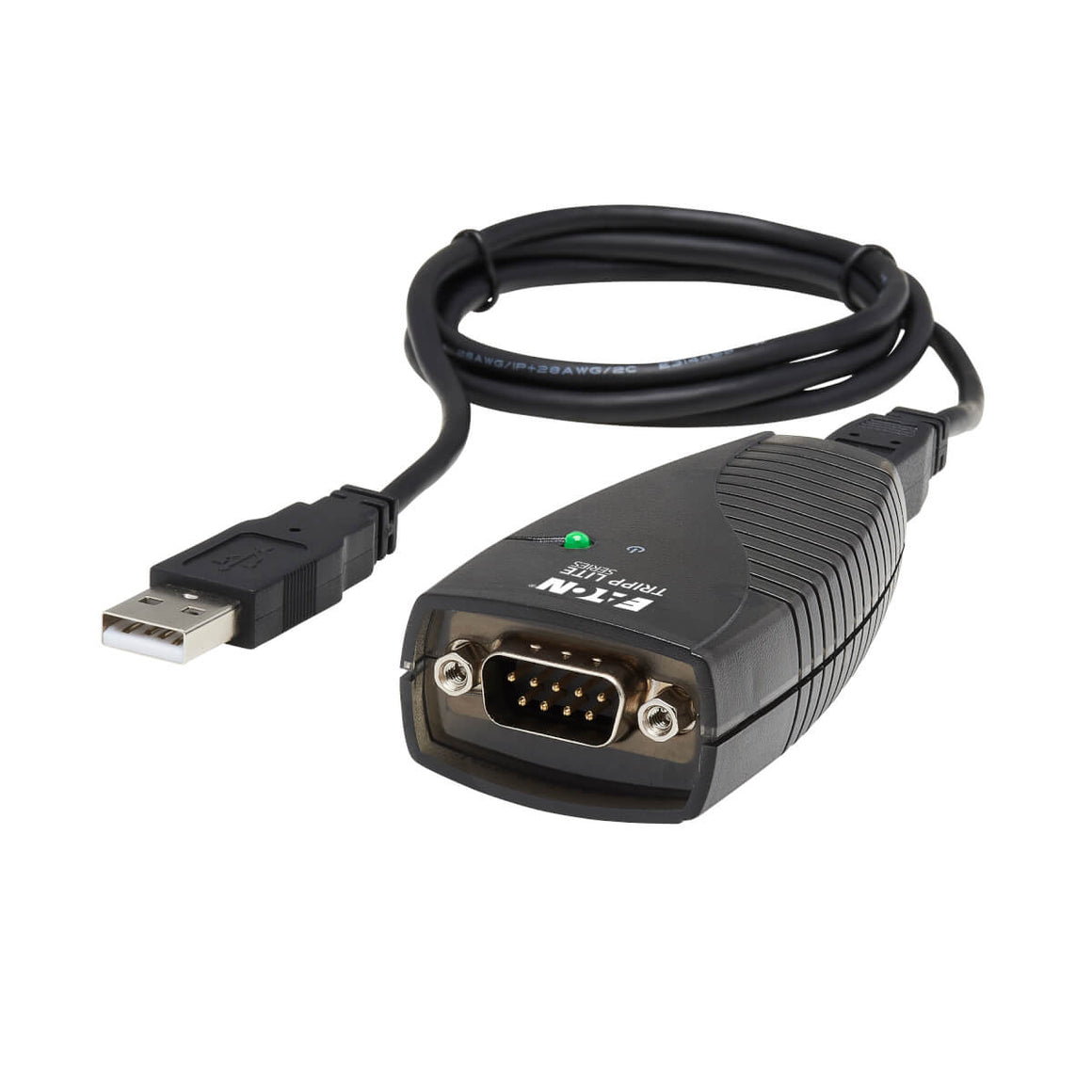

No external power supply is needed and only one connection is required. Simply connect the included three-foot (0.9-meter) USB cable between the unit's USB-B port and your computer's USB-A port. The unit is compatible with any USB cable up to 16 feet (4.9 meters). A green LED indicates data activity at a glance. The unit weighs only 2 ounces for convenient transport in a backpack or laptop bag.
Compatible with Major Operating Systems
Works with Microsoft Windows (up to Windows 11) and macOS X (up to Ventura 13.3.1), and includes Windows line monitor and data trace software. The unit supports both 32-bit and 64-bit systems and has continuously updated drivers available for download on the unit's Technical Support page.
TAA-Compliant for GSA Schedule Purchases
The USA-19HS is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| Ports & interfaces |
| Connector(s) |
USB A, DB9 |
| Serial interface type |
RS-232 |
| Serial ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Output interface |
Serial |
| Host interface |
USB |
| Design |
| Certification |
REACH, CE, FCC |
| Country of origin |
Taiwan |
| Product colour |
Black |
| Internal |
No |
| Features |
| Plug and Play |
Yes |
| Baud rate |
230 Kbit/s |
| Technical details |
| Master (outer) case GTIN (EAN/UPC) |
10037332144239 |
| Compliance certificates |
RoHS |
| System requirements |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Height |
25.4 mm |
| Depth |
78.7 mm |
| Width |
40.6 mm |
| Packaging data |
| Package weight |
180 g |
| Package height |
76.2 mm |
| Package depth |
152.4 mm |
| Package width |
228.6 mm |
| Drivers included |
Yes |
| Cables included |
USB |
| Logistics data |
| Master (outer) case gross weight |
3.67 kg |
| Master (outer) case height |
177.8 mm |
| Master (outer) case length |
502.9 mm |
| Master (outer) case width |
299.7 mm |
| Products per master (outer) case |
20 pc(s) |
| Harmonized System (HS) code |
84733020 |
